Tractor · 2001Unverified

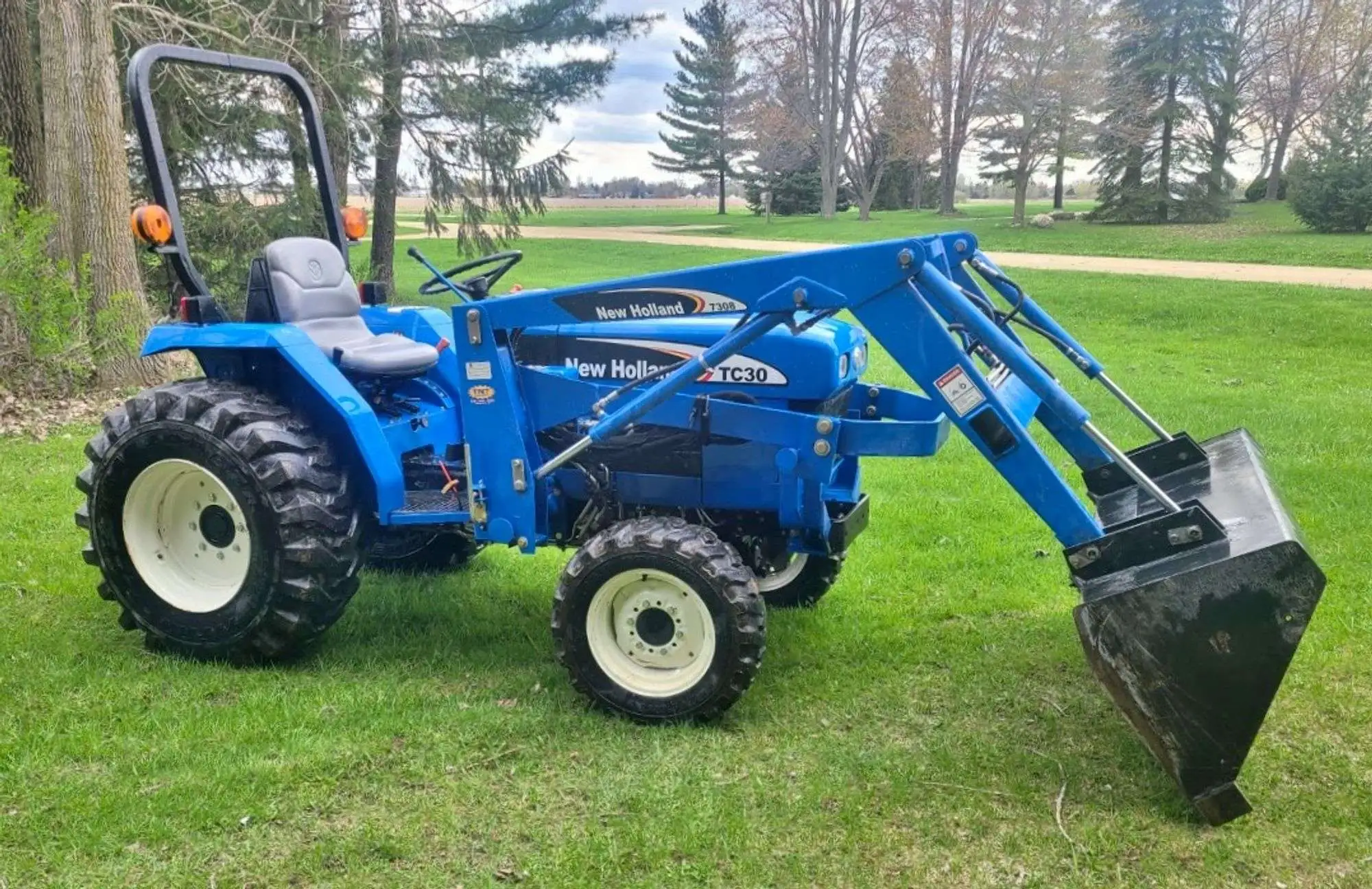

New Holland TC30
New Holland TC30 — Compact Utility tractor · 26 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
26 hp
Weight
994 kg
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Final drivesspur gearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Shibaura 1.5L 3-cyl dieselReference
Fuel tank26.9 LReference
Engine22.4 kWReference
Shibaura N843Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Power22.4 kWReference
Rated RPM2600Reference
Starter volts12Reference
Transmission
9-speed gearReference
hydrostaticReference
TypegearReference
Gears9 forward and 3 reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
Gear PTO (claimed)19.0 kWReference
Hydrostatic PTO (claimed)17.9 kWReference
Typeopen centerReference
Pump flow23.1 lpmReference
Total flow36.3 lpmReference
Steering flow13.2 lpmReference
Rear TypeIReference
Rear lift (at 24"/610mm)741 kgReference
Rear PTOliveReference
Rear PTO Type540Reference
Mid PTOoptionalReference
Mid PTO Type2000Reference
Dimensions
Wheelbase160 cmReference
Weight994 kgReference
Front tire5.50-16Reference
Rear tire11.2-24Reference
Weight317 kgReference
Weight395 kgReference
Weight408 kgReference
2WD Ag front5.50-16Reference
4WD Ag front7-14Reference
Ag rear11.2-24Reference
2WD Lawn/turf front23x8.50-12Reference
4WD Lawn/turf front24x8.50-14Reference
Lawn/turf rear13.6-16Reference
Length276 cmReference
Width137 cmReference
Height209 cmReference
New Holland TC30 attachments
60" mid-mount mower deckReference
72" mid-mount mower deckReference
snowblowerReference
bladeReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
60" mid-mount mower deckReference
72" mid-mount mower deckReference
SnowblowerReference
BladeReference
Front-end loaderReference
BackhoeReference
New Holland 756C Backhoe
Backhoe typeNew Holland 756C BackhoeReference
Transport height173 cmReference
2-Foot flat digging depth182 cmReference
8-Foot flat digging depth142 cmReference
Reach from pivot271 cmReference
Loading height144 cmReference
Bucket Rotation171°Reference
Swing Arc180°Reference
Bucket force1304 kgReference
Dipperstick force796 kgReference
New Holland 757C Backhoe
Backhoe typeNew Holland 757C BackhoeReference
Transport height190 cmReference
2-Foot flat digging depth228 cmReference
8-Foot flat digging depth198 cmReference
Reach from pivot302 cmReference
Loading height167 cmReference
Bucket Rotation170°Reference
Swing Arc180°Reference
Bucket force1213 kgReference
Dipperstick force954 kgReference
New Holland 758C Backhoe
Backhoe typeNew Holland 758C BackhoeReference
Transport height205 cmReference
2-Foot flat digging depth259 cmReference
8-Foot flat digging depth210 cmReference
Reach from pivot335 cmReference
Loading height193 cmReference
Bucket Rotation170°Reference
Swing Arc180°Reference
Bucket force1610 kgReference
Dipperstick force1009 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
