Tractor · 2005Unverified

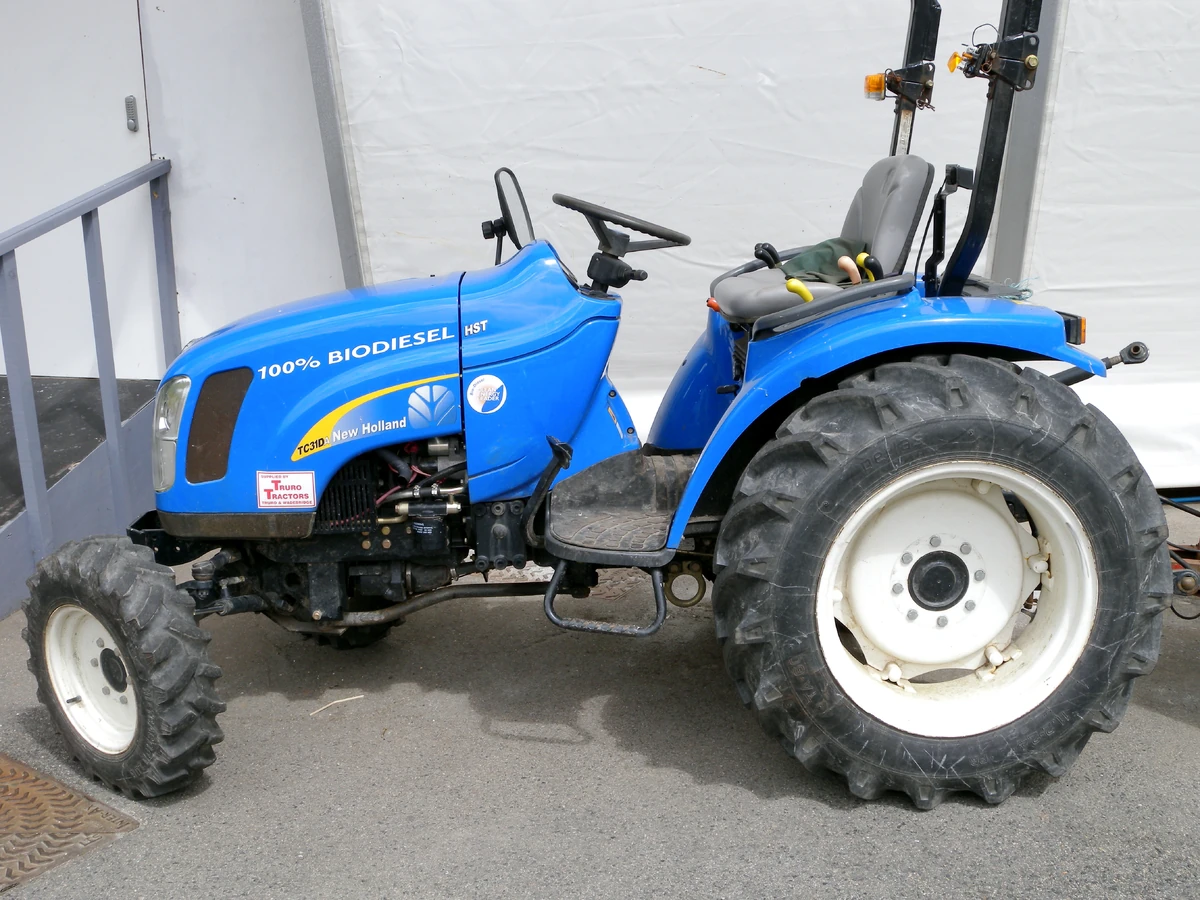

New Holland TC31DA

Name: New Holland TC31DA
Brand: New Holland

New Holland TC31DA — Boomer TC-A Series · 25 hp. Reference specifications; pending source verification.

The New Holland TC31DA is a compact tractor model with a rated output of 25 hp, produced from 2005 to 2008. It features a 3-cylinder diesel liquid-cooled engine, paired with a hydrostatic transmission driving four-wheel drive. The tractor's listed weight is 1122 kg, and it is suitable for tasks of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

25 hp

Weight

1122 kg

Catalogue coverage

Variants represented

Richest spec table

44 rows

Recorded power

25 hp

Recorded weight

1122 kg

Transmissions

hydrostatic

Production years

2005-2008

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Two-post ROPS.Reference

Variants

DX31similar CaseIH modelReference

Engine

Shibaura 1.5L 3-cyl dieselReference

Fuel tank27.6 LReference

Engine23.1 kWReference

Shibaura N843Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.5 LReference

Bore/Stroke84 x 90 mmReference

Power23.1 kWReference

Rated RPM2600Reference

Starter volts12Reference

Transmission

hydrostaticReference

9-speed gearReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

TypegearReference

Gears9 forward and 3 reverseReference

PTO & Hydraulics

Hydro PTO (claimed)18.6 kWReference

Gear PTO (claimed)19.8 kWReference

Typeopen centerReference

Pump flow27.3 lpmReference

Total flow46.6 lpmReference

Steering flow19.3 lpmReference

Rear TypeIReference

Rear lift (at 24"/610mm)741 kgReference

Rear PTO Type540Reference

Mid PTOoptionalReference

Mid PTOstandard with hydroReference

Dimensions

Wheelbase160 cmReference

Wheelbase182 cmReference

Weight1122 kgReference

Length269 cmReference

Length292 cmReference

Width137 cmReference

Height (ROPS)223 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
