Tractor · 2003Unverified

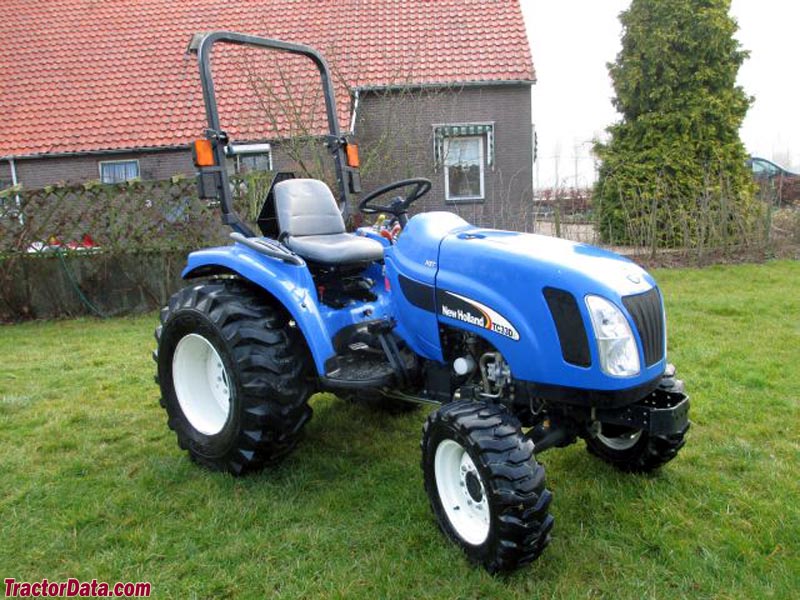

New Holland TC33DA

Name: New Holland TC33DA
Brand: New Holland

New Holland TC33DA — Boomer TC-A Series · 33 hp. Reference specifications; pending source verification.

The New Holland TC33DA is a tractor with a rated output of 33 hp, positioning it within the lighter weight category. It was manufactured from 2003 to 2005 and features a 3-cylinder diesel liquid-cooled engine, coupled with a four-wheel drive system and hydrostatic transmission. The tractor's operating weight is 1122 kg, and it is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

33 hp

Weight

1122 kg

Catalogue coverage

Variants represented

Richest spec table

94 rows

Recorded power

33 hp

Recorded weight

1122 kg

Transmissions

9-speed gear

Production years

2003-2005

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew Holland (a part of CNH)Reference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Two-post folding ROPS.Reference

Variants

Farmall DX33similar CaseIH modelReference

Engine

Shibaura 1.5L 3-cyl dieselReference

Fuel tank27.6 LReference

Engine (gross)24.6 kWReference

Shibaura N843Reference

dieselReference

3-cylinderReference

liquid-cooled inlineReference

Displacement1.5 LReference

Bore/Stroke84 x 90 mmReference

Power (gross)24.6 kWReference

Rated RPM2800Reference

StarterelectricReference

Starter volts12Reference

Transmission

9-speed gearReference

hydrostaticReference

TypegearReference

Gears9 forward and 3 reverseReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

PTO & Hydraulics

Gear PTO (claimed)21.3 kWReference

Hydro PTO (claimed)20.1 kWReference

Typeopen centerReference

Pump flow28.8 lpmReference

Steering flow19.3 lpmReference

Rear TypeIReference

Rear lift (at 24"/610mm)741 kgReference

Gear Rear PTOtransmisionReference

Hydro Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Gear Mid PTOtransmisionReference

Hydro Mid PTOindependentReference

Mid PTO Type2000 (1.0)Reference

Dimensions

Wheelbase160 cmReference

SuperSteer Wheelbase182 cmReference

Weight1122 kgReference

Weight317 kgReference

Weight395 kgReference

Weight408 kgReference

Length269 cmReference

SuperSteer Length292 cmReference

Width137 cmReference

Height (ROPS)223 cmReference

New Holland TC33DA attachments

60" mid-mount mower deckReference

72" mid-mount mower deckReference

snowblowerReference

bladeReference

front-end loaderReference

backhoeReference

TC33DA Serial Number Location

Serial number plate on the left side of the transmission housing.Reference

Electrical

GroundnegativeReference

Battery volts12Reference

Attachment overview

60" mid-mount mower deckReference

72" mid-mount mower deckReference

SnowblowerReference

BladeReference

New Holland 14LA loaderReference

New Holland 15LA loaderReference

BackhoeReference

New Holland 756C Backhoe

Backhoe typeNew Holland 756C BackhoeReference

Transport height173 cmReference

2-Foot flat digging depth182 cmReference

8-Foot flat digging depth142 cmReference

Reach from pivot271 cmReference

Loading height144 cmReference

Bucket Rotation171°Reference

Swing Arc180°Reference

Bucket force1304 kgReference

Dipperstick force796 kgReference

New Holland 757C Backhoe

Backhoe typeNew Holland 757C BackhoeReference

Transport height190 cmReference

2-Foot flat digging depth228 cmReference

8-Foot flat digging depth198 cmReference

Reach from pivot302 cmReference

Loading height167 cmReference

Bucket Rotation170°Reference

Swing Arc180°Reference

Bucket force1213 kgReference

Dipperstick force954 kgReference

New Holland 758C Backhoe

Backhoe typeNew Holland 758C BackhoeReference

Transport height205 cmReference

2-Foot flat digging depth259 cmReference

8-Foot flat digging depth210 cmReference

Reach from pivot335 cmReference

Loading height193 cmReference

Bucket Rotation170°Reference

Swing Arc180°Reference

Bucket force1610 kgReference

Dipperstick force1009 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
