Tractor · 2005Unverified

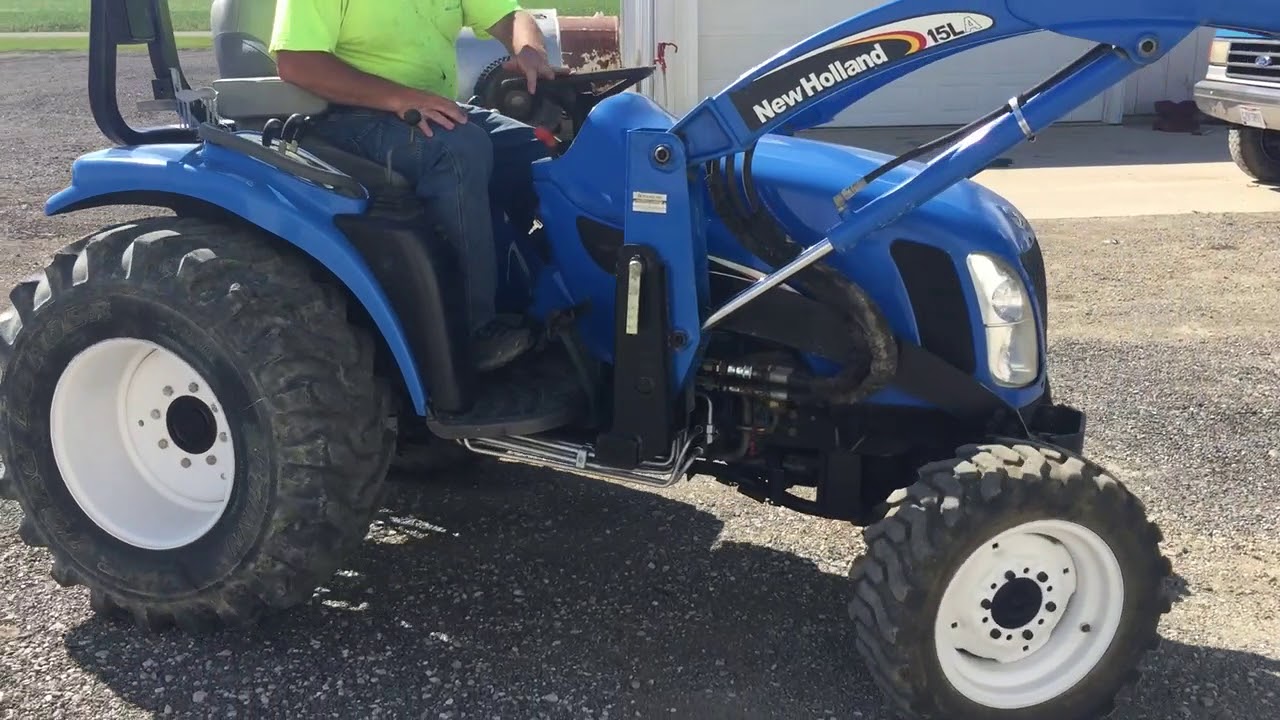

New Holland TC34DA
New Holland TC34DA — Boomer TC-A Series · 29 hp. Reference specifications; pending source verification.
The New Holland TC34DA tractor model has an engine rating of approximately 29 hp, positioning it in the lighter category within its class. It was produced from 2005 to 2008. The tractor features a 3-cylinder diesel liquid-cooled engine paired with four-wheel drive and a hydrostatic transmission. Its listed operating weight is 1140 kg and is suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
29 hp
Weight
1140 kg
Catalogue coverage
Variants represented
2
Richest spec table
39 rows
Recorded power
29 hp
Recorded weight
1140 kg
Transmissions
hydrostatic
Production years
2005-2008
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Two-post ROPS.Reference
Variants
DX34similar CaseIH modelReference
Engine
Shibaura 1.7L 3-cyl dieselReference
Fuel tank27.6 LReference
Engine26.1 kWReference
Shibaura N843LReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.7 LReference
Bore/Stroke84 x 100 mmReference
Power26.1 kWReference
Rated RPM2600Reference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
PTO (claimed)21.6 kWReference
Typeopen centerReference
Pump flow27.3 lpmReference
Total flow46.6 lpmReference
Steering flow19.3 lpmReference
Rear TypeIReference
Rear lift (at 24"/610mm)741 kgReference
Rear PTO Type540Reference
Mid PTOstandardReference
Dimensions
Wheelbase160 cmReference
Wheelbase182 cmReference
Weight1140 kgReference
Length269 cmReference
Length292 cmReference
Width137 cmReference
Height (ROPS)223 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
