Tractor · 2003Unverified

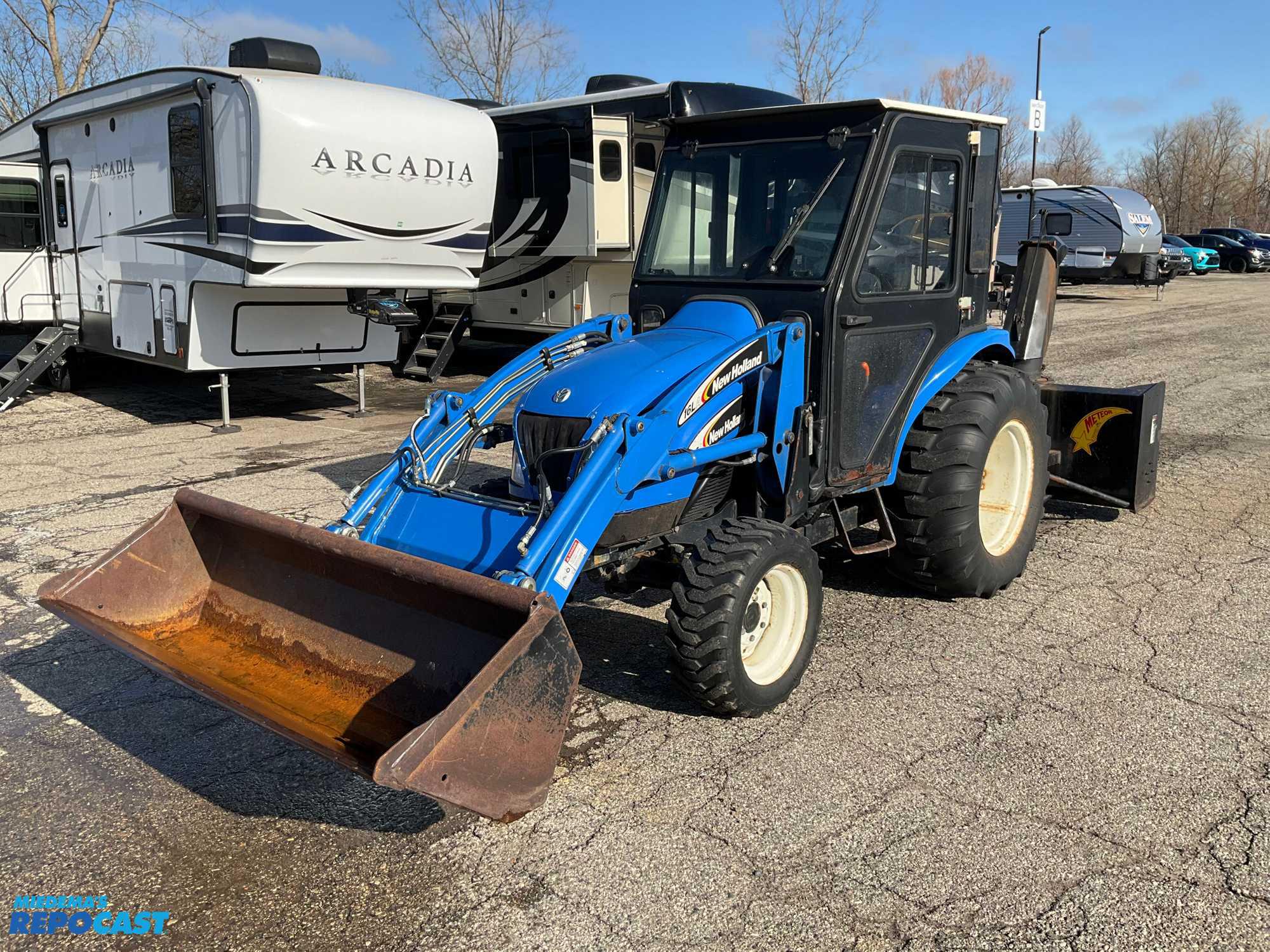

New Holland TC35A

Name: New Holland TC35A
Brand: New Holland

New Holland TC35A — Boomer TC-A Series · 35 hp. Reference specifications; pending source verification.

The New Holland TC35A is a compact tractor with a rated output of 35 hp. It was manufactured from 2003 to 2005 and is equipped with a 3-cylinder diesel liquid-cooled engine. The tractor features four-wheel drive and a hydrostatic transmission, with a listed weight of 2784 to 2953 pounds. It is designed for use on plots of around 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

35 hp

Weight

2784 to 2953 pounds

Catalogue coverage

Variants represented

Richest spec table

128 rows

Recorded power

35 hp

Recorded weight

351 kg

Transmissions

12-speed synchronized shuttle

Production years

2003-2005

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Compact Utility tractorReference

Original price$11,814 (2003 TC35A)Reference

Original price$13,323 (2003 TC35DA)Reference

The deluxe model TC35DA came with a hydrostatic transmission and 4WD as standard equipment. SuperSteer was optional on the TC35DA. The TC35DA also featured a telescoping steering column, weight-adjustable suspension seat, and flexible three-point link ends.Reference

Two- or four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Wet disc brakesReference

Two-post ROPS. Folding ROPS standard on TC35DA.Reference

Variants

TC35Abase modelReference

TC35DAdeluxe modelReference

Engine

Shibaura 1.7L 3-cyl dieselReference

Engine (gross)26.1 kWReference

Engine (net)25.0 kWReference

Shibaura N843LReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.7 LReference

Bore/Stroke84 x 100 mmReference

Power (net)25.0 kWReference

Power (gross)26.1 kWReference

Air cleanerdual dry elementReference

Pre-heatingglow plugsReference

Compression22.5:1Reference

Rated RPM2600Reference

Firing order1-2-3Reference

Starter volts12Reference

Oil capacity5.8 LReference

Coolant capacity7.4 LReference

Transmission

12-speed synchronized shuttleReference

hydrostaticReference

TransmissionSynchronized Shuttle ShiftReference

Typesynchronized shuttleReference

Gears12 forward and reverseReference

TransmissionDualPowerReference

TypehydrostaticReference

Gearsinfinite forward and reverse (4-range)Reference

Oil capacity36.0 LReference

Two-speed push-button power shift (low/high pump displacement) on a two-range hydrostatic transmission (I/II), available on the TC35DA.Reference

PTO & Hydraulics

Gear PTO (claimed)22.1 kWReference

Hydro PTO (claimed)21.7 kWReference

Typeopen centerReference

Pressure156.9 barReference

Rear valves3Reference

Mid valves2Reference

Pump flow37.1 lpmReference

Steering flow19.4 lpmReference

Steering cap.1.4 LReference

Rear TypeIReference

Controlposition with optional top-link draft controlReference

Rear lift (at 24"/610mm)918 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2400Reference

Mid PTOindependentReference

Mid PTO Type2000 (1.0)Reference

Engine RPM2420@2000Reference

Capacities

Fuel49.2 LReference

Steering1.4 LReference

Dimensions

4WD Wheelbase186 cmReference

SuperSteer Wheelbase205 cmReference

Weight2784 to 2953 poundsReference

Front tire7x16Reference

Rear tire13.6x24Reference

Weight351 kgReference

Weight395 kgReference

Weight408 kgReference

Ag front7x16Reference

Ag front8x16Reference

Ag rear13.6x24Reference

Lawn/turf front27x8.5-15Reference

Lawn/turf rear44x18-20Reference

Industrial front10x16.5Reference

Industrial rear17.5x24Reference

Length318 cmReference

SuperSteer Length328 cmReference

Width169 cmReference

Height (hood)152 cmReference

Height (ROPS)242 cmReference

4WD Weight1262 kgReference

SuperSteer Weight1339 kgReference

Front tread117 cmReference

Rear tread119 to 171 cmReference

New Holland TC35A attachments

84" mid-mount mower deckReference

snowblowerReference

bladeReference

front-end loaderReference

backhoeReference

TC35A Serial Number Location

Serial number plate on the left side of the transmission housing.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps40Reference

Battery CCA600Reference

Battery volts12Reference

Attachment overview

84" mid-mount mower deckReference

SnowblowerReference

BladeReference

New Holland 16LA loaderReference

New Holland 17LA loaderReference

BackhoeReference

84" Mower deck

Typemid-mount New Holland 914A-84Reference

Type4-blade with hydraulic liftReference

Cutting width213 cmReference

Overall width221 cmReference

Cut height5 to 10 cmReference

New Holland 757C Backhoe

Backhoe typeNew Holland 757C BackhoeReference

Transport height190 cmReference

2-Foot flat digging depth228 cmReference

8-Foot flat digging depth198 cmReference

Reach from pivot302 cmReference

Loading height167 cmReference

Bucket Rotation170°Reference

Swing Arc180°Reference

Bucket force1213 kgReference

Dipperstick force954 kgReference

New Holland 758C Backhoe

Backhoe typeNew Holland 758C BackhoeReference

Transport height205 cmReference

2-Foot flat digging depth259 cmReference

8-Foot flat digging depth210 cmReference

Reach from pivot335 cmReference

Loading height193 cmReference

Bucket Rotation170°Reference

Swing Arc180°Reference

Bucket force1610 kgReference

Dipperstick force1009 kgReference

Speeds

With 13.6x24 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
