Tractor · 2003Unverified

New Holland TC40A

Name: New Holland TC40A
Brand: New Holland

New Holland TC40A — Boomer TC-A Series · 40 hp. Reference specifications; pending source verification.

The New Holland TC40A is a compact tractor with a rated output of 40 hp, making it one of the smaller options in its class. It was produced from 2003 to 2008 and features a 4-cylinder diesel liquid-cooled engine, which powers a four-wheel drive system with a hydrostatic transmission. The tractor's listed weight ranges from 2860 to 3029 pounds. It is designed for use on plots of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

40 hp

Weight

2860 to 3029 pounds

Catalogue coverage

Variants represented

Richest spec table

123 rows

Recorded power

40 hp

Recorded weight

351 kg

Transmissions

12-speed synchronized shuttle

Production years

2003-2008

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Compact Utility tractorReference

Two- or four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS.Reference

Variants

TC40Abase modelReference

TC40DAdeluxe modelReference

Engine

Shibaura 2.0L 4-cyl dieselReference

Engine (gross)29.8 kWReference

Shibaura N844Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.0 LReference

Bore/Stroke84 x 90 mmReference

Power (gross)29.8 kWReference

Air cleanerdual dry elementReference

Compression22.5:1Reference

Rated RPM2600Reference

Idle RPM1025-2855Reference

Firing order1-3-4-2Reference

Starter volts12Reference

Oil capacity6.0 LReference

Coolant capacity7.9 LReference

Transmission

12-speed synchronized shuttleReference

hydrostaticReference

TransmissionSynchronized Shuttle ShiftReference

Typesynchronized shuttleReference

Gears12 forward and reverseReference

TransmissionDualPowerReference

TypehydrostaticReference

Gearsinfinite forward and reverse (4-range)Reference

Oil capacity36.0 LReference

Two-speed push-button power shift (low/high pump displacement) on a two-range hydrostatic transmission (I/II), available on the TC40DA.Reference

PTO & Hydraulics

TC40A PTO (claimed)26.1 kWReference

TC40DA PTO (claimed)24.8 kWReference

Typeopen centerReference

Pressure172.4 barReference

Rear valves3Reference

Mid valves2Reference

Pump flow37.1 lpmReference

Steering flow19.4 lpmReference

Steering cap.1.4 LReference

Rear TypeIReference

Controlposition with optional top-link draft controlReference

Rear lift (at 24"/610mm)1056 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2400Reference

Mid PTOindependentReference

Mid PTO Type2000 (1.0)Reference

Engine RPM2420@2000Reference

Capacities

Fuel49.2 LReference

Steering1.4 LReference

Dimensions

4WD Wheelbase186 cmReference

SuperSteer Wheelbase205 cmReference

Weight2860 to 3029 poundsReference

Front tire7x16Reference

Rear tire13.6x24Reference

Weight351 kgReference

Weight395 kgReference

Weight408 kgReference

Ag front7x16Reference

Ag front8x16Reference

Ag rear13.6x24Reference

Lawn/turf front27x8.5-15Reference

Lawn/turf rear44x18-20Reference

Industrial front10x16.5Reference

Industrial rear17.5x24Reference

Length318 cmReference

SuperSteer Length328 cmReference

Width169 cmReference

Height (hood)152 cmReference

Height (ROPS)242 cmReference

4WD Weight1297 kgReference

SuperSteer Weight1373 kgReference

Front tread117 cmReference

Rear tread119 to 171 cmReference

New Holland TC40A attachments

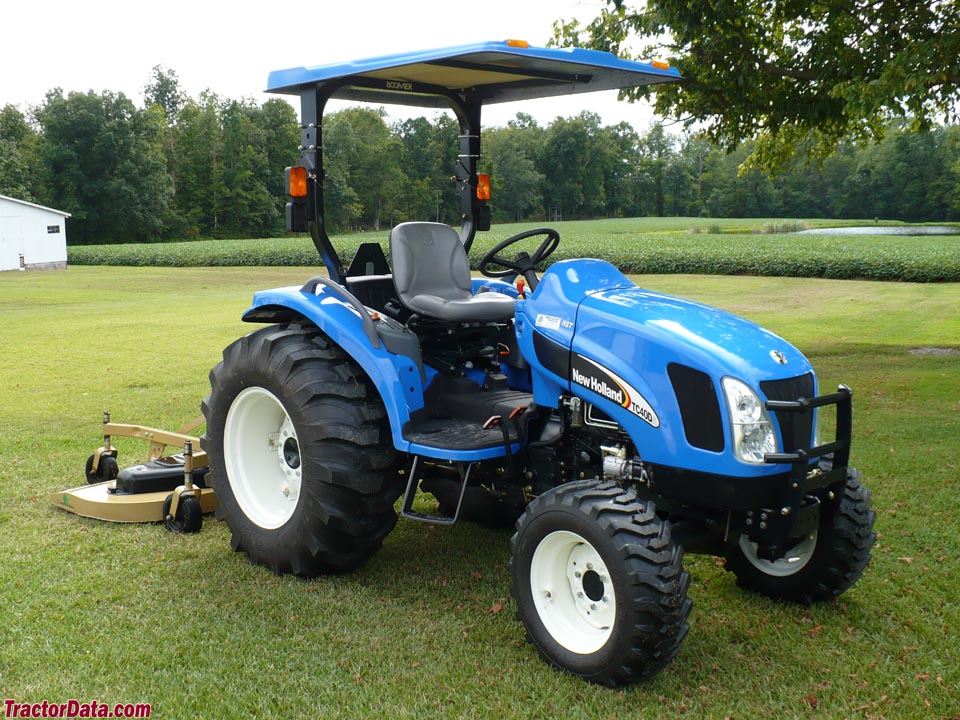

84" mid-mount mower deckReference

snowblowerReference

bladeReference

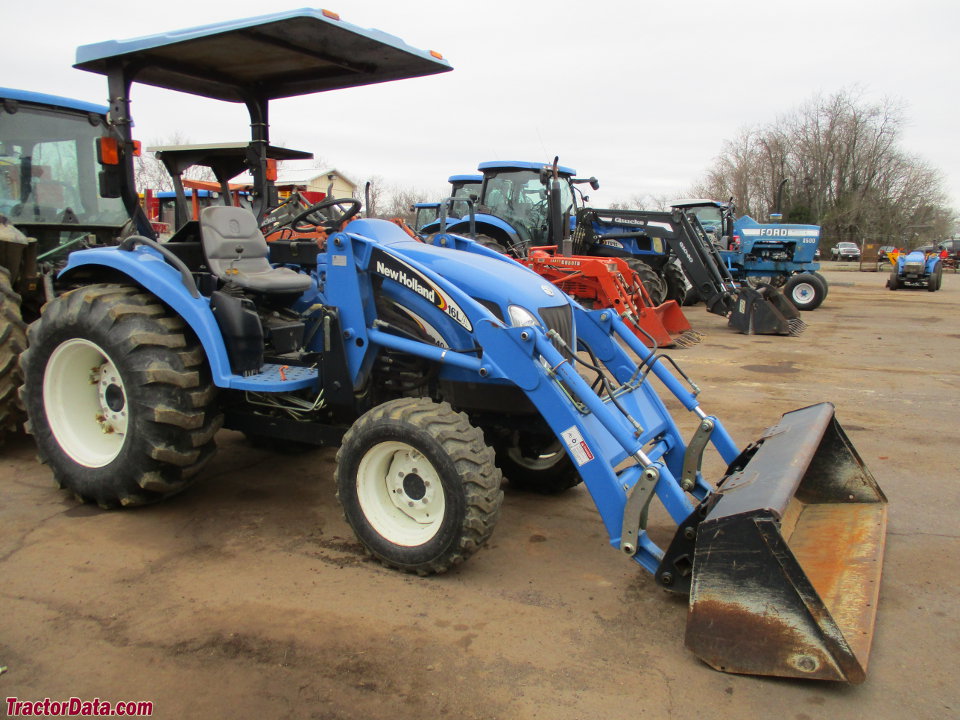

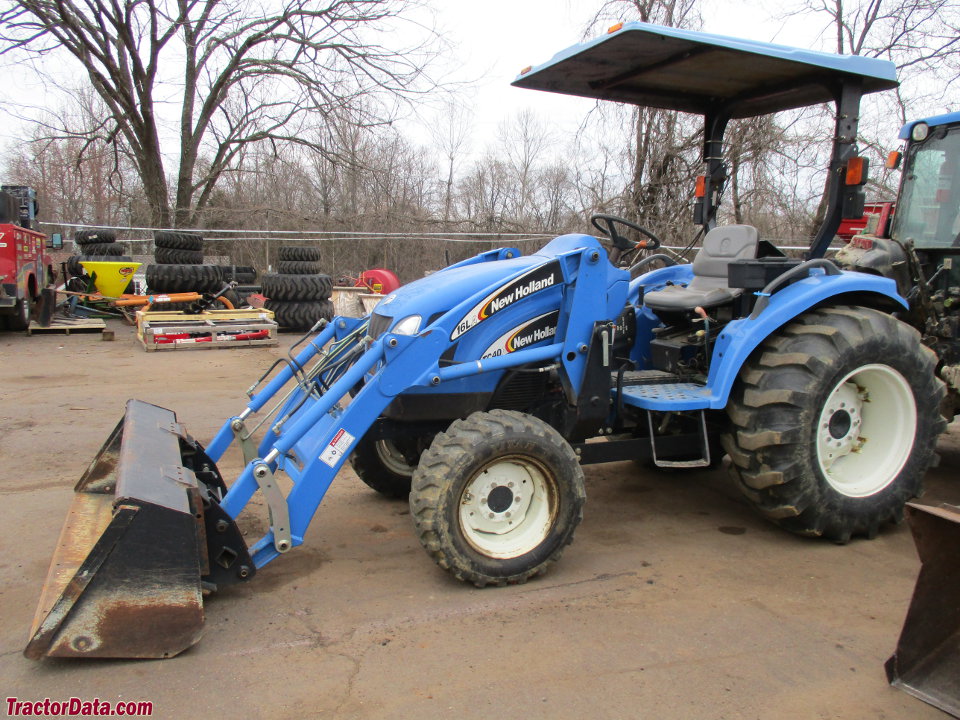

front-end loaderReference

backhoeReference

TC40A Serial Number Location

Serial number plate on the left side of the transmission housing.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps40Reference

Battery CCA600Reference

Battery volts12Reference

Attachment overview

84" mid-mount mower deckReference

SnowblowerReference

BladeReference

New Holland 16LA loaderReference

New Holland 17LA loaderReference

BackhoeReference

84" Mower deck

Typemid-mount New Holland 914A-84Reference

Type4-blade with hydraulic liftReference

Cutting width213 cmReference

Overall width221 cmReference

Cut height5 to 10 cmReference

New Holland 757C Backhoe

Backhoe typeNew Holland 757C BackhoeReference

Transport height190 cmReference

2-Foot flat digging depth228 cmReference

8-Foot flat digging depth198 cmReference

Reach from pivot302 cmReference

Loading height167 cmReference

Bucket Rotation170°Reference

Swing Arc180°Reference

Bucket force1213 kgReference

Dipperstick force954 kgReference

New Holland 758C Backhoe

Backhoe typeNew Holland 758C BackhoeReference

Transport height205 cmReference

2-Foot flat digging depth259 cmReference

8-Foot flat digging depth210 cmReference

Reach from pivot335 cmReference

Loading height193 cmReference

Bucket Rotation170°Reference

Swing Arc180°Reference

Bucket force1610 kgReference

Dipperstick force1009 kgReference

Speeds

With 13.6x24 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
