Tractor · 2003Unverified

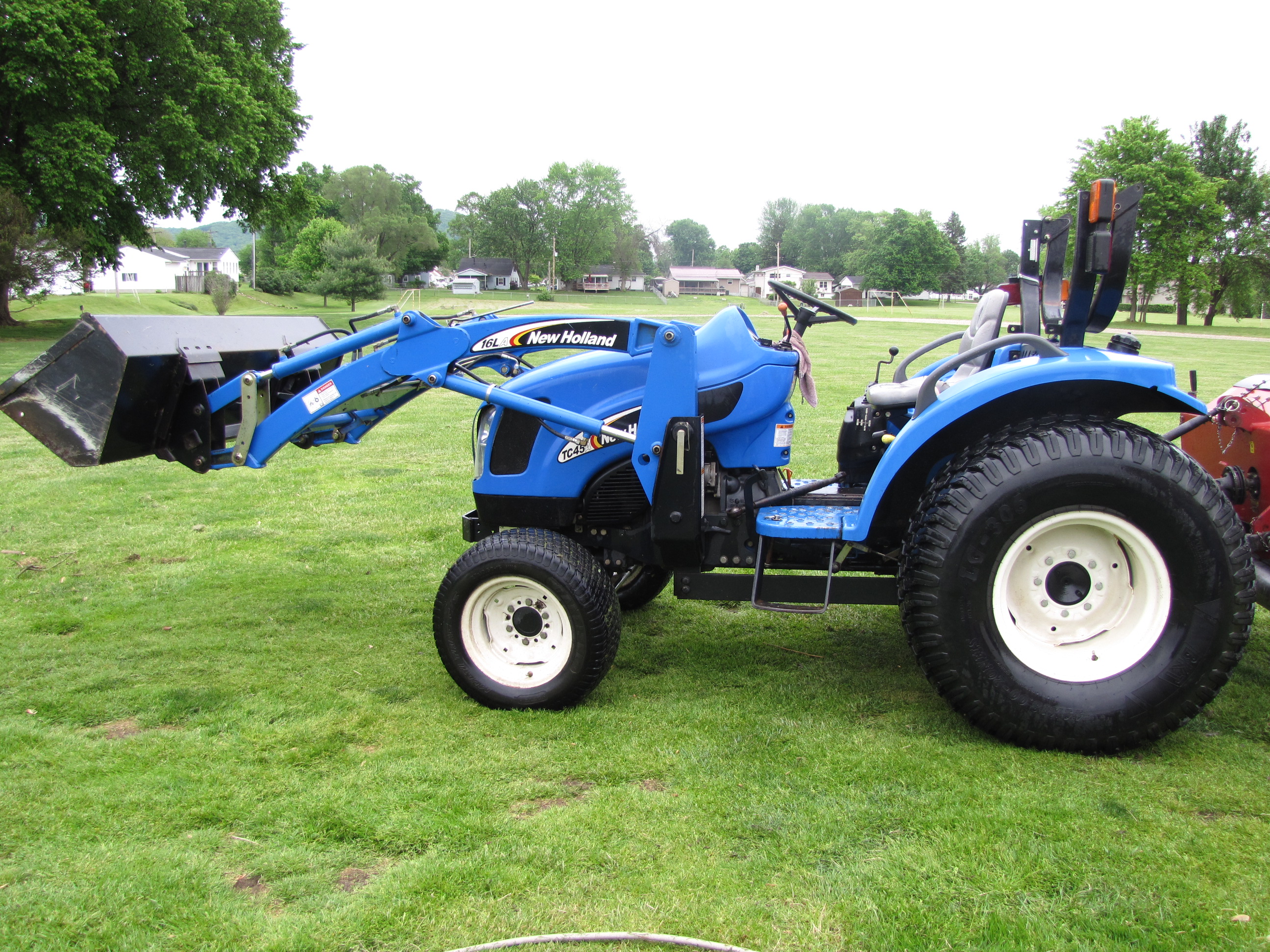

New Holland TC45A
New Holland TC45A — Boomer TC-A Series · 45 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
45 hp
Weight
2949 to 3118 pounds
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Variants
TC45Abase modelReference
TC45DAdeluxe modelReference
Engine
Shibaura 2.2L 4-cyl dieselReference
Engine (gross)33.6 kWReference
Shibaura N844LReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke84 x 100 mmReference
Power (gross)33.6 kWReference
Air cleanerdual dry elementReference
Compression22.5:1Reference
Rated RPM2600Reference
Idle RPM1025-2600Reference
Firing order1-3-4-2Reference
Starter volts12Reference
Oil capacity6.0 LReference
Coolant capacity7.9 LReference
Transmission
12-speed synchronized shuttleReference
hydrostaticReference
TransmissionSynchronized Shuttle ShiftReference
Typesynchronized shuttleReference
Gears12 forward and reverseReference
TransmissionDualPowerReference
TypehydrostaticReference
Gearsinfinite forward and reverse (4-range)Reference
Oil capacity36.0 LReference
Two-speed push-button power shift (low/high pump displacement) on a two-range hydrostatic transmission (I/II), available on the TC45DA.Reference
PTO & Hydraulics
TC45A PTO (claimed)29.5 kWReference
TC45DA PTO (claimed)28.9 kWReference
Typeopen centerReference
Pressure172.4 barReference
Rear valves3Reference
Mid valves2Reference
Pump flow37.1 lpmReference
Steering flow19.4 lpmReference
Steering cap.1.4 LReference
Rear TypeIReference
Controlposition with optional top-link draft controlReference
Rear lift (at 24"/610mm)1056 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2400Reference
Capacities
Fuel49.2 LReference
Steering1.4 LReference
Dimensions
4WD Wheelbase186 cmReference
SuperSteer Wheelbase205 cmReference
Weight2949 to 3118 poundsReference
Front tire7x16Reference
Rear tire13.6x24Reference
Weight351 kgReference
Weight395 kgReference
Weight408 kgReference
Ag front7x16Reference
Ag front8x16Reference
Ag rear13.6x24Reference
Lawn/turf front27x8.5-15Reference
Lawn/turf rear44x18-20Reference
Industrial front10x16.5Reference
Industrial rear17.5x24Reference
Length318 cmReference
SuperSteer Length328 cmReference
Width169 cmReference
Height (hood)152 cmReference
Height (ROPS)242 cmReference
4WD Weight1337 kgReference
SuperSteer Weight1414 kgReference
Front tread117 cmReference
Rear tread119 to 171 cmReference
New Holland TC45A attachments
84" mid-mount mower deckReference
snowblowerReference
bladeReference
front-end loaderReference
backhoeReference
TC45A Serial Number Location
Serial number plate on the left side of the transmission housing.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery CCA600Reference
Battery volts12Reference
Attachment overview
84" mid-mount mower deckReference
SnowblowerReference
BladeReference
New Holland 16LA loaderReference
New Holland 17LA loaderReference
BackhoeReference
84" Mower deck
Typemid-mount New Holland 914A-84Reference
Type4-blade with hydraulic liftReference
Cutting width213 cmReference
Overall width221 cmReference
Cut height5 to 10 cmReference
New Holland 757C Backhoe
Backhoe typeNew Holland 757C BackhoeReference
Transport height190 cmReference
2-Foot flat digging depth228 cmReference
8-Foot flat digging depth198 cmReference
Reach from pivot302 cmReference
Loading height167 cmReference
Bucket Rotation170°Reference
Swing Arc180°Reference
Bucket force1213 kgReference
Dipperstick force954 kgReference
New Holland 758C Backhoe
Backhoe typeNew Holland 758C BackhoeReference
Transport height205 cmReference
2-Foot flat digging depth259 cmReference
8-Foot flat digging depth210 cmReference
Reach from pivot335 cmReference
Loading height193 cmReference
Bucket Rotation170°Reference
Swing Arc180°Reference
Bucket force1610 kgReference
Dipperstick force1009 kgReference
Speeds
With 13.6x24 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
