Tractor · 2009Unverified

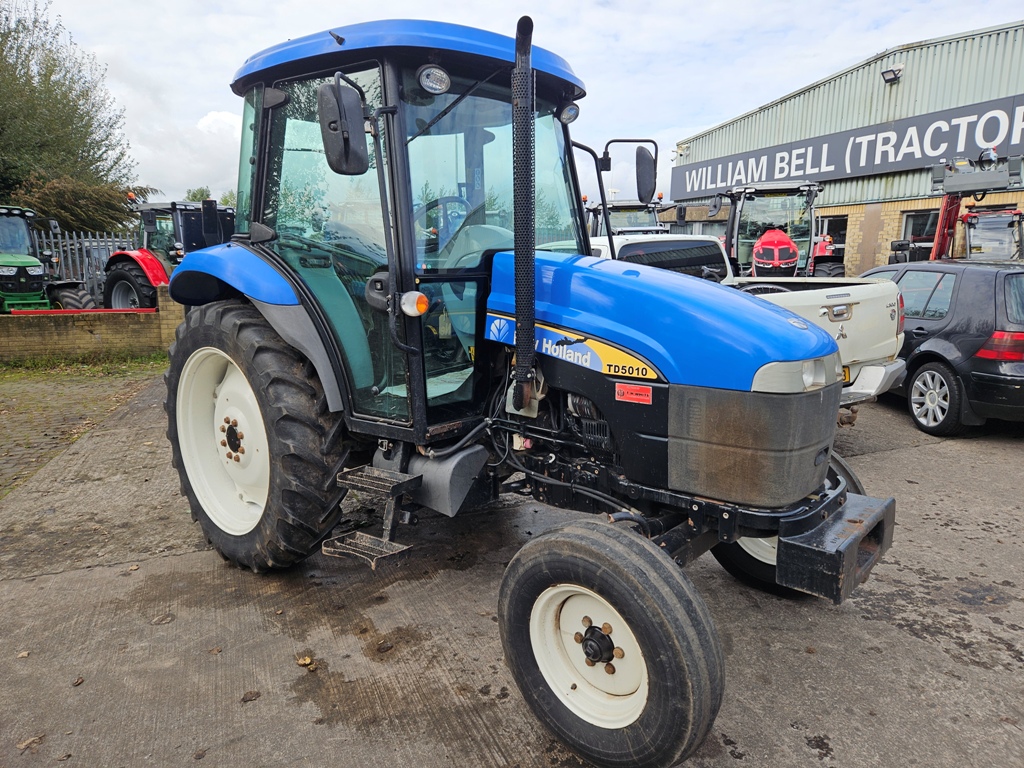

New Holland TD5010

Name: New Holland TD5010
Brand: New Holland

New Holland TD5010 — TD5000 Series · 60 hp. Reference specifications; pending source verification.

The New Holland TD5010 is a compact tractor model with a rated output of 60 hp. It was manufactured in 2009. The tractor features a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, which powers the mechanical front-wheel drive via a hydrostatic transmission. Its listed weight ranges from 5997 to 7584 pounds, making it suitable for tasks covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

60 hp

Max power

60 hp

Weight

5997 to 7584 pounds

Catalogue coverage

Variants represented

Richest spec table

98 rows

Recorded power

60 hp

Transmissions

12-speed

Production years

2009-2009

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

DistributorNew HollandReference

ManufacturerTurk TractorReference

Utility tractorReference

Built in Ankara, TurkeyReference

Drive4x2 2WDReference

Drive4x4 MFWD 4WD (optional)Reference

Differential lockoptional electro-hydraulic rear differential lock, limited slip front differentialReference

Steeringhydrostatic powerReference

Cab standard with optional air-conditioning. Optional ROPS.Reference

Engine

FPT 3.2L 4-cyl dieselReference

Fuel tank90.1 LReference

Engine (gross)44.7 kWReference

FPT F5CReference

turbocharged intercooled dieselReference

4-cylinder 8-valveReference

liquid-cooledReference

Displacement3.2 LReference

Bore/Stroke99 x 104 mmReference

EmissionsTier IIIReference

Rated Power (gross)44.7 kWReference

Air cleanerdryReference

Rated RPM2500Reference

Torque217.1 NmReference

Torque RPM1250Reference

StarterelectricReference

Starter volts12Reference

Oil change600 hReference

Fuel TypeDieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,500 RPMReference

Emissions complianceTier IIIReference

Engine torque at rated speed72.6 kgReference

Bore and stroke3.898x4.094 inchesReference

Cooling systemliquid-cooledReference

Interval for engine oil change600 hrReference

Transmission

12-speedReference

12-speed partially synchronized mechanical shuttleReference

20-speed creeperReference

TransmissionSynchro CommandReference

Gears12 forward and 4 reverseReference

TransmissionSynchro ShuttleReference

Typepartially synchronized mechanical shuttleReference

Gears12 forward and reverseReference

TransmissionSynchro Shuttle creeperReference

TypecreeperReference

Gears20 forward and 12 reverseReference

Transmission TypeGearReference

Wheel Drive2WD | 4WDReference

PTO & Hydraulics

Rear valves1 to 4Reference

Pump flow45.0 lpmReference

Pump flow61.0 lpmReference

Rear PTOindependentReference

Rear PTO Type540/540E/groundReference

Rear PTO Type540 (optional)Reference

Rear PTO Type540/1000 (optional)Reference

Dimensions

2WD Wheelbase226 cmReference

4WD Wheelbase222 cmReference

Weight5997 to 7584 poundsReference

Front tire7.50-16Reference

2WD Rear tire14.9/R30Reference

2WD Standard tires (ag)Front: 7.50-16. Rear: 14.9/R30Reference

4WD Standard tires (ag)Front: 9.5R24. Rear: 14.9/R30Reference

Length412 cmReference

Height (ROPS)265 cmReference

Height (cab)252 cmReference

Ground clearance37 cmReference

2WD Front tread141 to 191 cmReference

4WD Front tread144 to 187 cmReference

Rear tread142 to 192 cmReference

2WD ROPS Operating2720 kgReference

4WD ROPS Operating3170 kgReference

2WD cab Operating3000 kgReference

4WD cab Operating3440 kgReference

New Holland TD5010 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Capacities

Max capacity5397 kgReference

Capacity195 ciReference

General

Make & ModelNew HollandReference

Rollover protective structureSuspended platform (with ROPS)Reference

Country of manufacturerTurkeyReference

Hydraulics

Capacity Valves8 valvesReference

Remote Valves1 to 4 ValvesReference

Power

Max Power60 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Dimensions & weight

Wheelbase226.6 cmReference

Height Over Cab252.7 cmReference

Height Over ROPS265.9 cmReference

Overall Length412.5 cmReference

Wheels & tyres

Rear Wheel Type14.9/R30Reference

Rear wheel tread range56.1 to 75.79 inchesReference

Front Wheel Type7.50-16Reference

Front Wheel tread range55.83 to 75.51 inchesReference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Steering & brakes

Steering typehydrostatic powerReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
