Tractor · 2009Unverified

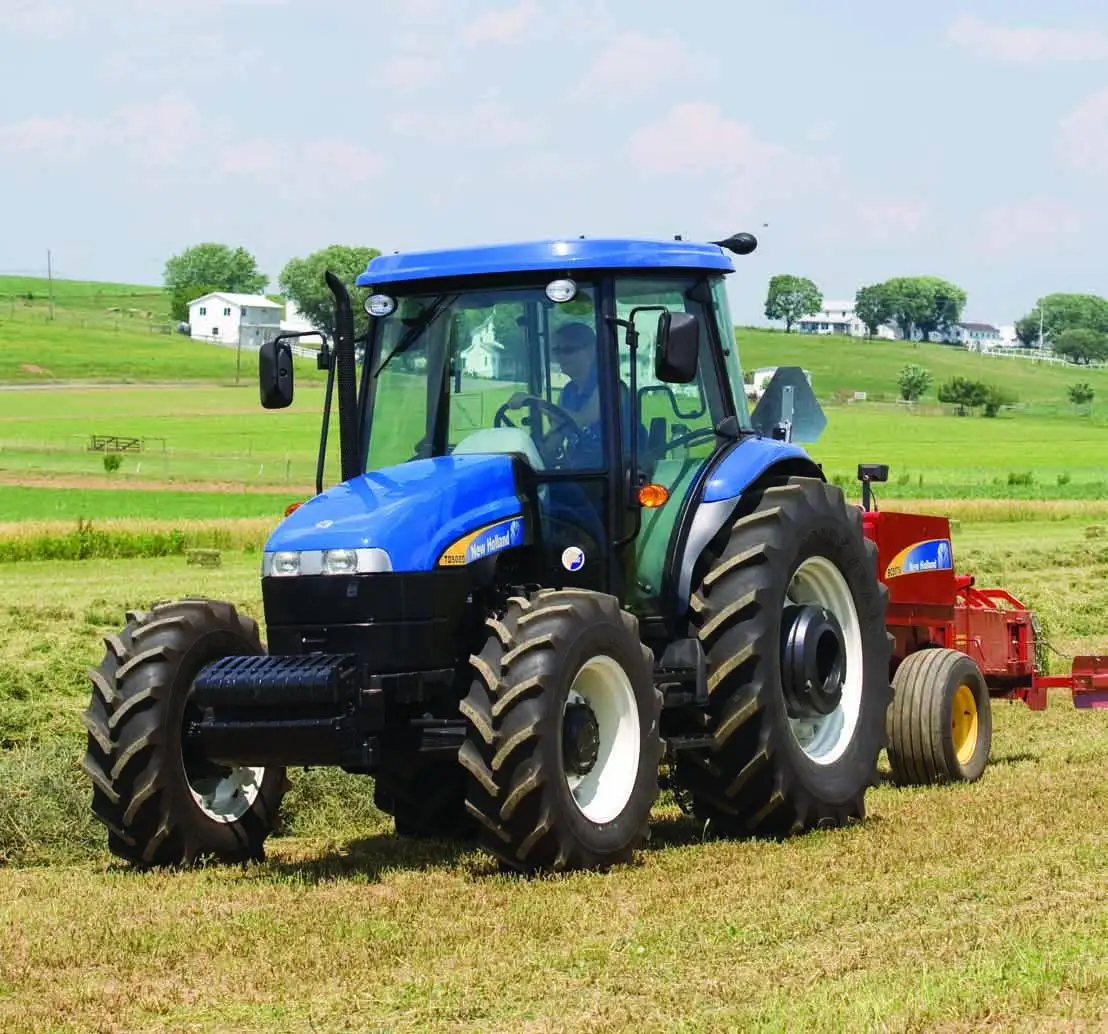

New Holland TD5030

Name: New Holland TD5030
Brand: New Holland

New Holland TD5030 — TD5000 Series · 82 hp. Reference specifications; pending source verification.

The New Holland TD5030 is a tractor with an approximate engine rating of 82 hp, a mid-range figure for its class. It was produced in 2009. The tractor features a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with mechanical front-wheel drive and a hydrostatic transmission. Its operating weight ranges from 6393 to 7981 pounds, suitable for operations on up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

82 hp

Max power

53.8 kW

Weight

6393 to 7981 pounds

Catalogue coverage

Variants represented

Richest spec table

122 rows

Recorded power

82 hp

Transmissions

12-speed

Production years

2009-2009

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

DistributorNew HollandReference

ManufacturerTurk TractorReference

Utility tractorReference

Built in Ankara, TurkeyReference

Drive4x2 2WDReference

Drive4x4 MFWD 4WD (optional)Reference

Differential lockoptional electro-hydraulic rear differential lock, limited slip front differentialReference

Steeringhydrostatic powerReference

Cab standard with optional air-conditioning. Optional ROPS.Reference

Engine

FPT 3.2L 4-cyl dieselReference

Fuel tank90.1 LReference

Fuel tank118.1 LReference

Engine (gross)61.1 kWReference

Drawbar (tested)44.5 kWReference

FPT F5CReference

turbocharged intercooled dieselReference

4-cylinder 8-valveReference

liquid-cooledReference

Displacement3.2 LReference

Bore/Stroke99 x 104 mmReference

EmissionsTier 3Reference

Rated Power (gross)61.1 kWReference

Fuel systemdirect injectionReference

Air cleanerdual dry elementReference

Compression17.5:1Reference

Rated RPM2500Reference

Torque328.0 NmReference

Torque RPM1250Reference

StarterelectricReference

Starter volts12Reference

Oil change600 hReference

Max power53.8 kWReference

Power at rated engine speed52.4 kWReference

Max power44.5 kWReference

Fuel TypeDieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,500 RPMReference

Emissions complianceTier 3Reference

Engine torque at rated speed109.7 kgReference

Bore and stroke3.898x4.094 inchesReference

Compression ratio17.5:1Reference

Cooling systemliquid-cooledReference

Interval for engine oil change600 hrReference

Transmission

12-speedReference

12-speed partially synchronized mechanical shuttleReference

12-speed partially synchronized power shuttleReference

20-speed creeperReference

TransmissionSynchro CommandReference

Gears12 forward and 4 reverseReference

TransmissionSynchro ShuttleReference

Typepartially synchronized mechanical shuttleReference

Gears12 forward and reverseReference

TransmissionPowershuttleReference

Typepartially synchronized power shuttleReference

TransmissionSynchro Shuttle creeperReference

TypecreeperReference

Gears20 forward and 12 reverseReference

Transmission TypeGearReference

Wheel Drive2WD | 4WDReference

PTO & Hydraulics

PTO (tested)53.8 kWReference

Rear valves1 to 4Reference

Pump flow45.0 lpmReference

Pump flow61.0 lpmReference

Rear PTOindependentReference

Rear PTO Type540/540E/groundReference

Rear PTO Type540 (optional)Reference

Rear PTO Type540/1000 (optional)Reference

Power at rated PTO speed52.9 kWReference

Dimensions

2WD Wheelbase228 cmReference

4WD Wheelbase222 cmReference

Weight6393 to 7981 poundsReference

Front tire7.50-16Reference

2WD Rear tire16.9/R30Reference

2WD Standard tires (ag)Front: 7.50-16. Rear: 16.9/R30Reference

4WD Standard tires (ag)Front: 11.2R24. Rear: 16.9/R30Reference

Length412 cmReference

Height (ROPS)271 cmReference

Height (cab)257 cmReference

Ground clearance42 cmReference

2WD Front tread140 to 190 cmReference

4WD Front tread156 to 199 cmReference

Rear tread140 to 199 cmReference

2WD ROPS Operating2899 kgReference

4WD ROPS Operating3349 kgReference

2WD cab Operating3180 kgReference

4WD cab Operating3620 kgReference

New Holland TD5030 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Attachment overview

New Holland 90FL loaderReference

New Holland 100FL loaderReference

The 810TL loader fits 2WD models while the 820TL fits 4WD models. Each loader is available with optional mechanical self-leveling (MSL).Reference

Capacities

Max capacity5801 kgReference

Capacity195 ciReference

Test results

Diesel 12-speed 4WDDecember 2008 - January 2009, Link: OCED Tractor Test 2583 fileReference

PTO performanceReference

Fuel use16.7 l/hourReference

Fuel use17.0 l/hourReference

Fuel use15.5 l/hourReference

Drawbar performanceReference

Fuel use15.9 l/hourReference

Max pull2175 kgReference

General

Make & ModelNew HollandReference

SCV controlJoystickReference

Rollover protective structureSuspended platform (with ROPS)Reference

Country of manufacturerTurkeyReference

Hydraulics

Capacity Valves8 valvesReference

Remote Valves1 to 4 ValvesReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Dimensions & weight

Wheelbase228.1 cmReference

Height Over ROPS271 cmReference

Height Over Cab257.8 cmReference

Overall Length412.5 cmReference

Wheels & tyres

Rear Wheel Type16.9/R30Reference

Rear wheel tread range55.12 to 78.74 inchesReference

Front Wheel Type11.2R24Reference

Front Wheel tread range55.81 to 75 inchesReference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Steering & brakes

Steering typehydrostatic powerReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
