Tractor · 2009Unverified

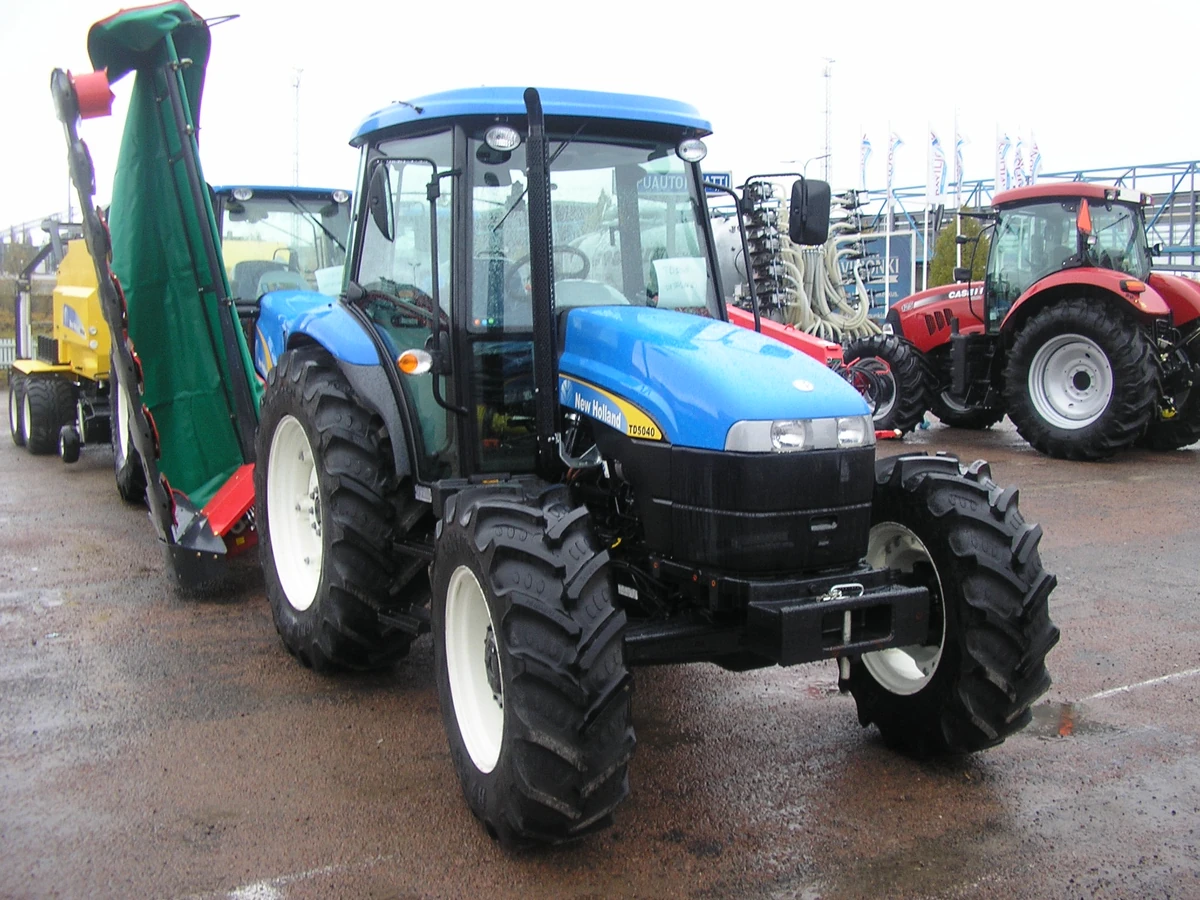

New Holland TD5040

Name: New Holland TD5040
Brand: New Holland

New Holland TD5040 — TD5000 Series · 88 hp. Reference specifications; pending source verification.

The New Holland TD5040 is a tractor with an approximate rating of 88 hp, which falls within the mid-range of its class. It was produced in 2009. Key features include a 4-cylinder turbocharged intercooled diesel liquid-cooled engine and mechanical front-wheel drive with a hydrostatic transmission. The tractor's operating weight ranges from 6636 to 8223 pounds, and it is suitable for use on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

88 hp

Max power

88 hp

Weight

6636 to 8223 pounds

Catalogue coverage

Variants represented

Richest spec table

101 rows

Recorded power

88 hp

Transmissions

12-speed partially synchronized mechanical shuttle

Production years

2009-2009

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

DistributorNew HollandReference

ManufacturerTurk TractorReference

Utility tractorReference

Built in Ankara, TurkeyReference

Drive4x2 2WDReference

Drive4x4 MFWD 4WD (optional)Reference

Differential lockoptional electro-hydraulic rear differential lock, limited slip front differentialReference

Steeringhydrostatic powerReference

Cab standard with optional air-conditioning. Optional ROPS.Reference

Engine

FPT 4.5L 4-cyl dieselReference

Fuel tank90.1 LReference

Fuel tank118.1 LReference

Engine (gross)65.6 kWReference

FPT NEFReference

turbocharged intercooled dieselReference

4-cylinder 8-valveReference

liquid-cooledReference

Displacement4.5 LReference

Bore/Stroke104 x 132 mmReference

EmissionsTier IIIReference

Rated Power (gross)65.6 kWReference

Air cleanerdryReference

Rated RPM2500Reference

Torque375.1 NmReference

Torque RPM1300Reference

StarterelectricReference

Starter volts12Reference

Oil change600 hReference

Fuel TypeDieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,500 RPMReference

Emissions complianceTier IIIReference

Engine torque at rated speed125.5 kgReference

Bore and stroke4.094x5.196 inchesReference

Cooling systemliquid-cooledReference

Interval for engine oil change600 hrReference

Transmission

12-speed partially synchronized mechanical shuttleReference

12-speed partially synchronized power shuttleReference

20-speed creeperReference

TransmissionSynchro ShuttleReference

Typepartially synchronized mechanical shuttleReference

Gears12 forward and reverseReference

TransmissionPowershuttleReference

Typepartially synchronized power shuttleReference

TransmissionSynchro Shuttle creeperReference

TypecreeperReference

Gears20 forward and 12 reverseReference

Transmission TypeGearReference

Wheel Drive2WD | 4WDReference

PTO & Hydraulics

Rear valves1 to 4Reference

Pump flow45.0 lpmReference

Pump flow61.0 lpmReference

Rear PTOindependentReference

Rear PTO Type540/540E/groundReference

Rear PTO Type540 (optional)Reference

Rear PTO Type540/1000 (optional)Reference

Dimensions

2WD Wheelbase236 cmReference

4WD Wheelbase231 cmReference

Weight6636 to 8223 poundsReference

Front tire7.50-18Reference

2WD Rear tire18.4/R30Reference

2WD Standard tires (ag)Front: 7.50-18. Rear: 18.4/R30Reference

4WD Standard tires (ag)Front: 12.4-R24. Rear: 18.4/R30Reference

Length421 cmReference

Height (ROPS)273 cmReference

Height (cab)260 cmReference

Ground clearance42 cmReference

2WD Front tread140 to 190 cmReference

4WD Front tread156 to 199 cmReference

Rear tread140 to 199 cmReference

2WD ROPS Operating3010 kgReference

4WD ROPS Operating3499 kgReference

2WD cab Operating3299 kgReference

4WD cab Operating3729 kgReference

New Holland TD5040 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Attachment overview

New Holland 90FL loaderReference

New Holland 100FL loaderReference

Capacities

Max capacity5901 kgReference

Capacity274.6 ciReference

General

Make & ModelNew HollandReference

Rollover protective structureSuspended platform (with ROPS)Reference

Country of manufacturerTurkeyReference

Hydraulics

Capacity Valves8 valvesReference

Remote Valves1 to 4 ValvesReference

Power

Max Power88 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Dimensions & weight

Wheelbase236.7 cmReference

Height Over ROPS273.6 cmReference

Height Over Cab260.1 cmReference

Overall Length421.4 cmReference

Wheels & tyres

Rear Wheel Type18.4/R30Reference

Rear wheel tread range55.12 to 78.74 inchesReference

Front Wheel Type12.4-R24Reference

Front Wheel tread range55.31 to 75 inchesReference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Steering & brakes

Steering typehydrostatic powerReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
