Tractor · 2009Unverified

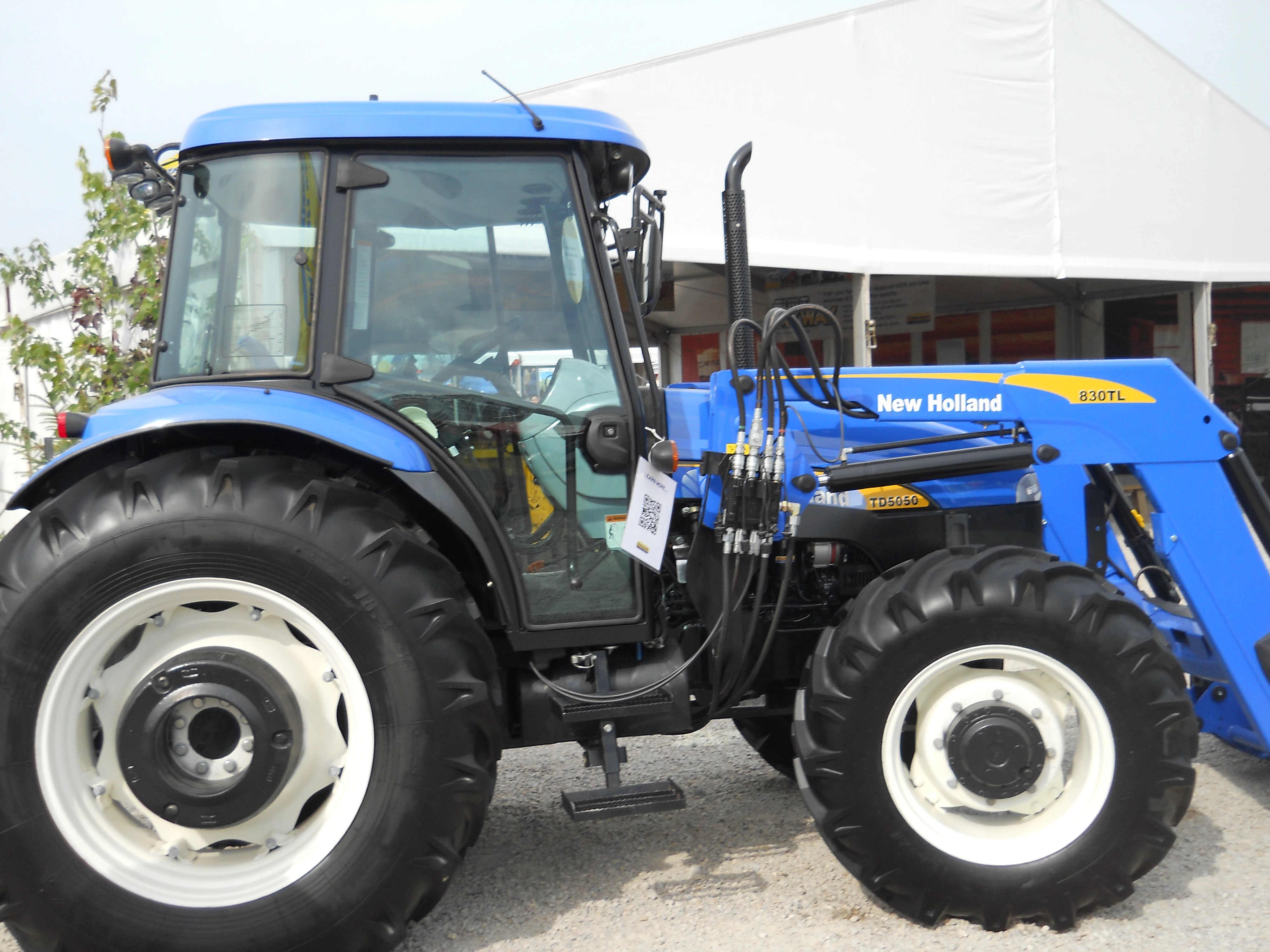

New Holland TD5050
New Holland TD5050 — TD5000 Series · 95 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
95 hp
Max power
55.5 kW
Weight
6702 to 8333 pounds
Hover a source tag to verify
Overview
DistributorNew HollandReference
ManufacturerTurk TractorReference
Utility tractorReference
Built in Ankara, TurkeyReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Differential lockoptional electro-hydraulic rear differential lock, limited slip front differentialReference
Steeringhydrostatic powerReference
Cab standard with optional air-conditioning. Optional ROPS.Reference
Engine
FPT 4.5L 4-cyl dieselReference
Fuel tank90.1 LReference
Fuel tank118.1 LReference
Engine (gross)70.8 kWReference
Drawbar (tested)55.5 kWReference
FPT NEFReference
turbocharged intercooled dieselReference
4-cylinder 8-valveReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke104 x 132 mmReference
EmissionsTier 3Reference
Rated Power (gross)70.8 kWReference
Fuel systemdirect injectionReference
Air cleanerdual dry elementReference
Rated RPM2500Reference
Torque390.0 NmReference
Torque RPM1300Reference
StarterelectricReference
Starter volts12Reference
Oil change600 hReference
Power at rated engine speed60.2 kWReference
Max power55.5 kWReference
Transmission
12-speed partially synchronized mechanical shuttleReference
12-speed partially synchronized power shuttleReference
20-speed creeperReference
TransmissionSynchro ShuttleReference
Typepartially synchronized mechanical shuttleReference
Gears12 forward and reverseReference
TransmissionPowershuttleReference
Typepartially synchronized power shuttleReference
TransmissionSynchro Shuttle creeperReference
TypecreeperReference
Gears20 forward and 12 reverseReference
PTO & Hydraulics
PTO (tested)60.2 kWReference
Rear valves1 to 4Reference
Pump flow45.0 lpmReference
Pump flow61.0 lpmReference
Rear PTOindependentReference
Rear PTO Type540/540E/groundReference
Rear PTO Type540 (optional)Reference
Rear PTO Type540/1000 (optional)Reference
Power at rated PTO speed60.1 kWReference
Dimensions
2WD Wheelbase238 cmReference
4WD Wheelbase233 cmReference
Weight6702 to 8333 poundsReference
Front tire7.50-20Reference
2WD Rear tire18.4/R34Reference
2WD Standard tires (ag)Front: 7.50-20. Rear: 18.4/R34Reference
4WD Standard tires (ag)Front: 12.4-R24. Rear: 18.4/R34Reference
Length423 cmReference
Height (ROPS)278 cmReference
Height (cab)265 cmReference
Ground clearance42 cmReference
2WD Front tread140 to 190 cmReference
4WD Front tread156 to 199 cmReference
Rear tread140 to 199 cmReference
2WD ROPS Operating3040 kgReference
4WD ROPS Operating3539 kgReference
2WD cab Operating3339 kgReference
4WD cab Operating3779 kgReference
New Holland TD5050 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Attachment overview
New Holland 90FL loaderReference
New Holland 100FL loaderReference
Capacities
Max capacity6001 kgReference
Test results
Diesel 12-speed 4WDDecember 2008 - 2008, Link: OCED Tractor Test 2510 fileReference
PTO performanceReference
Fuel use20.1 l/hourReference
Fuel use19.7 l/hourReference
Drawbar performanceReference
Fuel use19.3 l/hourReference
Max pull3363 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
