Tractor · 2009Unverified

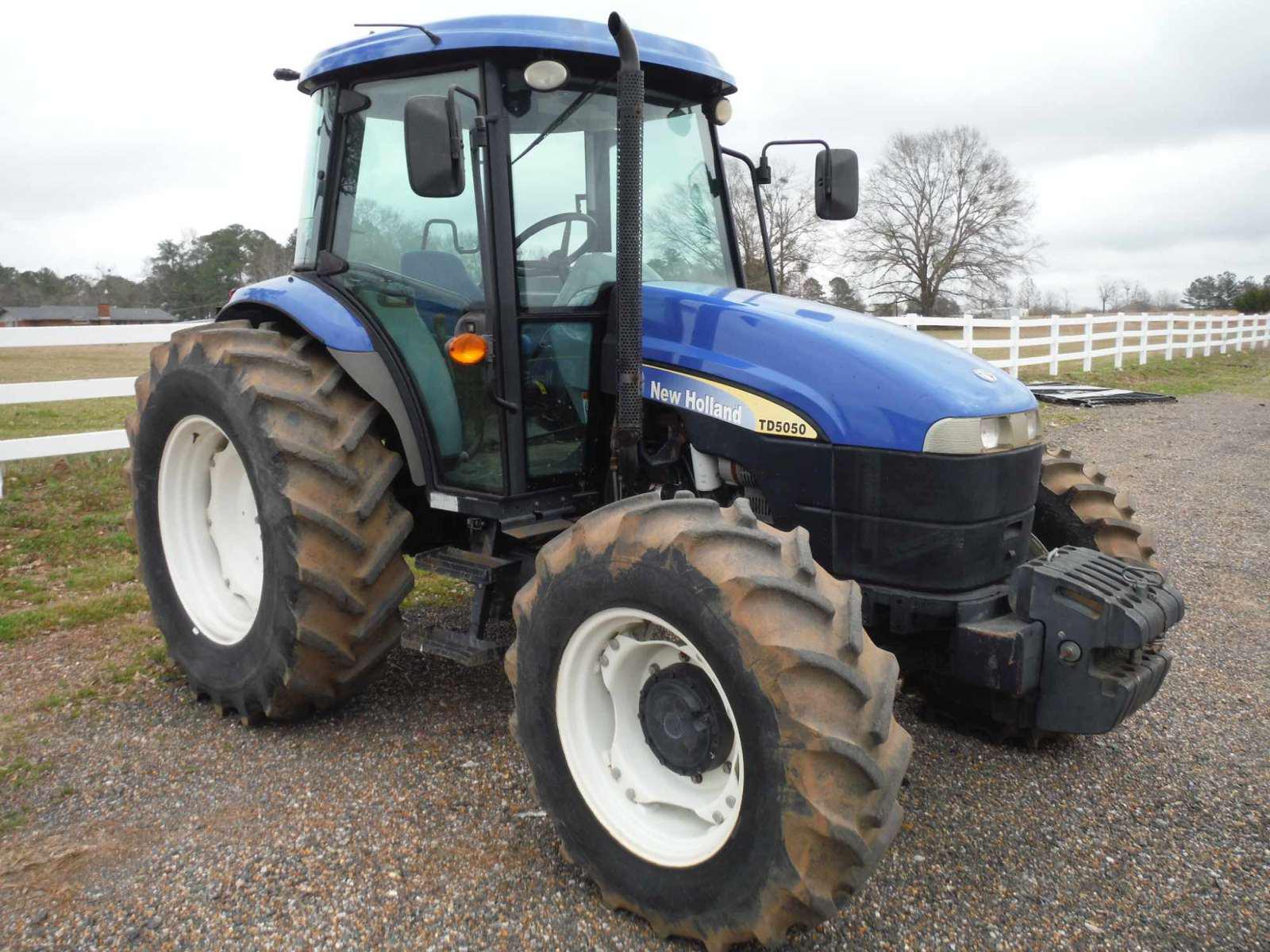

New Holland TD5050HC High-Clearance
New Holland TD5050HC High-Clearance — TD5000 Series · 90 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
90 hp
Weight
7888 to 8818 pounds
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
High-Clearance tractorReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Platform with ROPS.Reference
Variants
TD5050regular chassisReference
TD5050HChigh-clearanceReference
Engine
Iveco 4.5L 4-cyl dieselReference
Fuel tank117.3 LReference
Engine (gross)67.1 kWReference
Iveco NEFReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Power (gross)67.1 kWReference
Air cleanerdual dry elementReference
Rated RPM2500Reference
Torque469.2 NmReference
Torque RPM1500Reference
Starter volts12Reference
Transmission
20-speed mechanical shuttleReference
Typemechanical shuttleReference
Gears20 forward and 12 reverseReference
PTO & Hydraulics
PTO (claimed)59.7 kWReference
Typeopen centerReference
Pressure190.0 barReference
Valves1 to 3 rearReference
Pump flow60.9 lpmReference
Total flow87.4 lpmReference
Steering flow26.5 lpmReference
Rear TypeIIReference
Rear lift (at 24"/610mm)2279 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Rear PTO Type540/1000 (optional)Reference
Dimensions
Wheelbase227 cmReference
Wheelbase222 cmReference
Wheelbase216 cmReference
Wheelbase211 cmReference
Weight7888 to 8818 poundsReference
Ag reardifferential hydraulic wet discReference
Height (ROPS)293 cmReference
Shipping weight3577 kgReference
Shipping weight3999 kgReference
Electrical
Charging systemalternatorReference
Charging amps120Reference
Battery CCA800Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
