Tractor · 2007Unverified

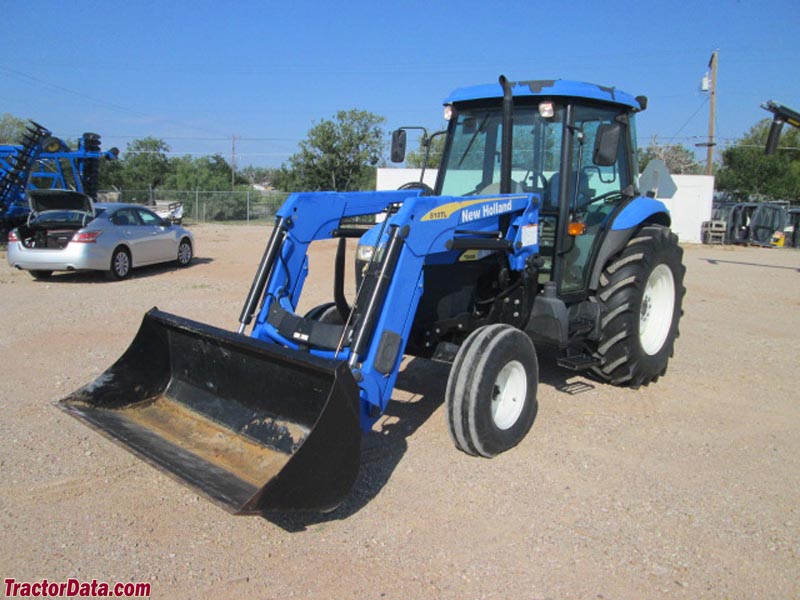

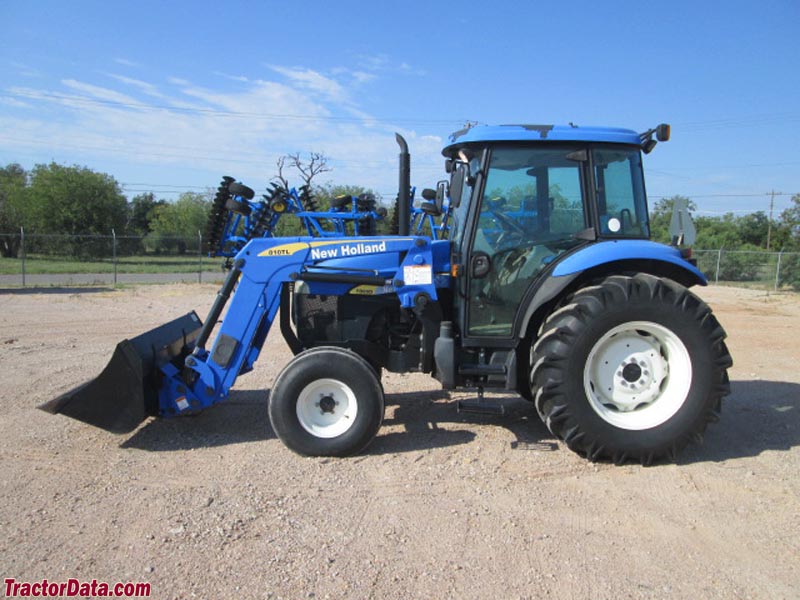

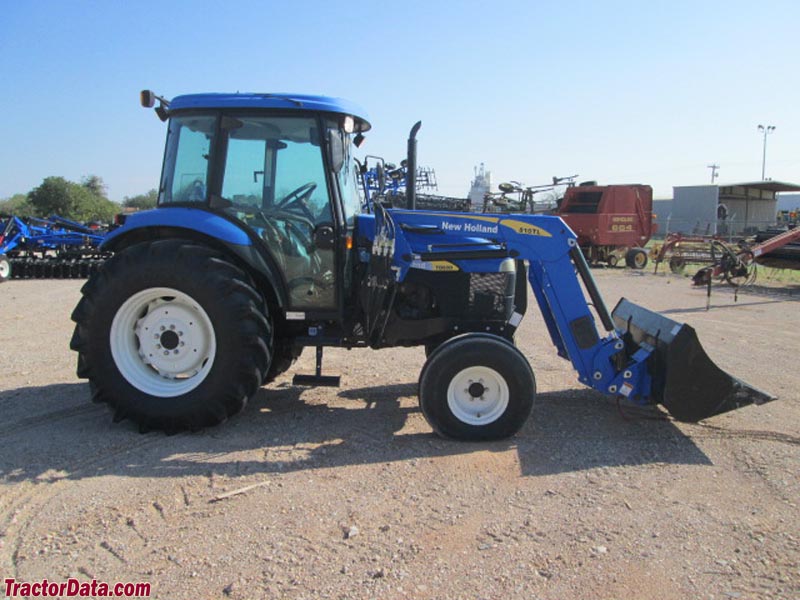

New Holland TD80D

Name: New Holland TD80D
Brand: New Holland

New Holland TD80D — TDD Series · 72 hp. Reference specifications; pending source verification.

The New Holland TD80D is a tractor with a rated power of 72 hp, a mid-range figure for its class. Produced between 2007 and 2008, this model features a 4-cylinder diesel liquid-cooled engine, paired with mechanical front-wheel drive and hydrostatic transmission. The operating weight of the New Holland TD80D ranges from 5702 to 6915 pounds. It is capable of operating on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

72 hp

Weight

5702 to 6915 pounds

Catalogue coverage

Variants represented

Richest spec table

76 rows

Recorded power

72 hp

Transmissions

12-speed mechanical shuttle

Production years

2007-2008

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

DistributorNew HollandReference

ManufacturerTurk TraktorReference

Utility tractorReference

Built in Ankara, TurkeyReference

Original price$19,600 (2007 )Reference

Original price$21,100 (2008 )Reference

Drive4x2 2WDReference

Drive4x4 MFWD 4WD (optional)Reference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

Two-post foldable ROPS. Cab with heat and air-conditioning optional.Reference

Engine

Iveco 3.9L 4-cyl dieselReference

Fuel tank90.1 LReference

Engine (gross)53.7 kWReference

Iveco 8045.05Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.9 LReference

EmissionsTier IIReference

Power (gross)53.7 kWReference

Fuel systemBosch fuel injectionReference

Air cleanerdual dry elementReference

Pre-heatingthermostartReference

Pre-heatingblock heater optionalReference

Rated RPM2500Reference

Torque279.1 NmReference

Torque RPM1500Reference

StarterelectricReference

Starter volts12Reference

Transmission

12-speed mechanical shuttleReference

20-speed creeperReference

Typemechanical shuttleReference

Gears12 forward and reverseReference

Clutch11-inch creametallic dry discReference

Four synchronized gears in three non-synchronized ranges. Synchronized mechanical shuttle.Reference

TypecreeperReference

Gears20 forward and 12 reverseReference

Creeper adds an additional eight forward speeds to the mechanical shuttle transmission.Reference

PTO & Hydraulics

PTO (claimed)46.2 kWReference

Typeopen centerReference

Pressure190.0 barReference

Valves2 to 3 rearReference

Valves0 to 2 midReference

Pump flow51.5 lpmReference

Total flow82.1 lpmReference

Steering flow30.7 lpmReference

Rear TypeIIReference

Controlmechanical draft controlReference

Rear lift (at 24"/610mm)2279 kgReference

Rear PTOindependentReference

Clutchmechanical dry discReference

Rear PTO Type540 (1.375)Reference

Dimensions

Wheelbase231 cmReference

Wheelbase220 cmReference

Weight5702 to 6915 poundsReference

Front tire10.00-16Reference

2WD Rear tire16.9-30Reference

2WD Standard tires (ag)Front: 10.00-16. Rear: 16.9-30Reference

2WD Standard tires (ag)Front: 10.00-16. Rear: 18.4R30Reference

4WD Standard tires (ag)Front: 11.2R24. Rear: 16.9R30Reference

4WD Standard tires (ag)Front: 12.4R24. Rear: 18.4R30Reference

Height (ROPS)256 cmReference

Height (cab)261 cmReference

2WD Front tread140 to 191 cmReference

4WD Front tread144 to 187 cmReference

Rear tread139 to 200 cmReference

Shipping2586 kgReference

Shipping2886 kgReference

Shipping2836 kgReference

Shipping3136 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps65Reference

Battery CCA800Reference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
