Tractor · 2002Unverified

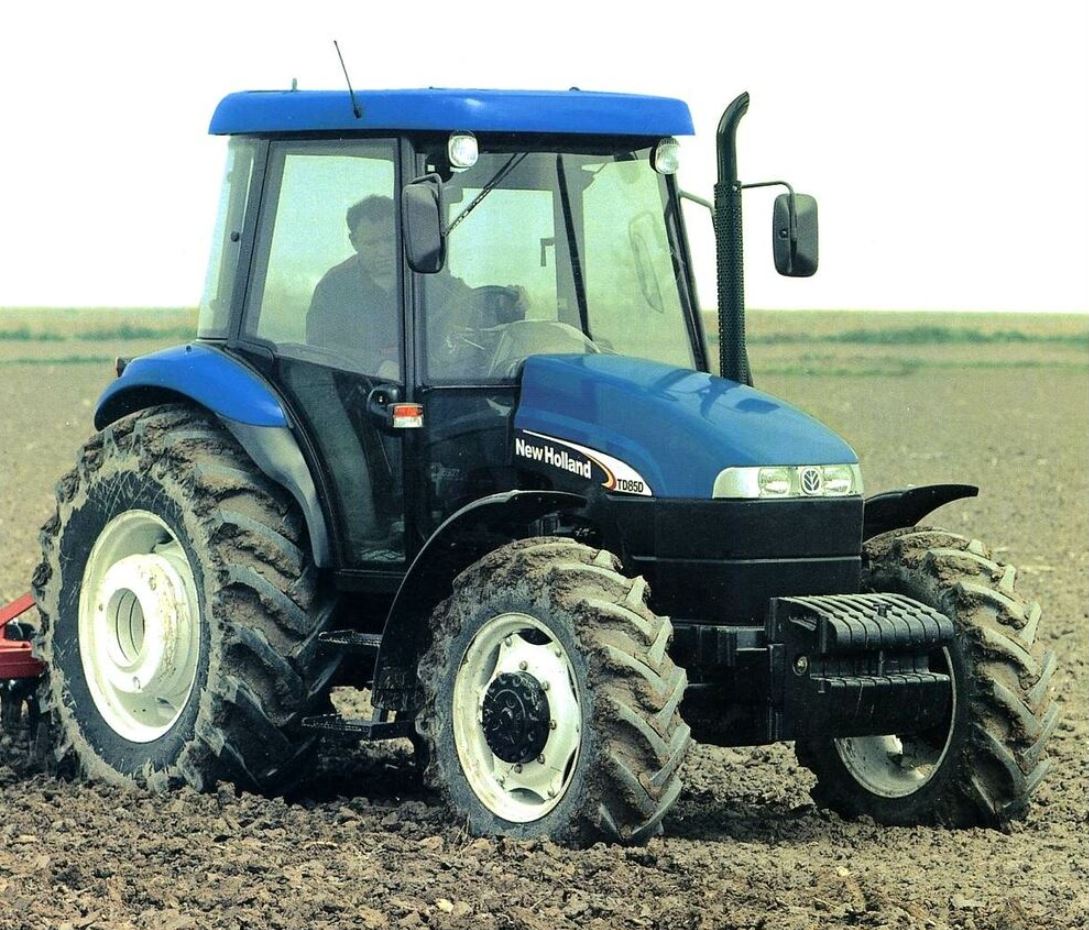

New Holland TD85D
New Holland TD85D — TDD Series · 85 hp. Reference specifications; pending source verification.
The New Holland TD85D is a tractor with a rated power output of approximately 85 hp, a mid-range figure for its class. This model was produced between 2002 and 2006. It features a 4-cylinder diesel liquid-cooled engine, coupled with mechanical front-wheel drive and a 12-speed gearbox. The tractor is suitable for operations on areas of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
85 hp
Catalogue coverage
Variants represented
2
Richest spec table
33 rows
Recorded power
85 hp
Transmissions
12-speed mech sync shuttle (3 ranges)
Production years
2002-2006
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
DistributorNew HollandReference
ManufacturerTurk TraktorReference
Utility tractorReference
Built in Ankara, TurkeyReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Wet disc brakesReference
ROPS. Cab with AC optionalReference
Engine
Iveco 3.9L 4-cyl dieselReference
Fuel tank90.1 LReference
Engine63.4 kWReference
Iveco 8045.05Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Power63.4 kWReference
Air cleanerdual dry elementsReference
Rated RPM2500Reference
Torque268.1 NmReference
Torque RPM1500Reference
Starter volts12Reference
Transmission
12-speed mech sync shuttle (3 ranges)Reference
20-speed shuttle with creeperReference
Typemech sync shuttle (3 ranges)Reference
Gears12 forward and reverseReference
Clutchdry discReference
Typeshuttle with creeperReference
Gears20 forward and 12 reverseReference
PTO & Hydraulics
Rear PTO Type540Reference
Rear PTO Type540/1000 (optional)Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
