Tractor · 2002Unverified

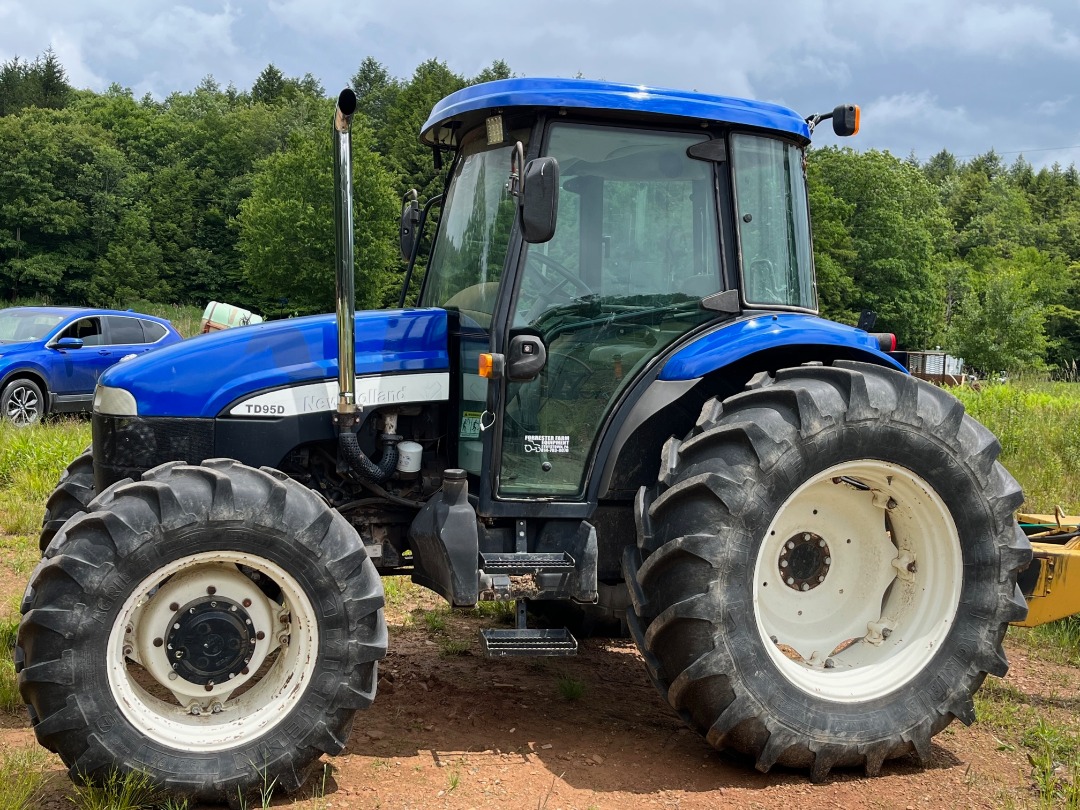

New Holland TD95D
New Holland TD95D — Model year 2002-20062007-2008 · 80 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
80 hp
Weight
6107 to 7320 pounds
Hover a source tag to verify
Overview
DistributorNew HollandReference
ManufacturerTurk TraktorReference
Utility tractorReference
Built in Ankara, TurkeyReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Steeringhydrostatic powerReference
Mechanical wet disc brakesReference
Two-post foldable ROPS. Cab with heat and air-conditioning optional.Reference
Engine
Iveco 3.9L 4-cyl dieselReference
Fuel tank90.1 LReference
Engine67.1 kWReference
Iveco 8045.25Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke104 x 115 mmReference
Power67.1 kWReference
Fuel systemBosch injection pumpReference
Air cleanerdual dry elementsReference
Pre-heatingthermostartReference
Pre-heatingblock heater optionalReference
Rated RPM2500Reference
Torque340.1 NmReference
Torque RPM1500Reference
Starter volts12Reference
Transmission
12-speed mechanical shuttleReference
20-speed mechanical shuttle with creeperReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
Clutch12-inch cerametallic dry discReference
Four synchronized gears in three non-synchronized ranges. Synchronized mechanical shuttle.Reference
Typemechanical shuttle with creeperReference
Gears20 forward and 12 reverseReference
Optional creeper adds an additional eight forward speeds to the standard transmission.Reference
PTO & Hydraulics
PTO (claimed)59.7 kWReference
Typeopen centerReference
Pressure190.0 barReference
Valves1 to 3Reference
Pump flow51.5 lpmReference
Total flow82.1 lpmReference
Steering flow30.7 lpmReference
Rear TypeIIReference
Controlmechanical draft controlReference
Rear lift (at 24"/610mm)2279 kgReference
Rear PTOindependentReference
Clutchmechanical dryReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type540/1000 (1.375 optional)Reference
Dimensions
Wheelbase238 cmReference
Wheelbase233 cmReference
Weight6107 to 7320 poundsReference
Front tire10.00-16Reference
2WD Rear tire18.4R30Reference
2WD Standard tires (ag)Front: 10.00-16. Rear: 18.4R30Reference
2WD Standard tires (ag)Front: 10.00-16. Rear: 18.4R34Reference
4WD Standard tires (ag)Front: 12.4R24. Rear: 18.4R30Reference
4WD Standard tires (ag)Front: 13.6R24. Rear: 18.4R34Reference
Height261 cmReference
2WD Front tread140 to 191 cmReference
4WD Front tread144 to 187 cmReference
Rear tread139 to 200 cmReference
Shipping2770 kgReference
Shipping3020 kgReference
Shipping3069 kgReference
Shipping3320 kgReference
Electrical
GroundnegativeReference
Charging amps65Reference
Battery CCA800Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
