Tractor · 2003Unverified

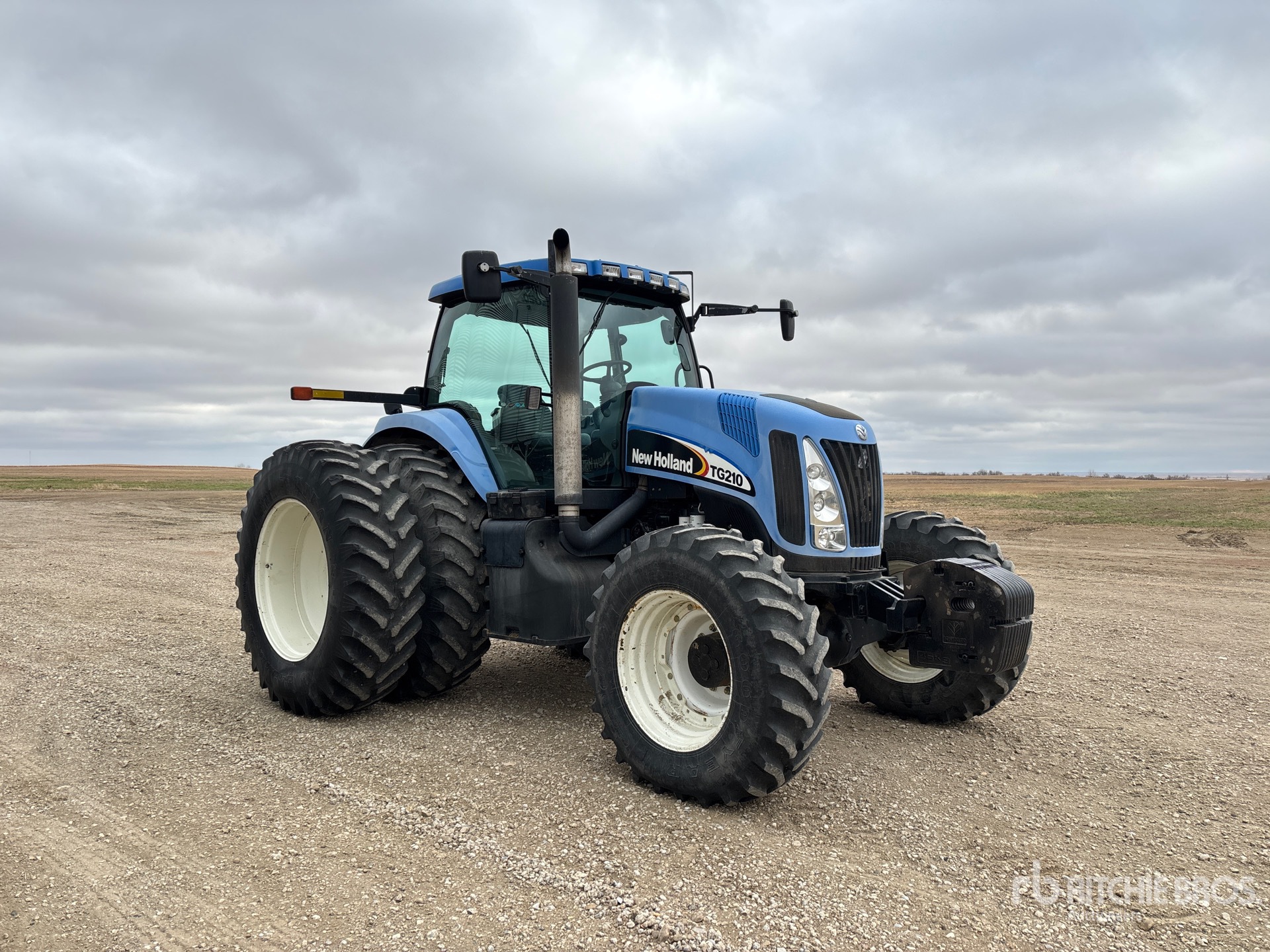

New Holland TG210
New Holland TG210 — TG Series · 173 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
173 hp
Max power
145.6 kW
Weight
19582 to 20455 pounds
Hover a source tag to verify
Overview
ManufacturerNew Holland (a part of CNH)Reference
Row-Crop tractorReference
Built in Racine, Wisconsin, USAReference
Four-wheel driveReference
Differential lockelectro-hydraulicReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Variants
MX210similar CaseIH modelReference
Engine
CDC 8.3L 6-cyl dieselReference
Fuel tank492.1 LReference
Fuel tank605.6 LReference
Engine156.6 kWReference
Drawbar (tested)109.5 kWReference
CDCReference
turbocharged dieselReference
6-cylinder 12-valveReference
liquid-cooled inlineReference
Displacement8.3 LReference
Bore/Stroke114 x 135 mmReference
Power156.6 kWReference
Air cleanerdry two-stageReference
Compression18:1Reference
Rated RPM2200Reference
Idle RPM850-2505Reference
Firing order1-5-3-6-2-4Reference
Starter volts12Reference
Intake valve clearance0.254 mmReference
Exhaust valve clearance0.508 mmReference
Max power145.6 kWReference
Power at rated engine speed129.1 kWReference
Max power109.5 kWReference
Transmission
18-speed full power shiftReference
24-speed creeperReference
Typefull power shiftReference
Gears18 forward and 4 reverseReference
Clutchelectro-hydraulic wet discReference
TypecreeperReference
Gears24 forward and 6 reverseReference
PTO & Hydraulics
PTO (claimed)126.8 kWReference
PTO (tested)145.6 kWReference
Typeclosed center load sensingReference
Pressure202.0 barReference
Valves3 to 5Reference
Pump flow146.1 lpmReference
Pump flow257.4 lpmReference
Rear TypeIII/IIINReference
Controlposition and electronic draft controlReference
Rear lift (at 24"/610mm)6332 kgReference
Rear lift (at 24"/610mm)7243 kgReference
Rear lift (at 24"/610mm)6282 kgReference
Front HitchIIINReference
Front lift (at 24"/610mm)4166 kgReference
Front lift (at 24"/610mm)4286 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type1000 (1.75)Reference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2000Reference
Engine RPM1000@2000Reference
Power at rated PTO speed144.2 kWReference
Dimensions
Wheelbase307 cmReference
Wheelbase328 cmReference
Weight19582 to 20455 poundsReference
Front tire16.9R30Reference
Rear tire20.8R42Reference
Standard tires (ag)Front: 16.9R30. Rear: 20.8R42Reference
Length518 cmReference
Height314 cmReference
Ground clearance42 cmReference
Front axle4WDReference
Front axleSuperSteerReference
Front axleTerraGlideReference
Shipping8882 kgReference
Shipping9245 kgReference
Shipping9060 kgReference
Operating9278 kgReference
Ballasted10630 kgReference
New Holland TG210 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps135Reference
Batteries2Reference
Battery CCA1000Reference
Battery volts12Reference
Battery Group31Reference
Test results
Diesel 18-speed 4WDOctober 7 - 27, 2003Link: OCED Tractor Test 1829 fileReference
PTO performanceReference
Fuel use43.9 l/hourReference
Fuel use44.3 l/hourReference
Drawbar performanceReference
Gear 7 used for power test.Reference
Max pull9113 kgReference
Gear 4 used for pull test.Reference
Speeds
With 20.8R42 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
