Tractor · 2006Unverified

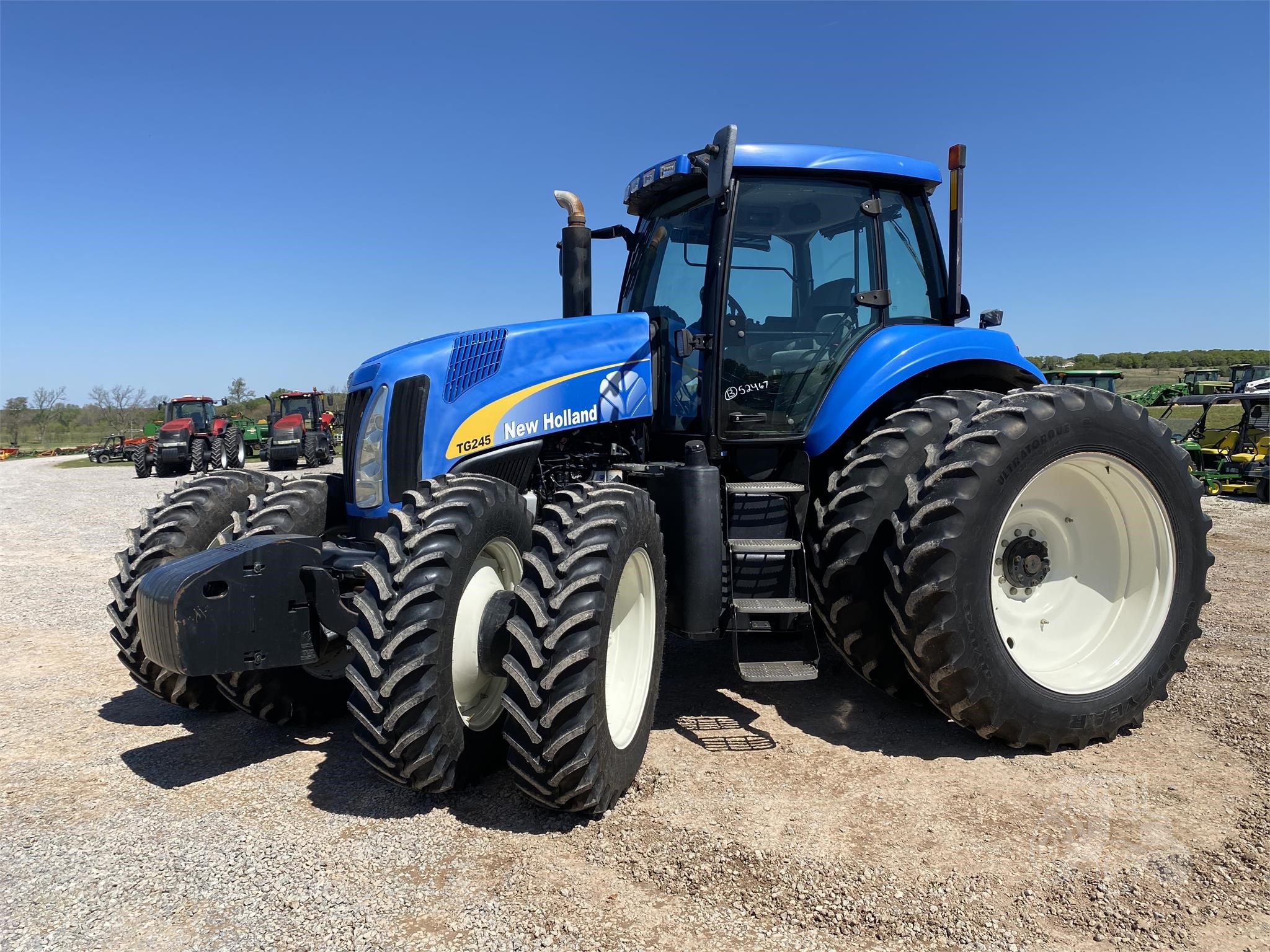

New Holland TG245

Name: New Holland TG245
Brand: New Holland

New Holland TG245 — TG II Series · 203 hp. Reference specifications; pending source verification.

The New Holland TG245 is a tractor with a rated power output of 203 horsepower, positioning it at the more powerful end of its class. It was manufactured from 2006 to 2007. The TG245 is equipped with a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with four-wheel drive and a hydrostatic transmission. Its operating weight is listed as 9648 kilograms, making it suitable for operations ranging from 600 to 1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

203 hp

Max power

183.2 kW

Weight

9648 kg

Catalogue coverage

Variants represented

Richest spec table

51 rows

Recorded power

203 hp

Recorded weight

9648 kg

Transmissions

19-speed full power shift

Production years

2006-2007

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Row-Crop tractorReference

Built in Racine, Wisconsin, USAReference

Four-wheel driveReference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

CNH 8.3L 6-cyl dieselReference

Fuel tank681.3 LReference

Engine184.9 kWReference

Drawbar (tested)132.8 kWReference

CNHReference

intercooled turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement8.3 LReference

Bore/Stroke114 x 135 mmReference

Power184.9 kWReference

Air cleanerdual paper elementsReference

Compression17.5:1Reference

Rated RPM2200Reference

Max power183.2 kWReference

Power at rated engine speed151.6 kWReference

Max power132.8 kWReference

Transmission

19-speed full power shiftReference

Typefull power shiftReference

Gears19 forward and 4 reverseReference

PTO & Hydraulics

PTO (claimed)149.1 kWReference

PTO (tested)183.2 kWReference

Rear TypeIIIReference

Rear lift6382 kgReference

Rear lift7427 kgReference

Rear PTOindependentReference

Rear PTO Type1000 (1.75)Reference

Rear PTO Type540/1000 (1.375)Reference

Power at rated PTO speed183.2 kWReference

Dimensions

Wheelbase307 cmReference

Wheelbase328 cmReference

Weight9648 kgReference

Operating weight9648 kgReference

Ballasted weight12412 kgReference

New Holland TG245 attachments

front-end loaderReference

Test results

Diesel 19 speed 4WDMay 2 - 18, 2007Link: OCED Tractor Test 568 fileReference

PTO performanceReference

Fuel use55.3 l/hourReference

Fuel use50.0 l/hourReference

Drawbar performanceReference

Fuel use51.5 l/hourReference

Gear 7 used for power test.Reference

Max pull11973 kgReference

Gear 2 used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
