Tractor · 2002Unverified

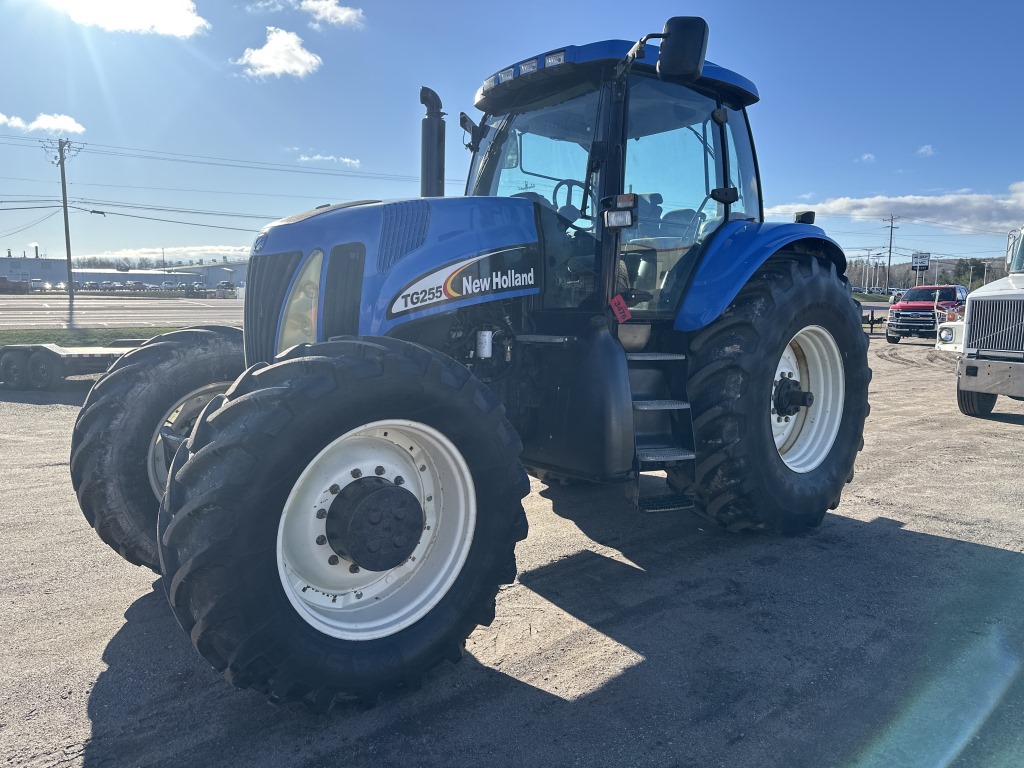

New Holland TG255

Name: New Holland TG255
Brand: New Holland

New Holland TG255 — TG Series · 216 hp. Reference specifications; pending source verification.

The New Holland TG255 is a high-powered tractor rated at 216 hp, positioning it within the upper range of its class. Manufactured between 2002 and 2006, this model features a 6-cylinder turbocharged diesel liquid-cooled engine, coupled with a four-wheel drive system and a powershift transmission. The tractor's weight is listed as 20200 to 21250 pounds. It is designed for use on agricultural land covering approximately 600 to 1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

216 hp

Max power

183.4 kW

Weight

20200 to 21250 pounds

Catalogue coverage

Variants represented

Richest spec table

94 rows

Recorded power

216 hp

Transmissions

18-speed full power shift

Production years

2002-2006

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew Holland (a part of CNH)Reference

Row-Crop tractorReference

Built in Racine, Wisconsin, USAReference

Four-wheel driveReference

Differential lockelectro-hydraulicReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab standard with air-conditioning.Reference

Variants

MX255similar CaseIH modelReference

Engine

CDC 8.3L 6-cyl dieselReference

Fuel tank605.6 LReference

Engine190.2 kWReference

Drawbar (tested)134.0 kWReference

CDCReference

turbocharged aftercooled dieselReference

6-cylinder 24-valveReference

liquid-cooled inlineReference

Displacement8.3 LReference

Bore/Stroke114 x 135 mmReference

Power190.2 kWReference

Air cleanerdry two-stageReference

Compression17:1Reference

Rated RPM2200Reference

Idle RPM850-2410Reference

Firing order1-5-3-6-2-4Reference

Starter volts12Reference

Intake valve clearance0.254 mmReference

Exhaust valve clearance0.508 mmReference

Max power183.4 kWReference

Power at rated engine speed161.4 kWReference

Max power134.0 kWReference

Transmission

18-speed full power shiftReference

24-speed creeperReference

Typefull power shiftReference

Gears18 forward and 4 reverseReference

Clutchelectro-hydraulic wet discReference

TypecreeperReference

Gears24 forward and 6 reverseReference

PTO & Hydraulics

PTO (claimed)160.3 kWReference

PTO (tested)183.4 kWReference

Typeclosed center load sensingReference

Pressure202.0 barReference

Valves3 to 5Reference

Pump flow146.1 lpmReference

Pump flow257.4 lpmReference

Rear TypeIII/IIINReference

Controlposition and electronic draft controlReference

Rear lift (at 24"/610mm)6790 kgReference

Rear lift (at 24"/610mm)8128 kgReference

Rear lift (at 24"/610mm)6704 kgReference

Front HitchIIINReference

Front lift (at 24"/610mm)4166 kgReference

Front lift (at 24"/610mm)4286 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type1000 (1.75)Reference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@2000Reference

Engine RPM1000@2000Reference

Power at rated PTO speed183.4 kWReference

Dimensions

Wheelbase307 cmReference

Wheelbase328 cmReference

Weight20200 to 21250 poundsReference

Front tire16.9R30Reference

Rear tire20.8R42Reference

Standard tires (ag)Front: 16.9R30. Rear: 20.8R42Reference

Length518 cmReference

Height314 cmReference

Ground clearance42 cmReference

Front axle4WDReference

Front axleSuperSteerReference

Front axleTerraGlideReference

Shipping9162 kgReference

Shipping9525 kgReference

Shipping9274 kgReference

Operating9639 kgReference

Ballasted12909 kgReference

New Holland TG255 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps135Reference

Batteries2Reference

Battery CCA1000Reference

Battery volts12Reference

Battery Group31Reference

Test results

Diesel 18-speed 4WDSeptember 18 - October 27, 2003Link: OCED Tractor Test 1831 fileReference

PTO performanceReference

Fuel use51.1 l/hourReference

Fuel use46.9 l/hourReference

Drawbar performanceReference

Gear 7 used for power test.Reference

Max pull9357 kgReference

Gear 5 used for pull test.Reference

Speeds

With 20.8R42 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
