Tractor · 2006Unverified

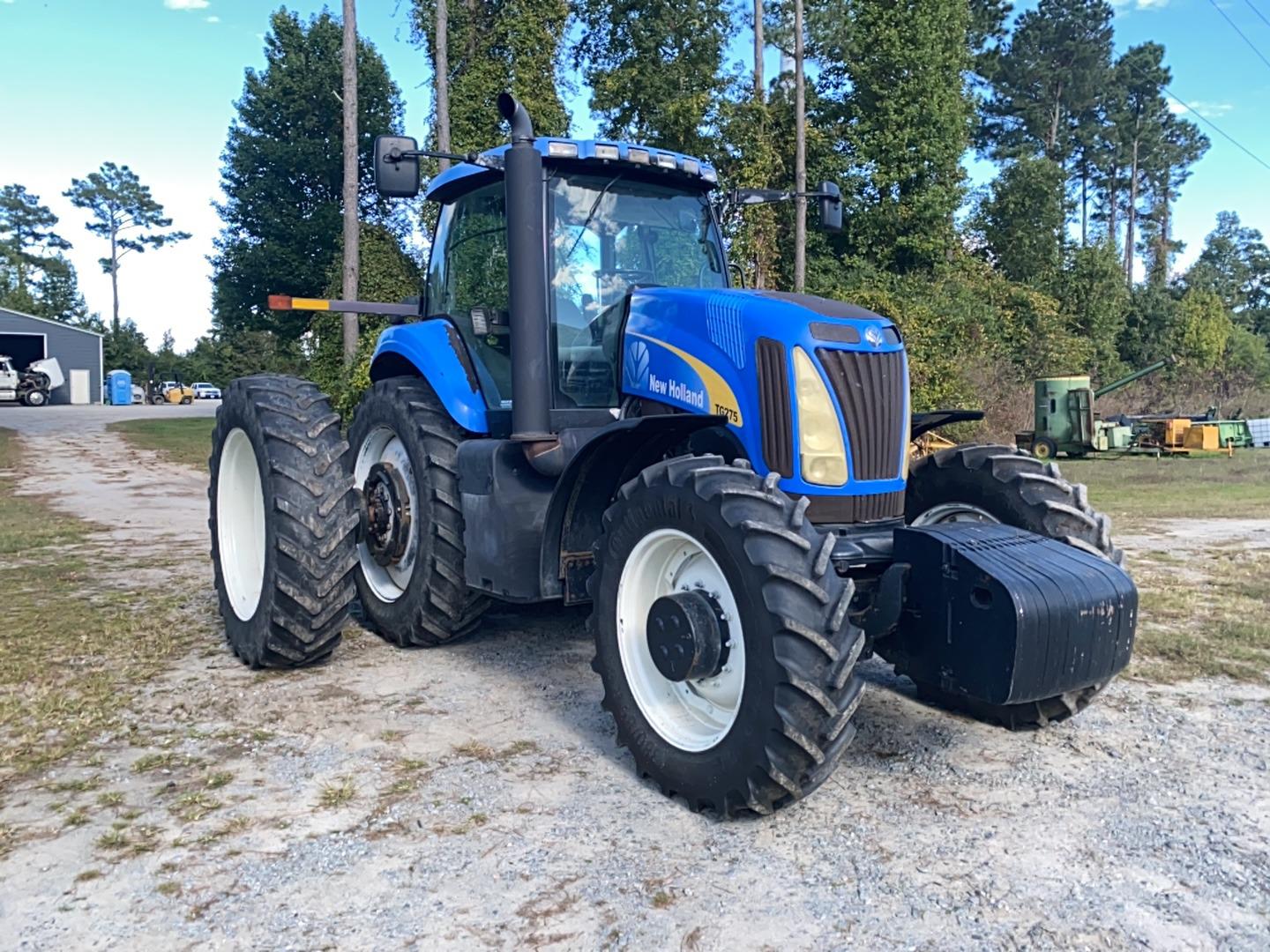

New Holland TG275
New Holland TG275 — TG II Series · 226 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
226 hp
Max power
141.2 kW
Weight
20370 to 21535 pounds
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Row-Crop tractorReference
Built in Racine, Wisconsin, USAReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Differential hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
CNH 8.3L 6-cyl dieselReference
Fuel tank681.3 LReference
Engine205.1 kWReference
Drawbar (tested)141.2 kWReference
CNHReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement8.3 LReference
Bore/Stroke114 x 135 mmReference
Power205.1 kWReference
Compression17.5:1Reference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Power at rated engine speed168.4 kWReference
Max power141.2 kWReference
Transmission
18-speed full power shiftReference
19-speed full power shiftReference
23-speed full power shiftReference
Typefull power shiftReference
Gears18 forward and 4 reverseReference
Gears19 forward and 4 reverseReference
Gears23 forward and 6 reverseReference
PTO & Hydraulics
PTO (claimed)167.8 kWReference
PTO (tested)168.4 kWReference
Typeclosed center load sensing (CCLS)Reference
Valves3 to 5Reference
Total flow146.1 lpmReference
Total flow264.9 lpmReference
Rear TypeIIIN/IIIReference
Rear lift6790 kgReference
Rear lift8128 kgReference
Rear PTOindependentReference
Rear PTO Type1000 (1.75)Reference
Rear PTO Type540/1000 (1.375)Reference
Power at rated PTO speed200.4 kWReference
Dimensions
Wheelbase307 cmReference
Wheelbase328 cmReference
Weight20370 to 21535 poundsReference
Shipping9239 kgReference
Shipping9602 kgReference
Shipping9351 kgReference
Operating9768 kgReference
Ballasted13660 kgReference
New Holland TG275 attachments
front-end loaderReference
Electrical
Charging systemalternatorReference
Charging amps150Reference
Charging amps175 (optional)Reference
Capacities
Max capacity14742 kgReference
Test results
Diesel 19-speed 4WDNovember 1 - 14, 2007Link: OCED Tractor Test 1914 fileReference
PTO performanceReference
Fuel use54.1 l/hourReference
Fuel use59.4 l/hourReference
Drawbar performanceReference
Fuel use53.7 l/hourReference
Gear 9 used for power test.Reference
Max pull13514 kgReference
Gear 3 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
