Tractor · 2002Unverified

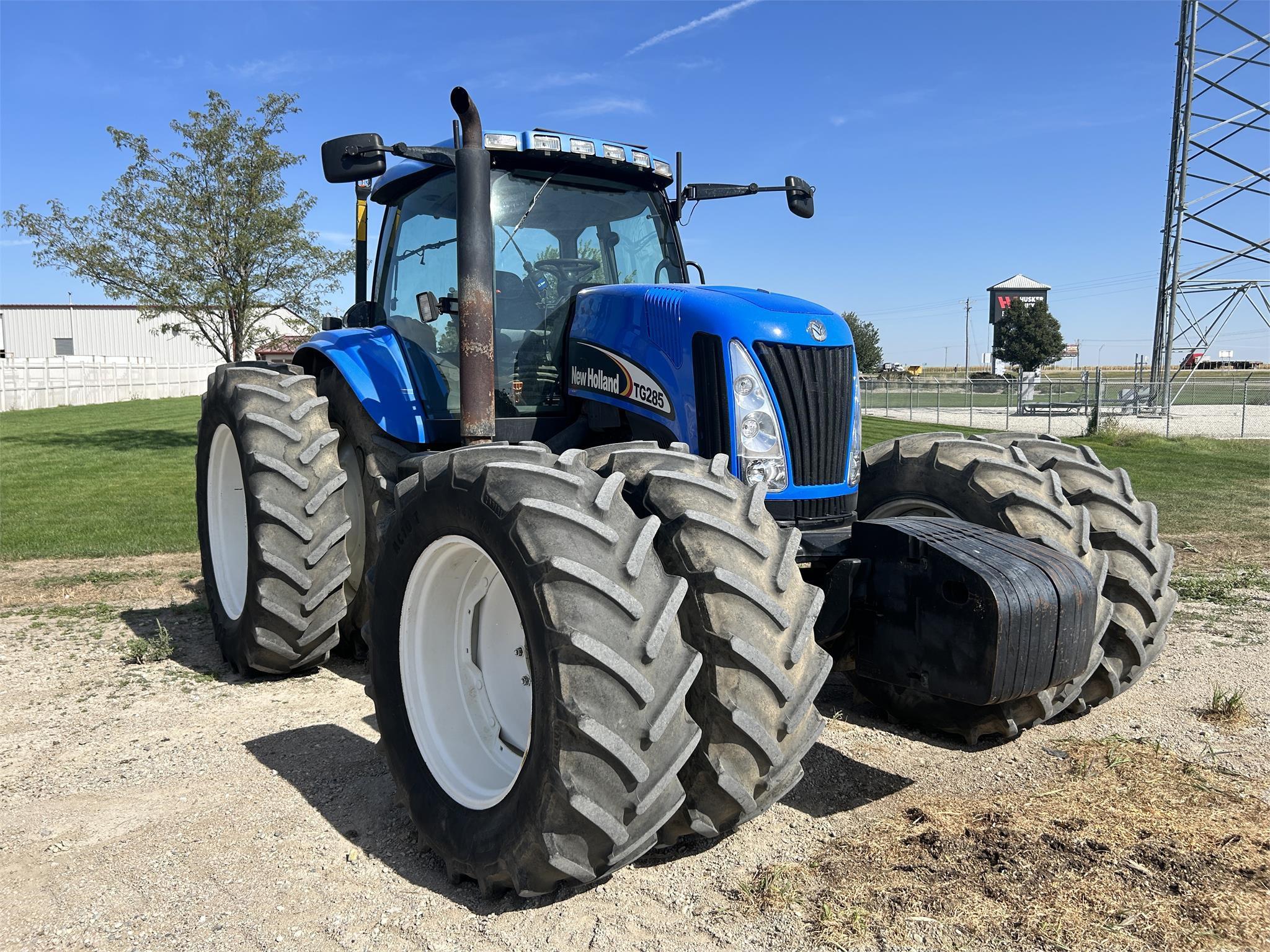

New Holland TG285

Name: New Holland TG285
Brand: New Holland

New Holland TG285 — TG Series · 242 hp. Reference specifications; pending source verification.

The New Holland TG285 is a tractor with a rated power output of 242 hp, positioning it at the more powerful end of its class. Available from 2002 to 2006, this model features a 6-cylinder turbocharged diesel liquid-cooled engine and four-wheel drive with a powershift transmission. The operating weight of the TG285 is listed as between 20200 and 21175 pounds. It is suitable for operations covering 1,500 acres or more.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

242 hp

Max power

204.9 kW

Weight

20200 to 21175 pounds

Catalogue coverage

Variants represented

Richest spec table

96 rows

Recorded power

242 hp

Transmissions

18-speed full power shift

Production years

2002-2006

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew Holland (a part of CNH)Reference

Row-Crop tractorReference

Built in Racine, Wisconsin, USAReference

Four-wheel driveReference

Differential lockelectro-hydraulicReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab standard with air-conditioning.Reference

Variants

MX285similar CaseIH modelReference

Engine

CDC 8.3L 6-cyl dieselReference

Fuel tank605.6 LReference

Engine212.5 kWReference

Drawbar (tested)152.5 kWReference

CDCReference

turbocharged aftercooled dieselReference

6-cylinder 24-valveReference

liquid-cooled inlineReference

Displacement8.3 LReference

Bore/Stroke114 x 135 mmReference

Power212.5 kWReference

Air cleanerdry two-stageReference

Compression17:1Reference

Rated RPM2200Reference

Idle RPM850-2410Reference

Firing order1-5-3-6-2-4Reference

Starter volts12Reference

Intake valve clearance0.254 mmReference

Exhaust valve clearance0.508 mmReference

Max power204.9 kWReference

Power at rated engine speed180.1 kWReference

Max power152.5 kWReference

Transmission

18-speed full power shiftReference

24-speed creeperReference

Typefull power shiftReference

Gears18 forward and 4 reverseReference

Clutchelectro-hydraulic wet discReference

TypecreeperReference

Gears24 forward and 6 reverseReference

PTO & Hydraulics

PTO (claimed)179.0 kWReference

PTO (tested)204.9 kWReference

Typeclosed center load sensingReference

Pressure202.0 barReference

Valves3 to 5Reference

Pump flow146.1 lpmReference

Pump flow257.4 lpmReference

Rear TypeIII/IIINReference

Controlposition and electronic draft controlReference

Rear lift (at 24"/610mm)7243 kgReference

Rear lift (at 24"/610mm)8128 kgReference

Rear lift (at 24"/610mm)7416 kgReference

Front HitchIIINReference

Front lift (at 24"/610mm)4166 kgReference

Front lift (at 24"/610mm)4286 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type1000 (1.75)Reference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@2000Reference

Engine RPM1000@2000Reference

Power at rated PTO speed204.9 kWReference

Dimensions

Wheelbase307 cmReference

Wheelbase328 cmReference

Weight20200 to 21175 poundsReference

Front tire16.9R30Reference

Rear tire20.8R42Reference

Standard tires (ag)Front: 16.9R30. Rear: 20.8R42Reference

Length518 cmReference

Height314 cmReference

Ground clearance42 cmReference

Front axle4WDReference

Front axleSuperSteerReference

Front axleTerraGlideReference

Rear tread162 to 327 cmReference

Shipping9162 kgReference

Shipping9525 kgReference

Shipping9274 kgReference

Operating9604 kgReference

Ballasted14222 kgReference

New Holland TG285 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps135Reference

Batteries2Reference

Battery CCA1000Reference

Battery volts12Reference

Battery Group31Reference

Test results

Diesel 18-speed 4WDSeptember 11 - October 27, 2003Link: OCED Tractor Test 1832 fileReference

PTO performanceReference

Fuel use56.0 l/hourReference

Fuel use50.7 l/hourReference

Drawbar performanceReference

Fuel use51.1 l/hourReference

Gear 7 used for power test.Reference

Max pull9409 kgReference

Gear 6 used for pull test.Reference

Speeds

With 20.8R42 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
