Tractor · 2006Unverified

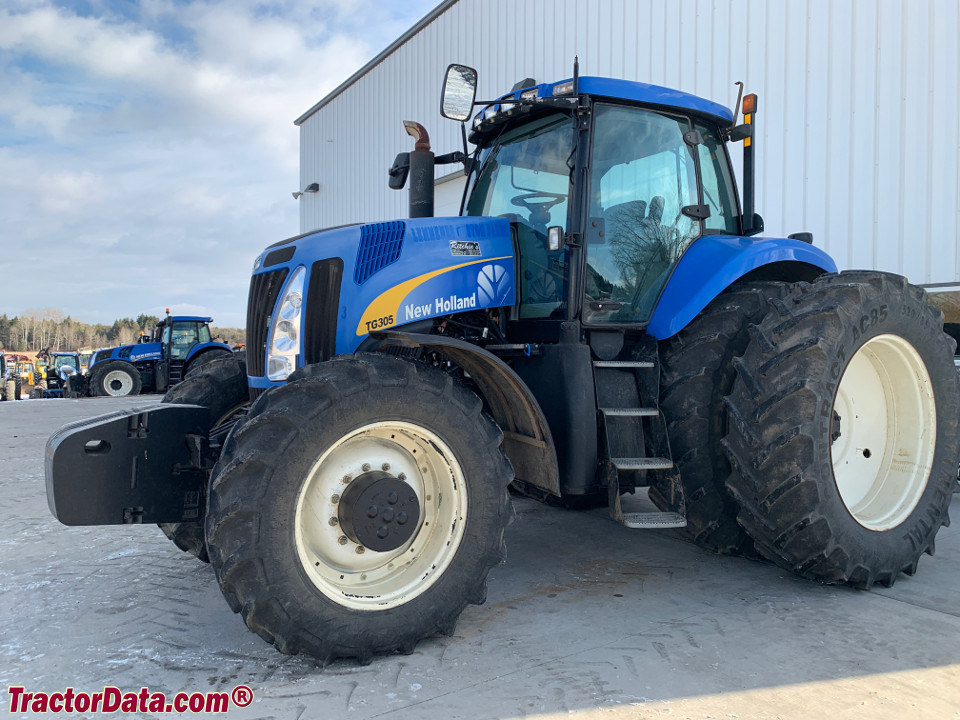

New Holland TG305
New Holland TG305 — TG II Series · 257 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
257 hp
Max power
161.3 kW
Weight
20370 to 21665 pounds
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Row-Crop tractorReference
Built in Racine, Wisconsin, USAReference
Four-wheel driveReference
Power steeringReference
Differential hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
CNH 8.3L 6-cyl dieselReference
Fuel tank681.3 LReference
Engine226.7 kWReference
Drawbar (tested)161.3 kWReference
CNHReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement8.3 LReference
Bore/Stroke114 x 135 mmReference
Power226.7 kWReference
Compression17.5:1Reference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Power at rated engine speed191.8 kWReference
Max power161.3 kWReference
Transmission
18-speed full power shiftReference
19-speed full power shiftReference
23-speed full power shiftReference
Typefull power shiftReference
Gears18 forward and 4 reverseReference
Gears19 forward and 4 reverseReference
Gears23 forward and 6 reverseReference
PTO & Hydraulics
PTO (claimed)190.2 kWReference
PTO (tested)191.8 kWReference
Typeclosed center load sensing (CCLS)Reference
Valves3 to 5Reference
Total flow146.1 lpmReference
Total flow264.9 lpmReference
Rear TypeIIIN/IIIReference
Rear lift6790 kgReference
Rear lift8128 kgReference
Rear PTOindependentReference
Rear PTO Type1000 (1.75)Reference
Rear PTO Type540/1000 (1.375)Reference
Power at rated PTO speed219.5 kWReference
Dimensions
Wheelbase307 cmReference
Wheelbase328 cmReference
Weight20370 to 21665 poundsReference
Shipping9239 kgReference
Shipping9602 kgReference
Shipping9351 kgReference
Operating9827 kgReference
Ballasted15082 kgReference
New Holland TG305 attachments
front-end loaderReference
Electrical
Charging systemalternatorReference
Charging amps150Reference
Charging amps175Reference
Capacities
Max capacity15649 kgReference
Test results
Diesel 19-speed 4WDOctober 26 - November 14, 2007Link: OCED Tractor Test 1915 fileReference
PTO performanceReference
Fuel use61.3 l/hourReference
Fuel use62.8 l/hourReference
Drawbar performanceReference
Fuel use60.9 l/hourReference
Gear 9 used for power test.Reference
Max pull15295 kgReference
Gear 3 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
