Tractor · 2014Unverified

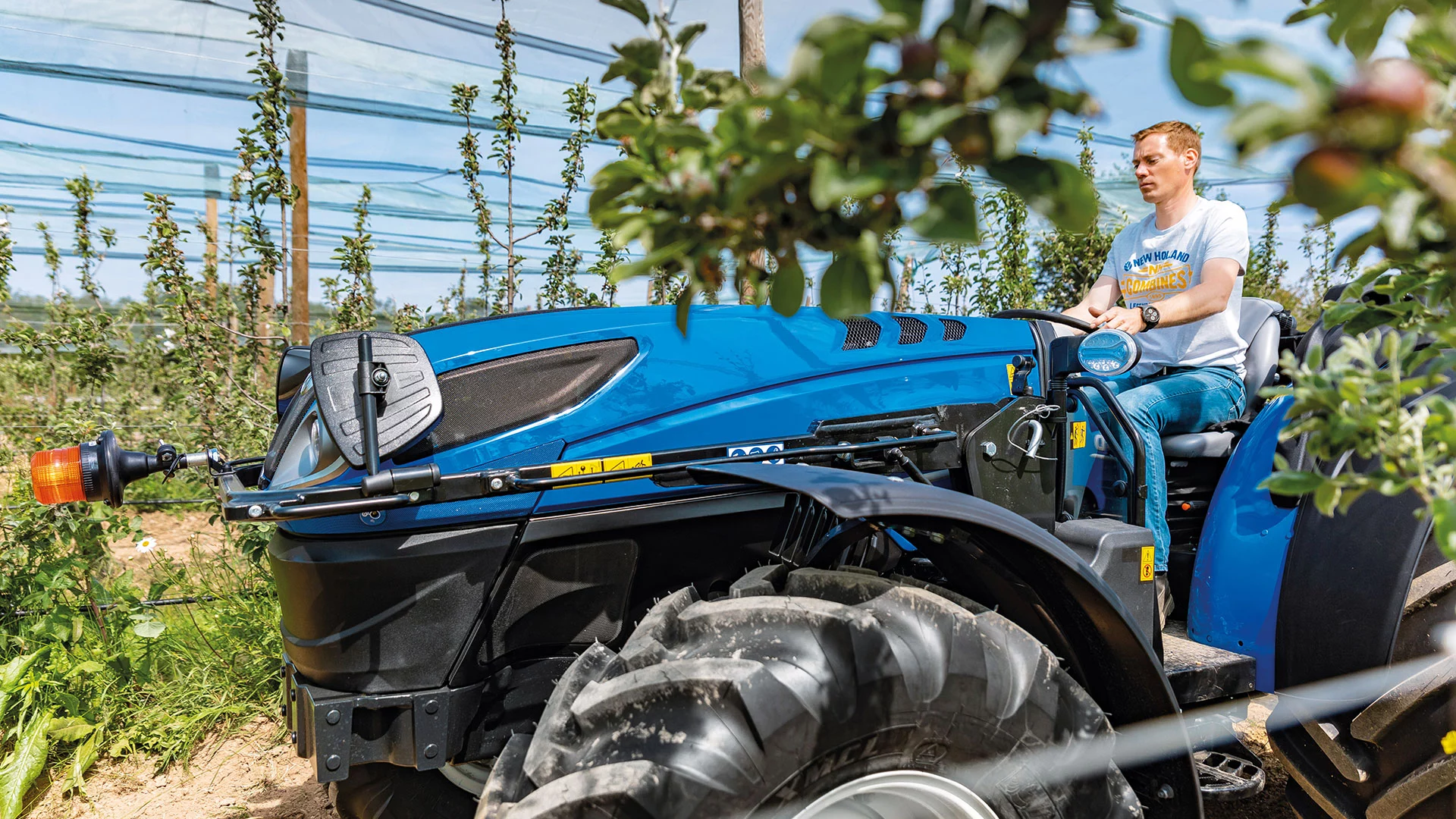

New Holland TI4.50
New Holland TI4.50 — TI4 Series · 47 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
47 hp
Weight
1650 kg
Hover a source tag to verify
Overview
DistributorNew Holland (a part of CNH)Reference
ManufacturerGoldoniReference
Orchard/Vineyard tractorReference
Built in ItalyReference
Drive4x4 4WDReference
Final drivesmechanical front and rearReference
Hydraulic wet disc brakesReference
Two-post folding mid-mount ROPS.Reference
Engine
VM Motori 2.1L 3-cyl dieselReference
Fuel tank50.0 LReference
Engine (gross)35.0 kWReference
VM Motori D703Reference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement2.1 LReference
Bore/Stroke94 x 100 mmReference
EmissionsStage 3AReference
Rated Power (gross)35.0 kWReference
Fuel systemdirect injectionReference
Rated RPM2600Reference
Starter typeelectricReference
Transmission
16-speedReference
12-speedReference
Gears16 forward and reverseReference
Clutch230mm dry discReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
Valves2Reference
Pump flow37.9 lpmReference
Rear TypeI/INReference
Rear lift1500 kgReference
Rear PTOindependent (rigid)Reference
Rear PTOtransmission (articulated)Reference
Clutchelectro-hydraulic wet disc (rigid)Reference
Clutchmechanical dry disc (articulated)Reference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase137 cmReference
Weight1650 kgReference
Front tire280/70-18Reference
Rear tire270/70-18Reference
Standard tires (ag)Front: 280/70-18. Rear: 270/70-18Reference
Optional tires (ag)Front: 300/70-20. Rear: 300/70-20Reference
Length325 cmReference
Width142 cmReference
Width119 cmReference
Ground clearance24 cmReference
Front tread102 to 128 cmReference
Front tread87 to 114 cmReference
Rear tread102 to 128 cmReference
Rear tread87 to 114 cmReference
Steering wheel119 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
New Holland TI4.50 Height
ROPS213 cmReference
ROPS215 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
