Tractor · 2002Unverified

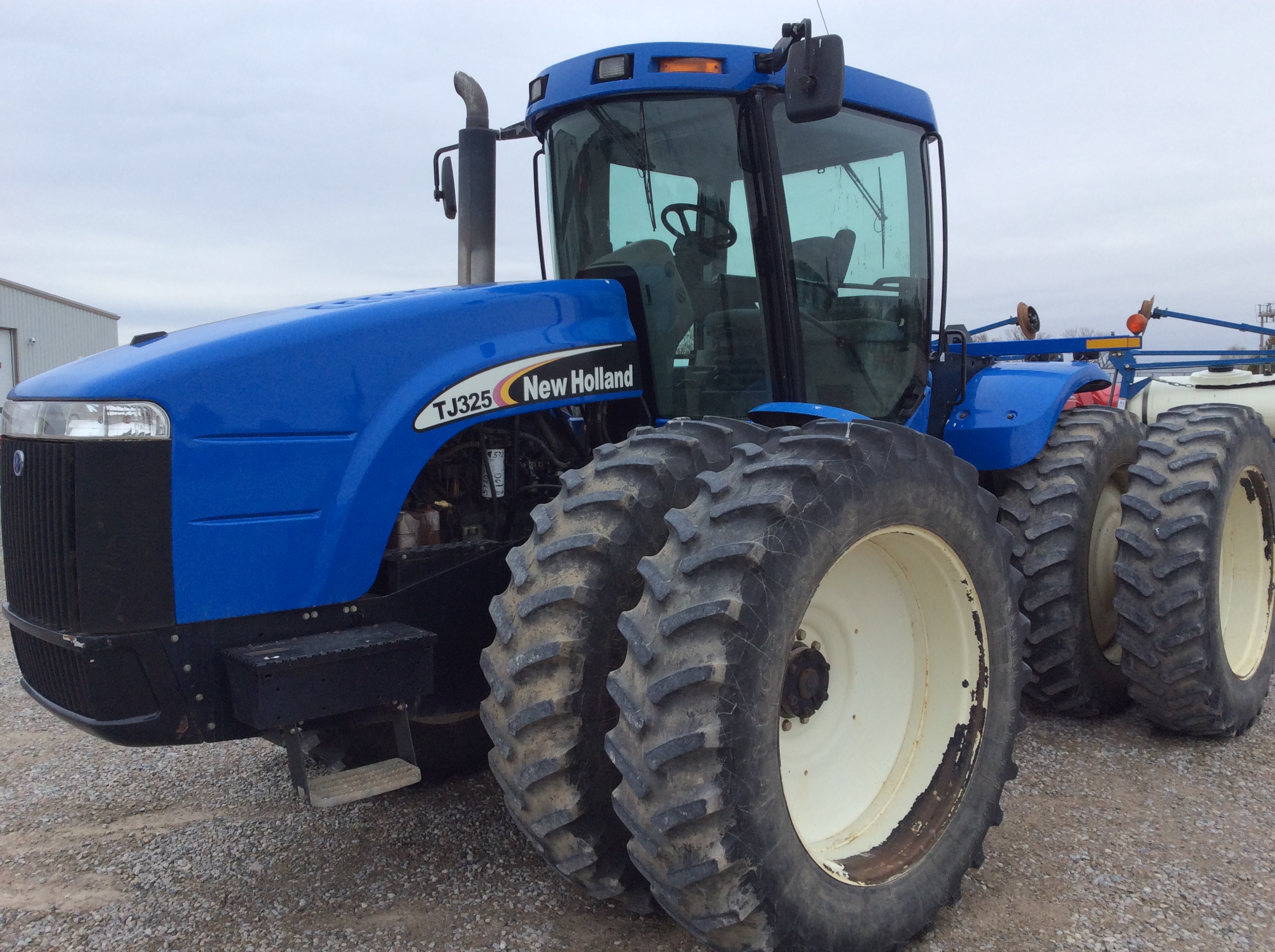

New Holland TJ325
New Holland TJ325 — TJ I Series · 292 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
292 hp
Max power
239.2 kW
Weight
14481 kg
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
The New Holland TJ325 is the same as the CaseIH STX325.Reference
Four-wheel driveReference
Final drivesinboard planetaryReference
Steeringhydrostatic powerReference
Integrated hydraulic wet disc brakesReference
Cab standardReference
Variants
STX325similar CaseIH modelReference
Engine
CDC 8.9L 6-cyl dieselReference
Fuel tank757.0 LReference
Engine242.4 kWReference
Drawbar (tested)194.5 kWReference
CDC 6TAA-9004Reference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement8.9 LReference
Bore/Stroke114 x 145 mmReference
Power242.4 kWReference
Air cleanerdual paper elementsReference
Compression16.5:1Reference
Rated RPM2000Reference
Torque1559.4 NmReference
Starter volts12Reference
Oil capacity27.6 LReference
Coolant capacity47.3 LReference
Max power239.2 kWReference
Power at rated engine speed217.6 kWReference
Max power194.5 kWReference
Transmission
16-speed full powershiftReference
24-speedReference
Typefull powershiftReference
Gears16 forward and 2 reverseReference
TransmissionsynchroshiftReference
Gears24 forward and 6 reverseReference
PTO & Hydraulics
PTO (claimed)201.3 kWReference
PTO (tested)239.2 kWReference
Typeclosed center load sensingReference
Rear valves4 to 7Reference
SCV flow132.5 lpmReference
Total flow151.4 lpmReference
Total flow208.2 lpmReference
Total flow340.7 lpmReference
Rear TypeIVN/IIIReference
Rear lift (at 24"/610mm)6577 kgReference
Rear PTOindependentReference
Rear PTO Type1000 (1.75)Reference
Dimensions
Wheelbase353 cmReference
Weight14481 kgReference
Front tire18.4R46Reference
Rear tire18.4R46Reference
Ag front18.4R46Reference
Ag rear18.4R46Reference
Length750 cmReference
Height368 cmReference
Operating weight14481 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps135Reference
Charging amps185Reference
Battery CCA1000Reference
Test results
Diesel 16-speed 4WDOctober 4 - 12, 2001Link: Nebraska Tractor Test 1797 fileReference
PTO performanceReference
Fuel use65.1 l/hourReference
Fuel use60.9 l/hourReference
Drawbar performanceReference
Fuel use61.7 l/hourReference
Gear 5 used for power test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
