Tractor · 2006Unverified

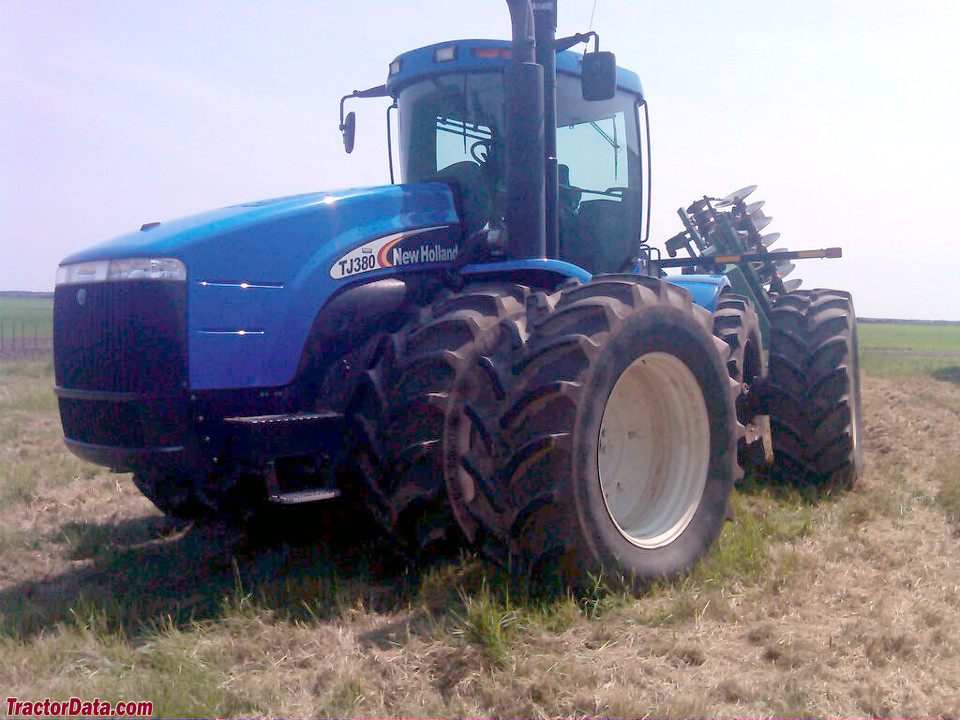

New Holland TJ380
New Holland TJ380 — TJ II Series · 347 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
347 hp
Max power
291.5 kW
Weight
18872 kg
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Integral hydraulic wet disc brakesReference
Cab standard with heat and air-conditioningReference
Engine
Iveco 12.9L 6-cyl dieselReference
Fuel tank1135.5 LReference
Engine283.4 kWReference
Drawbar (tested)238.2 kWReference
IvecoReference
turbocharged aftercooled dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement12.9 LReference
Bore/Stroke135 x 150 mmReference
Power283.4 kWReference
Maximum Power311.7 kWReference
Compression16.5:1Reference
Rated RPM2000Reference
Torque1914.7 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts24Reference
Oil capacity31.0 LReference
Coolant capacity79.9 LReference
Max power291.5 kWReference
Power at rated engine speed258.8 kWReference
Max power238.2 kWReference
Transmission
16-speed full power shiftReference
24-speed full synchro shiftReference
Typefull power shiftReference
Gears16 forward and 2 reverseReference
Typefull synchro shiftReference
Gears24 forward and 6 reverseReference
PTO & Hydraulics
PTO (claimed)283.4 kWReference
PTO (tested)291.5 kWReference
Typeclosed center load sensing (CCLS)Reference
Pressure137.9 barReference
Valves4 to 9Reference
Pump flow124.9 lpmReference
Total flow151.4 lpmReference
Total flow208.2 lpmReference
Total flow340.7 lpmReference
Rear TypeIVN (optional)Reference
Rear lift (at 24"/610mm)8899 kgReference
Rear PTOindependentReference
Rear PTO Type1000 (optional)Reference
Dimensions
Wheelbase391 cmReference
Weight18872 kgReference
Front tire20.8R42Reference
Rear tire20.8R42Reference
Ag front20.8R42Reference
Ag rear20.8R42Reference
Length756 cmReference
Height381 cmReference
Operating weight18872 kgReference
Max weight20684 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps175Reference
Batteries2Reference
Battery volts12Reference
Battery AH1000Reference
Test results
Diesel 16-speed 4WDOctober 16 - 23, 2007Link: OCED Tractor Test 1908A fileReference
PTO performanceReference
Fuel use85.5 l/hourReference
Fuel use78.3 l/hourReference
Drawbar performanceReference
Fuel use77.6 l/hourReference
Gear 4 used for power test.Reference
Max pull18763 kgReference
Gear 2 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
