Tractor · 2002Unverified

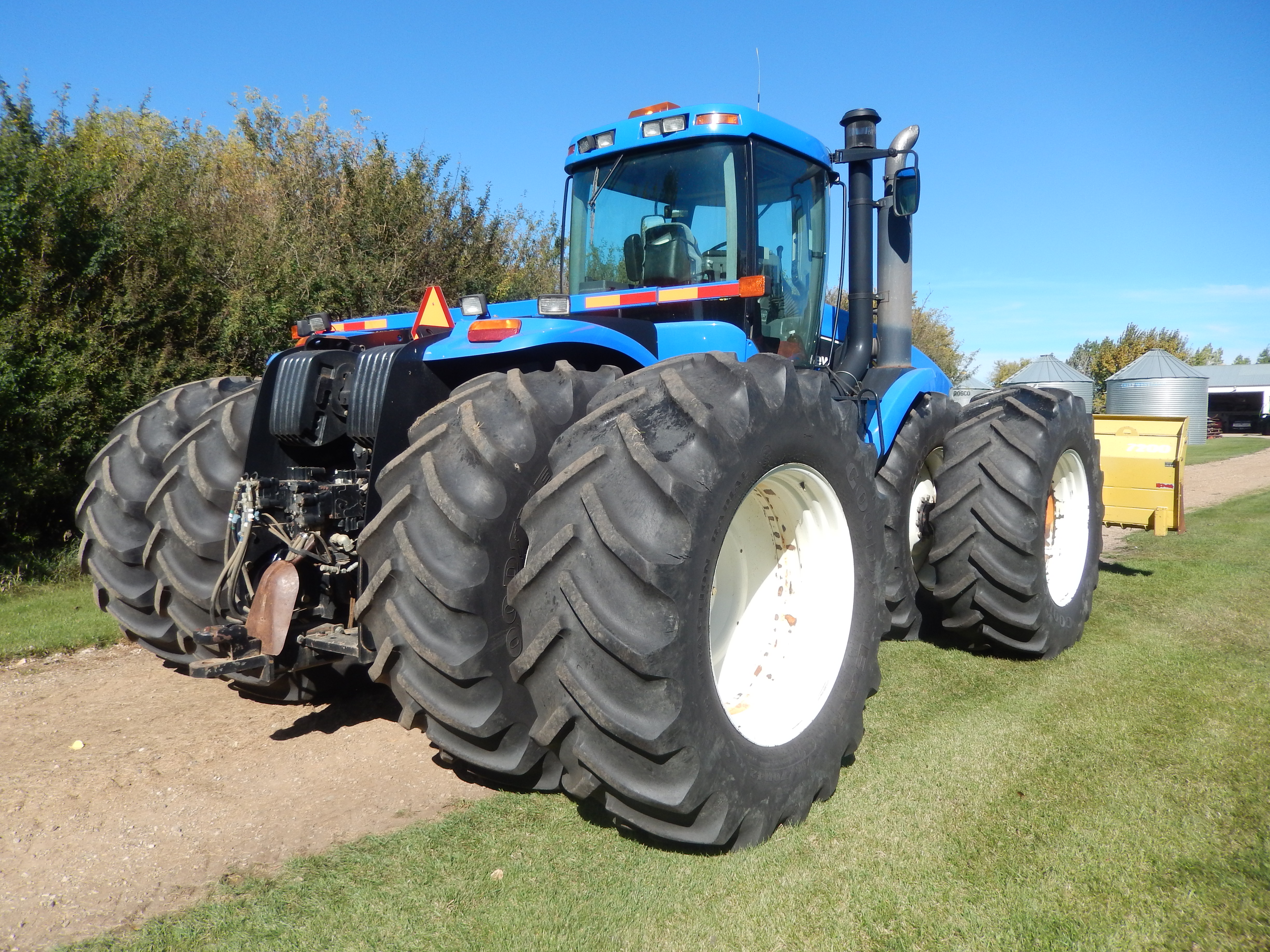

New Holland TJ425
New Holland TJ425 — TJ I Series · 370 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
370 hp
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Drive4x4 articualted 4WDReference
Final drivesinboard planetaryReference
Hydraulic wet disc brakesReference
Cab standard.Reference
Variants
STX425similar CaseIH modelReference
Engine
Cummins 14.9L 6-cyl dieselReference
Fuel tank1135.5 LReference
Engine316.9 kWReference
Cummins QSX 15Reference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooled inlineReference
When equipped with the manual transmission the TJ425 is limited to 1500 lb-ft of torque.Reference
Displacement14.9 LReference
Bore/Stroke137 x 169 mmReference
Power316.9 kWReference
Rated RPM2000Reference
Torque2161.5 NmReference
Oil capacity49.2 LReference
Coolant capacity20.0 LReference
Transmission
16-speed full power shiftReference
24-speedReference
Typefull power shiftReference
Gears16 forward and 2 reverseReference
Clutchelectro-hydraulic wet discReference
TransmissionsynchroshiftReference
Gears24 forward and 6 reverseReference
PTO & Hydraulics
PTO (claimed)275.9 kWReference
Typeclosed center load sensingReference
Rear valves4 to 7Reference
SCV flow132.5 lpmReference
Total flow151.4 lpmReference
Total flow208.2 lpmReference
Total flow340.7 lpmReference
Rear TypeIVN/IIIReference
Rear lift (at 24"/610mm)8845 kgReference
Rear PTOindependentReference
Rear PTO Type1000 (1.75)Reference
Dimensions
Wheelbase391 cmReference
Front tire18.4R46Reference
Rear tire18.4R46Reference
Ag front18.4R46Reference
Ag rear18.4R46Reference
Length806 cmReference
Height386 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps135Reference
Battery CCA1000Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
