Tractor · 2004Unverified

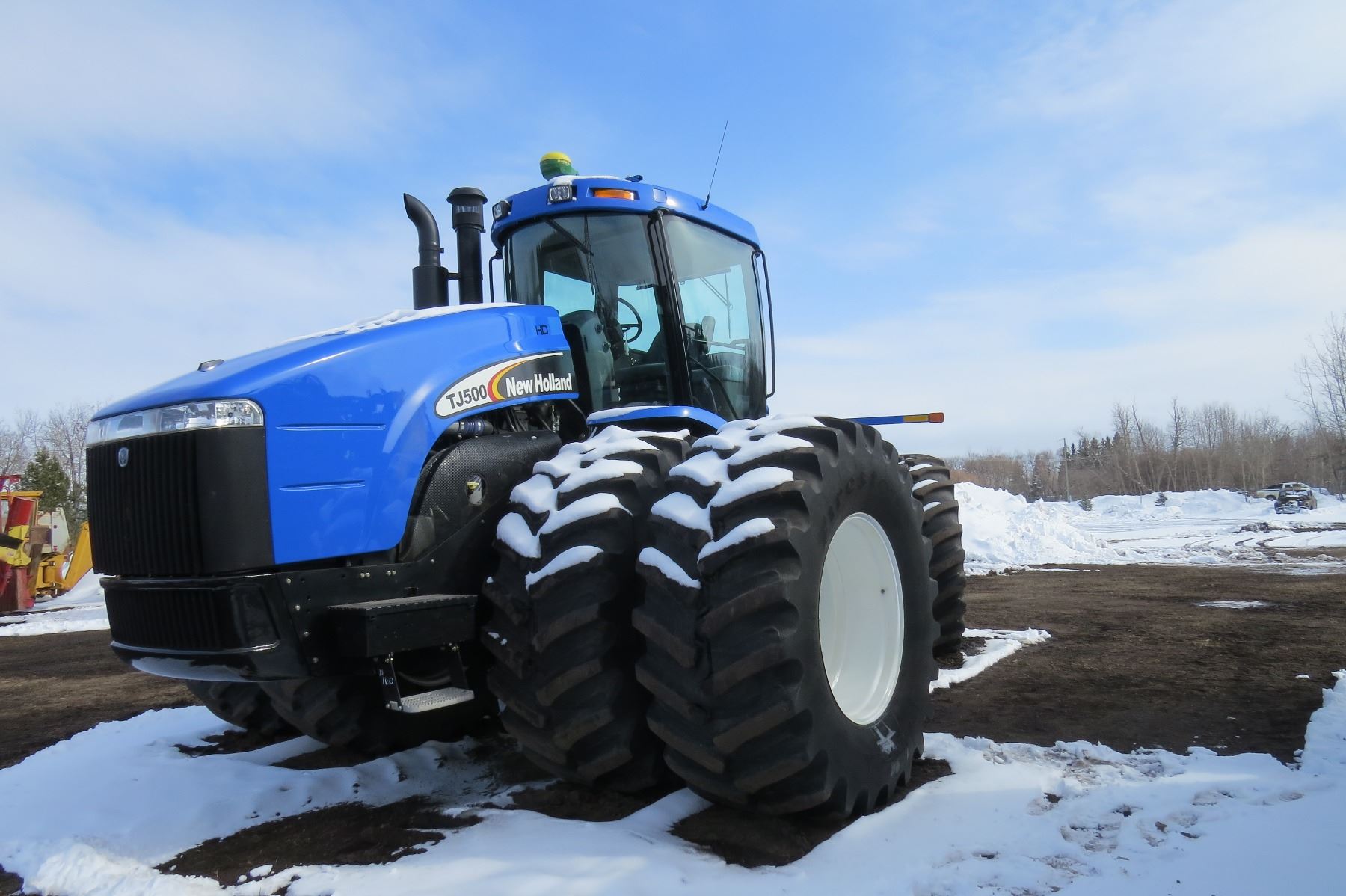

New Holland TJ500
New Holland TJ500 — TJ I Series · 440 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
440 hp
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Four-wheel driveReference
Final drivescompound planetaryReference
Hydraulic wet disc brakesReference
Cab standardReference
Variants
STX500similar CaseIH modelReference
Engine
Cummins 14.9L 6-cyl dieselReference
Fuel tank1135.5 LReference
Engine372.9 kWReference
Cummins QSX 15Reference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement14.9 LReference
Bore/Stroke137 x 169 mmReference
Power372.9 kWReference
Rated RPM2000Reference
Torque2363.5 NmReference
Starter volts24Reference
Oil capacity49.2 LReference
Coolant capacity20.0 LReference
Transmission
16-speed full power shiftReference
Typefull power shiftReference
Gears16 forward and 2 reverseReference
Clutchelectro-hydraulic wet discReference
PTO & Hydraulics
PTO (claimed)328.1 kWReference
Typeclosed center load sensingReference
Rear valves4 to 7Reference
SCV flow132.5 lpmReference
Total flow159.0 lpmReference
Total flow215.7 lpmReference
Total flow348.2 lpmReference
Rear PTOindependentReference
Rear PTO Type1000 (1.75)Reference
Dimensions
Wheelbase391 cmReference
Front tire18.4R46Reference
Rear tire18.4R46Reference
Ag front18.4R46Reference
Ag rear18.4R46Reference
Length806 cmReference
Height386 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps135Reference
Charging amps185Reference
Battery CCA1000Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
