Tractor · 2004Unverified

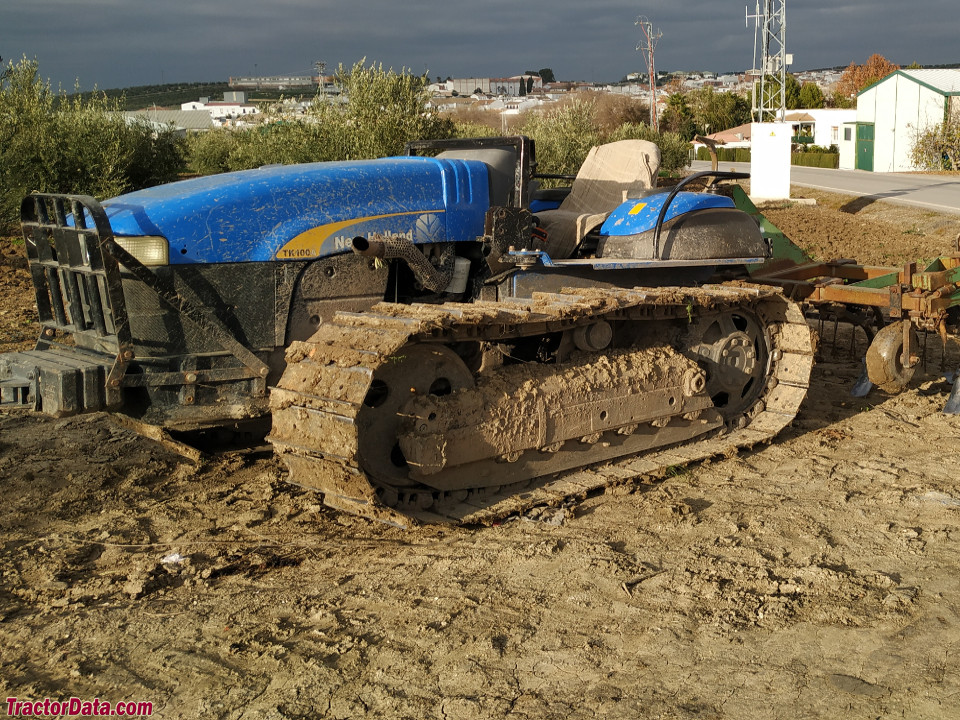

New Holland TK100
New Holland TK100 — TK-A Series · 93 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
93 hp
Weight
4037 kg
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Agricultural Crawler tractorReference
DrivecrawlerReference
Two-post mid-mount folding ROPS.Reference
Engine
Iveco 3.9L 4-cyl dieselReference
Fuel tank121.1 LReference
Engine (gross)69.4 kWReference
IvecoReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke104 x 115 mmReference
Power (gross)69.4 kWReference
Rated RPM2500Reference
Starter volts12Reference
Transmission
8-speed constant meshReference
Typeconstant meshReference
Gears8 forward and reverseReference
Clutch292mm dry discReference
PTO & Hydraulics
PTO (claimed)59.7 kWReference
Typeopen centerReference
Pressure190.0 barReference
Valves3Reference
Pump flow45.0 lpmReference
Total flow64.0 lpmReference
Steering flow18.9 lpmReference
Rear TypeII/IReference
Controltop-link draft sensingReference
Rear lift (at 24"/610mm)1848 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Engine RPM280mm dry discReference
Dimensions
Wheelbase158 cmReference
Weight4037 kgReference
17.7-inch tracksReference
Length336 cmReference
Width175 cmReference
Height (steering wheel)147 cmReference
Height (ROPS)234 cmReference
Gauge155 cmReference
Electrical
Charging systemalternatorReference
Charging amps45Reference
Battery CCA800Reference
Battery volts12Reference
New Holland TK100 Tracks
Width44 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
