Tractor · 2009Unverified

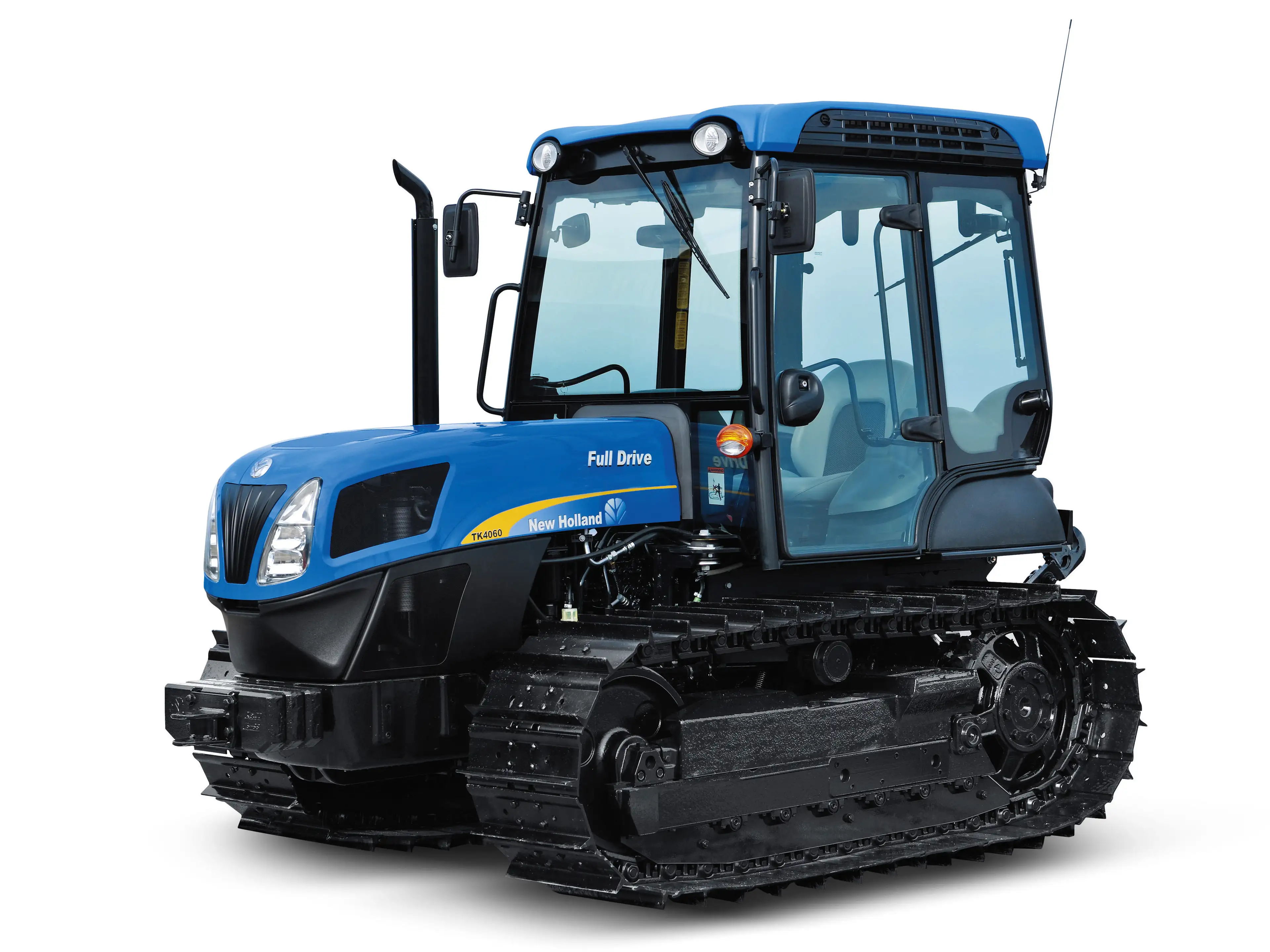

New Holland TK4030

Name: New Holland TK4030
Brand: New Holland

New Holland TK4030 — TK4000 Series · 76 hp. Reference specifications; pending source verification.

The New Holland TK4030 is a tractor with a rated power of 76 hp, positioned in the mid-range of its class. The TK4030 was manufactured between 2009 and 2017. It features a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with a tracked undercarriage and an 8-speed gearbox. The tractor's operating weight falls within the range of 7231 to 8047 pounds.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

76 hp

Max power

76.4 hp

Weight

7231 to 8047 pounds

Catalogue coverage

Variants represented

Richest spec table

92 rows

Recorded power

76 hp

Transmissions

8-speed unsynchronized

Production years

2009-2017

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Agricultural Crawler tractorReference

Built in Jesi, ItalyReference

DrivecrawlerReference

Two-post mid-mount folding ROPS.Reference

Variants

T4030wheeled tractorReference

TK4030crawlerReference

TK4030Fnarrow crawlerReference

TK4030Vultra-narrow crawlerReference

Engine

FPT 3.2L 4-cyl dieselReference

Fuel tank82.9 LReference

Engine (gross)57.0 kWReference

FPT F5CReference

turbocharged intercooled dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.2 LReference

Bore/Stroke99 x 104 mmReference

EmissionsTier IIIReference

Rated Power (gross)57.0 kWReference

Rated RPM2300Reference

Torque330.1 NmReference

Torque RPM1300Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders4 CylinderReference

Rated engine speed2,300 RPMReference

Emissions complianceTier IIIReference

Engine torque at rated speed110.4 kgReference

Bore and stroke3.898x4.094 inchesReference

Cooling systemliquid-cooledReference

Transmission

8-speed unsynchronizedReference

16-speed creeperReference

TypeunsynchronizedReference

Gears8 forward and reverseReference

TypecreeperReference

Gears16 forward and 8 reverseReference

forward and reverse optionsunsynchronized 8F and 8R | creeper 16F and 8RReference

Track Drive type4WDReference

PTO & Hydraulics

PTO (claimed)47.7 kWReference

Typeopen centerReference

Pressure190.0 barReference

Valves3Reference

Pump flow35.6 lpmReference

Total flow56.0 lpmReference

Steering flow20.4 lpmReference

Rear PTOindependentReference

Rear PTO Type540/540EReference

Dimensions

Weight7231 to 8047 poundsReference

13.8-inch tracksReference

Length317 cmReference

Width145 cmReference

TK4030V Width117 cmReference

TK4030F Width131 cmReference

Gauge109 cmReference

TK4030V Gauge89 cmReference

TK4030F Gauge100 cmReference

3650 kgReference

TK4030V3279 kgReference

TK4030F3360 kgReference

Steering wheel100 cmReference

TK4030V Steering wheel98 cmReference

TK4030F Steering wheel100 cmReference

Electrical

Charging systemalternatorReference

Charging amps120Reference

Battery CCA800Reference

Battery volts12Reference

New Holland TK4030 Tracks

Width35 cmReference

TK4030V width26 cmReference

TK4030F width30 cmReference

New Holland TK4030 Height

ROPS211 cmReference

TK4030V ROPS208 cmReference

TK4030F ROPS209 cmReference

General

Make & ModelNew HollandReference

Rollover protective structureTwo-post mid-mount folding ROPSReference

Country of manufacturerItalyReference

Capacities

Capacity195 ciReference

Power

Max Power76.4 hpReference

PTO

PTO Power64 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Hydraulics

Pump Rated Output (total)14.8 gpmReference

Hydraulics Typeopen centerReference

Maximum operating pressure2,755 psiReference

Remote Valves3 ValvesReference

Steering & Implements flow5.4 gpm (9.4 gpm)Reference

Dimensions & weight

Height Over ROPS211.6 cmReference

Overall Length317.2 cmReference

Overall Width145 cmReference

Overall weight3,650.1 kgReference

Track width35.1 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
