Tractor · 2009Unverified

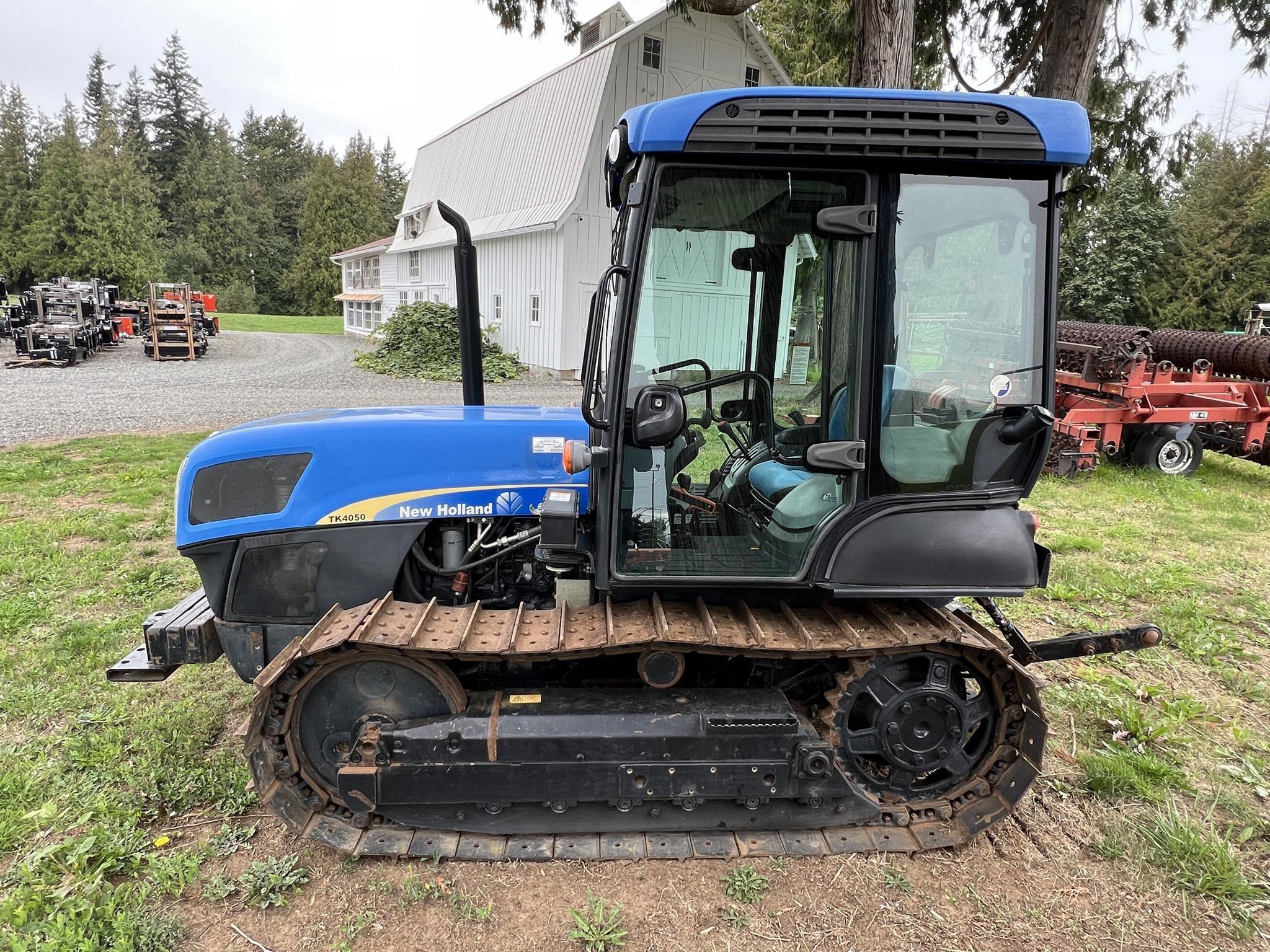

New Holland TK4050

Name: New Holland TK4050
Brand: New Holland

New Holland TK4050 — TK4000 Series · 94 hp. Reference specifications; pending source verification.

The New Holland TK4050 is a tractor with an output of approximately 94 hp, a mid-range figure for its class. It was manufactured from 2009 to 2017. The tractor features a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, coupled with a tracked undercarriage and an 8-speed gearbox. Its operating weight is listed as 9193 to 9634 pounds.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

94 hp

Max power

93.9 hp

Weight

9193 to 9634 pounds

Catalogue coverage

Variants represented

Richest spec table

90 rows

Recorded power

94 hp

Recorded weight

4169 kg

Transmissions

8-speed unsynchronized

Production years

2009-2017

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Agricultural Crawler tractorReference

Built in Jesi, ItalyReference

DrivecrawlerReference

Two-post mid-mount folding ROPS. Cab available.Reference

Variants

T4050standard chassisReference

T4050Fnarrow chassisReference

T4050Vultra-narrow chassisReference

TK4050crawlerReference

TK4050Mmountain crawler (wide)Reference

Engine

FPT 4.5L 4-cyl dieselReference

Fuel tank109.8 LReference

Engine (gross)70.0 kWReference

FPT NEFReference

turbocharged intercooled dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.5 LReference

Bore/Stroke104 x 132 mmReference

EmissionsTier IIIReference

Rated Power (gross)70.0 kWReference

Rated RPM2500Reference

Torque380.1 NmReference

Torque RPM1300Reference

StarterelectricReference

Starter volts12Reference

Fuel TypeDieselReference

No of Cylinders4 CylinderReference

Rated engine speed2,500 RPMReference

Emissions complianceTier IIIReference

Engine torque at rated speed127.1 kgReference

Bore and stroke4.094x5.196 inchesReference

Cooling systemliquid-cooledReference

Transmission

8-speed unsynchronizedReference

16-speed creeperReference

TypeunsynchronizedReference

Gears8 forward and reverseReference

TypecreeperReference

Gears16 forward and 8 reverseReference

Transmission TypeSync ShuttleReference

forward and reverse optionsunsynchronized 8F and 8R | creeper 16F and 8RReference

Track Drive type4WDReference

PTO & Hydraulics

PTO (claimed)61.9 kWReference

Typeopen centerReference

Pressure190.0 barReference

Valves3 to 4Reference

Pump flow45.0 lpmReference

Total flow67.0 lpmReference

Steering flow22.0 lpmReference

Rear PTOindependentReference

Rear PTO Type540/540EReference

Rear PTO Type540/1000Reference

Dimensions

Weight9193 to 9634 poundsReference

13.8-inch tracksReference

Length334 cmReference

Width140 cmReference

ROPS Weight4169 kgReference

Cab Weight4369 kgReference

Gauge109 cmReference

Steering wheel103 cmReference

Electrical

Charging systemalternatorReference

Charging amps120Reference

Battery CCA800Reference

Battery volts12Reference

Total cold cranking ampsOption 1: 800 CCA\\nOption 2: 800Reference

New Holland TK4050 Tracks

Width35 cmReference

Width30 cmReference

TK4050M width40 cmReference

New Holland TK4050 Height

ROPS234 cmReference

Cab194 cmReference

General

Make & ModelNew HollandReference

Rollover protective structureTwo-post mid-mount folding ROPSReference

Country of manufacturerItalyReference

Capacities

Capacity274.6 ciReference

Power

Max Power93.9 hpReference

PTO

PTO Power83 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Hydraulics

Pump Rated Output (total)17.7 gpmReference

Hydraulics Typeopen centerReference

Maximum operating pressure2,755 psiReference

Remote Valves3 to 4 ValvesReference

Steering & Implements flow5.8 gpm (11.9 gpm)Reference

Dimensions & weight

Height Over ROPS235 cmReference

Height Over Cab194.3 cmReference

Overall Length334 cmReference

Overall Width141 cmReference

Track width40.1 cmReference

Operator station

Cab AvailabilityAvailableReference

Steering & brakes

Steering typePowerReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
