Tractor · 2009Unverified

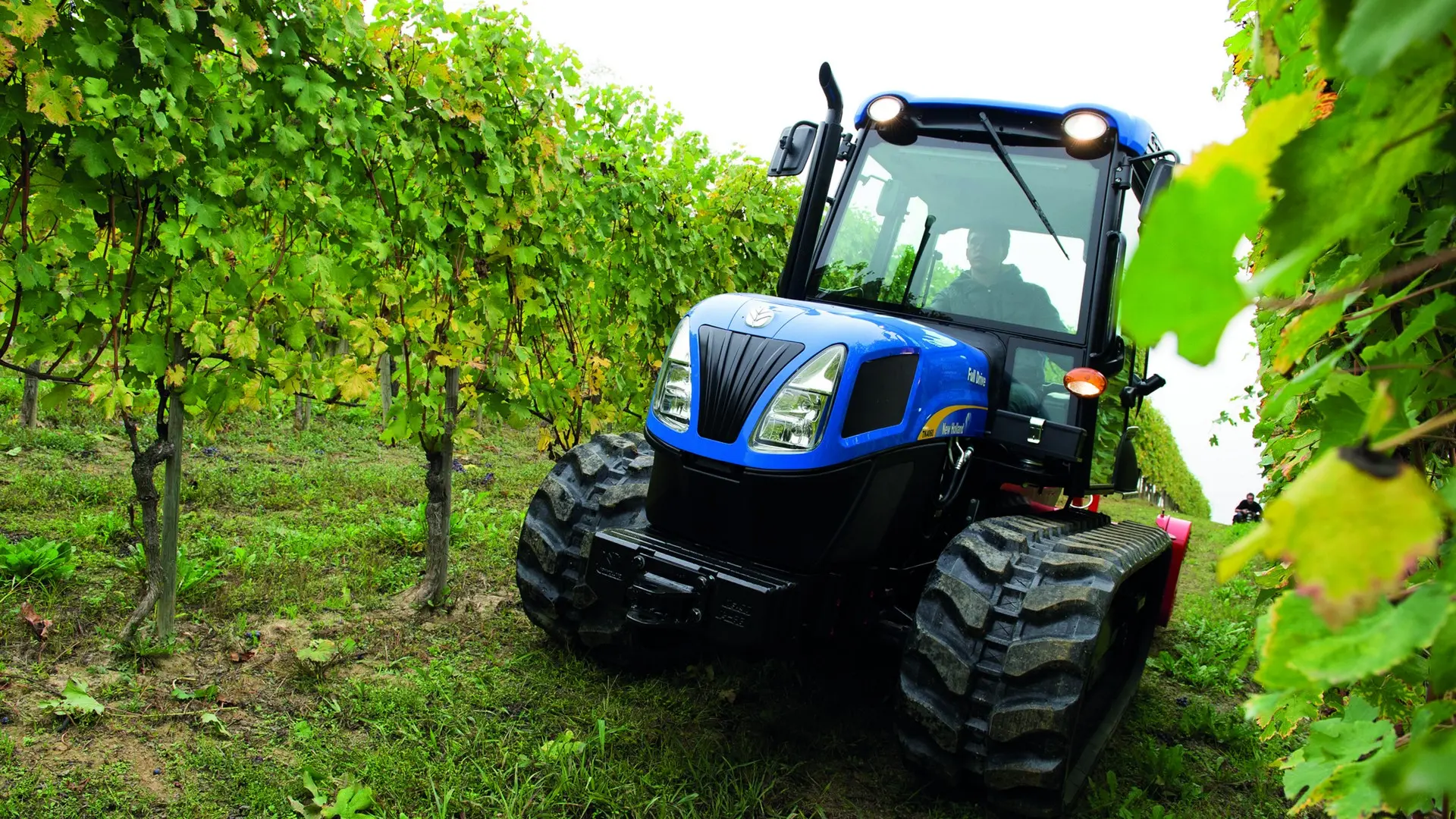

New Holland TK4050M
New Holland TK4050M — TK4000 Series · 94 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
94 hp
Weight
9480 to 9921 pounds
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Agricultural Crawler tractorReference
Built in Jesi, ItalyReference
DrivecrawlerReference
Two-post mid-mount folding ROPS. Cab available.Reference
Variants
T4050standard chassisReference
T4050Fnarrow chassisReference
T4050Vultra-narrow chassisReference
TK4050crawlerReference
TK4050Mmountain crawler (wide)Reference
Engine
FPT 4.5L 4-cyl dieselReference
Fuel tank109.8 LReference
Engine (gross)70.1 kWReference
FPT NEFReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Power (gross)70.1 kWReference
Rated RPM2500Reference
Starter volts12Reference
Transmission
8-speed unsynchronizedReference
16-speed creeperReference
TypeunsynchronizedReference
Gears8 forward and reverseReference
TypecreeperReference
Gears16 forward and 9 reverseReference
PTO & Hydraulics
PTO (claimed)61.9 kWReference
Typeopen centerReference
Pressure190.0 barReference
Valves3 to 4Reference
Pump flow45.0 lpmReference
Total flow67.0 lpmReference
Steering flow22.0 lpmReference
Rear PTOindependentReference
Rear PTO Type540/540EReference
Rear PTO Type540/1000Reference
Dimensions
Weight9480 to 9921 poundsReference
15.8-inch tracksReference
Length334 cmReference
Width175 cmReference
Height (ROPS)234 cmReference
Height (cab)194 cmReference
ROPS Weight4300 kgReference
Cab Weight4500 kgReference
Gauge130 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Battery CCA800Reference
Battery volts12Reference
New Holland TK4050M Tracks
Width40 cmReference
Width44 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
