Tractor · 2009Unverified

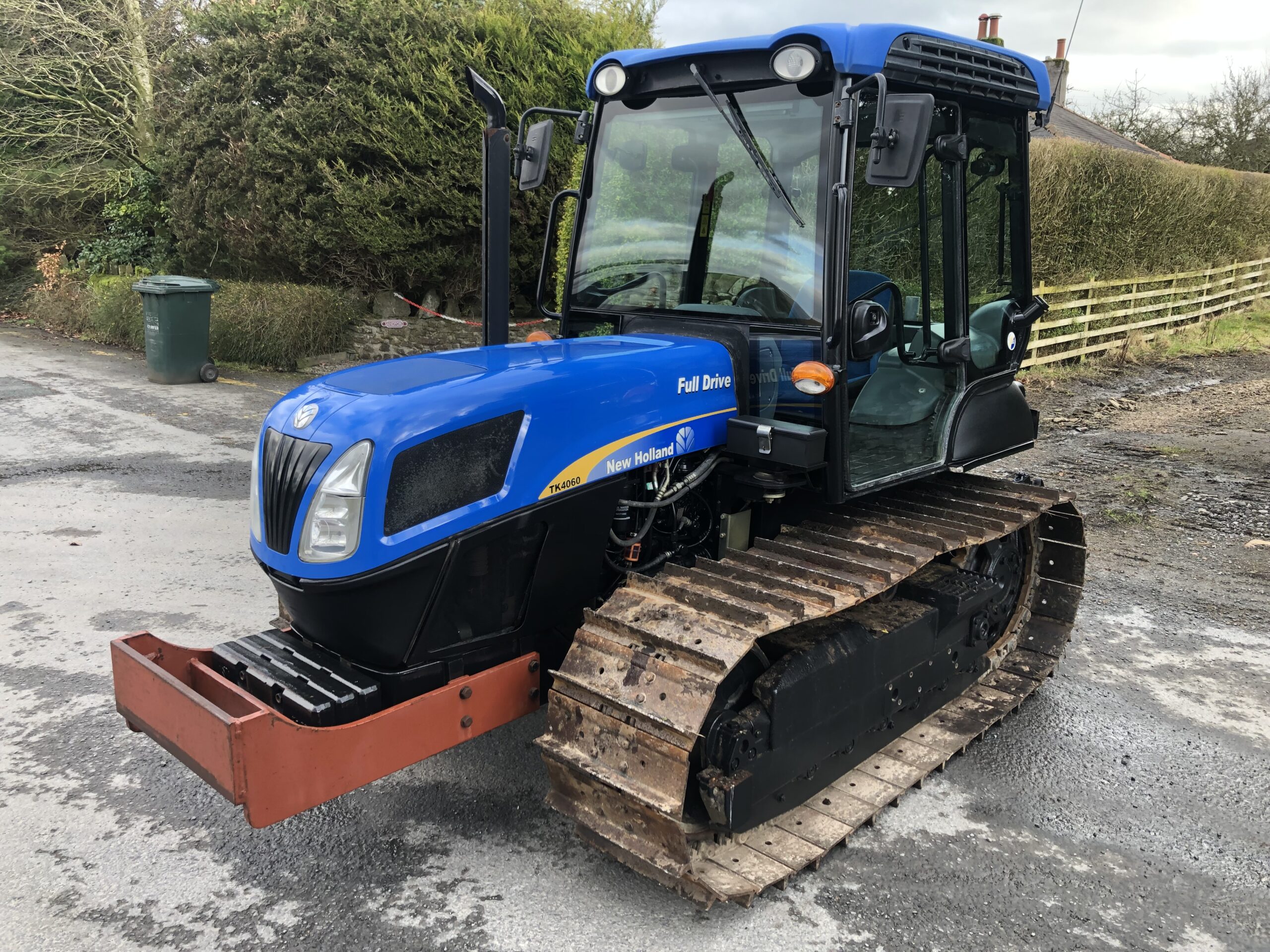

New Holland TK4060

Name: New Holland TK4060
Brand: New Holland

New Holland TK4060 — TK4000 Series · 99 hp. Reference specifications; pending source verification.

The New Holland TK4060 is a mid-range tractor model, rated at approximately 99 horsepower. It was manufactured between 2009 and 2017. The TK4060 features a 4-cylinder turbocharged intercooled diesel engine, coupled with a tracked undercarriage and an 8-speed gearbox. Its operating weight is specified as 10803 to 11244 pounds, suitable for operations of 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

99 hp

Max power

99.2 hp

Weight

10803 to 11244 pounds

Catalogue coverage

Variants represented

Richest spec table

82 rows

Recorded power

99 hp

Recorded weight

4900 kg

Transmissions

8-speed unsynchronized

Production years

2009-2017

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Agricultural Crawler tractorReference

Built in Jesi, ItalyReference

DrivecrawlerReference

Platform with folding ROPS. Cab available.Reference

Engine

FPT 4.5L 4-cyl dieselReference

Fuel tank109.8 LReference

Engine (gross)74.0 kWReference

FPT NEFReference

turbocharged intercooled dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.5 LReference

Bore/Stroke104 x 132 mmReference

EmissionsTier IIIReference

Rated Power (gross)74.0 kWReference

Rated RPM2500Reference

Torque410.1 NmReference

Torque RPM1300Reference

StarterelectricReference

Starter volts12Reference

Fuel TypeDieselReference

No of Cylinders4 CylinderReference

Rated engine speed2,500 RPMReference

Emissions complianceTier IIIReference

Engine torque at rated speed137.2 kgReference

Bore and stroke4.094x5.196 inchesReference

Cooling systemliquid-cooledReference

Transmission

8-speed unsynchronizedReference

16-speed creeperReference

TypeunsynchronizedReference

Gears8 forward and reverseReference

TypecreeperReference

Gears16 forward and 8 reverseReference

Transmission TypeSync ShuttleReference

forward and reverse optionsunsynchronized 8F and 8R | creeper 16F and 8RReference

Track Drive type4WDReference

PTO & Hydraulics

PTO (claimed)64.1 kWReference

Typeopen centerReference

Pressure190.0 barReference

Valves3 to 4Reference

Pump flow45.0 lpmReference

Total flow67.0 lpmReference

Steering flow22.0 lpmReference

Rear PTOindependentReference

Rear PTO Type540/540EReference

Rear PTO Type540/1000Reference

Dimensions

Weight10803 to 11244 poundsReference

17.7-inch tracksReference

Length342 cmReference

Width175 cmReference

ROPS Weight4900 kgReference

Cab Weight5100 kgReference

Gauge130 cmReference

Steering wheel103 cmReference

Electrical

Charging systemalternatorReference

Charging amps120Reference

Battery CCA800Reference

Battery volts12Reference

Total cold cranking amps800 CCAReference

New Holland TK4060 Tracks

Width44 cmReference

New Holland TK4060 Height

ROPS235 cmReference

Cab194 cmReference

General

Make & ModelNew HollandReference

Rollover protective structurePlatform with folding ROPSReference

Country of manufacturerItalyReference

Capacities

Capacity274.6 ciReference

Power

Max Power99.2 hpReference

PTO

PTO Power86 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Hydraulics

Pump Rated Output (total)17.7 gpmReference

Hydraulics Typeopen centerReference

Maximum operating pressure2,755 psiReference

Remote Valves3 to 4 ValvesReference

Steering & Implements flow5.8 gpm (11.9 gpm)Reference

Dimensions & weight

Height Over Cab194.3 cmReference

Height Over ROPS235.2 cmReference

Overall Length342.9 cmReference

Overall Width175 cmReference

Track width45 cmReference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
