Tractor · 2018Unverified

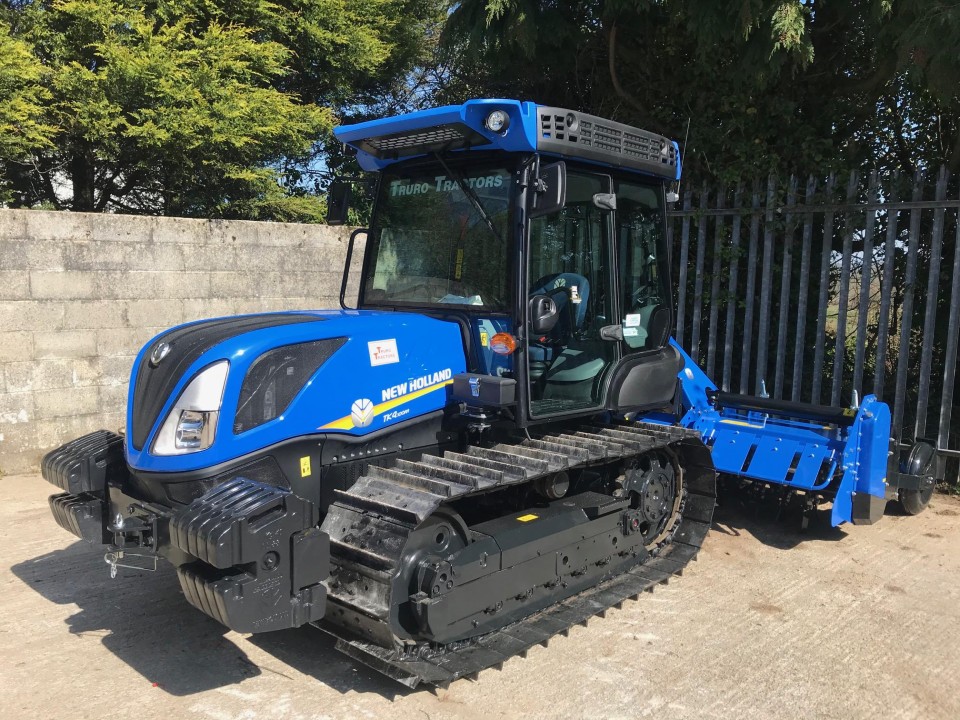

New Holland TK4.100
New Holland TK4.100 — TK4 Series · 98 hp. Reference specifications; pending source verification.
The New Holland TK4.100 is a tractor with an engine rating of 98 horsepower, a typical power output for its class. It was manufactured in 2018. The tractor features a diesel liquid-cooled engine and a tracked undercarriage with an 8-speed gearbox. It is suitable for operations on areas ranging from 200 to 800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
98 hp
Catalogue coverage
Variants represented
2
Richest spec table
30 rows
Recorded power
98 hp
Transmissions
8-speed shuttle
Production years
2018-2018
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerNew Holland (a part of CNH)Reference
Agricultural Crawler tractorReference
Original price was $79,776 in 2018Reference
DrivecrawlerReference
Two-post ROPS. Cab optional.Reference
Engine
dieselReference
Engine (gross)73.1 kWReference
liquid-cooledReference
EmissionsInterim Tier IVReference
Power (gross)73.1 kWReference
Rated RPM2300Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed shuttleReference
16-speed creeperReference
TypeshuttleReference
Gears8 forward and reverseReference
TypecreeperReference
Gears16 forward and 8 reverseReference
PTO & Hydraulics
PTO (claimed)64.1 kWReference
Rear valvesup to 4Reference
Pump flow45.0 lpmReference
Rear PTO Type540/540EReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase165 cmReference
43.3-inch tracksReference
Width140 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
New Holland TK4.100 Tracks
Width109 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
