Tractor · 2018Unverified

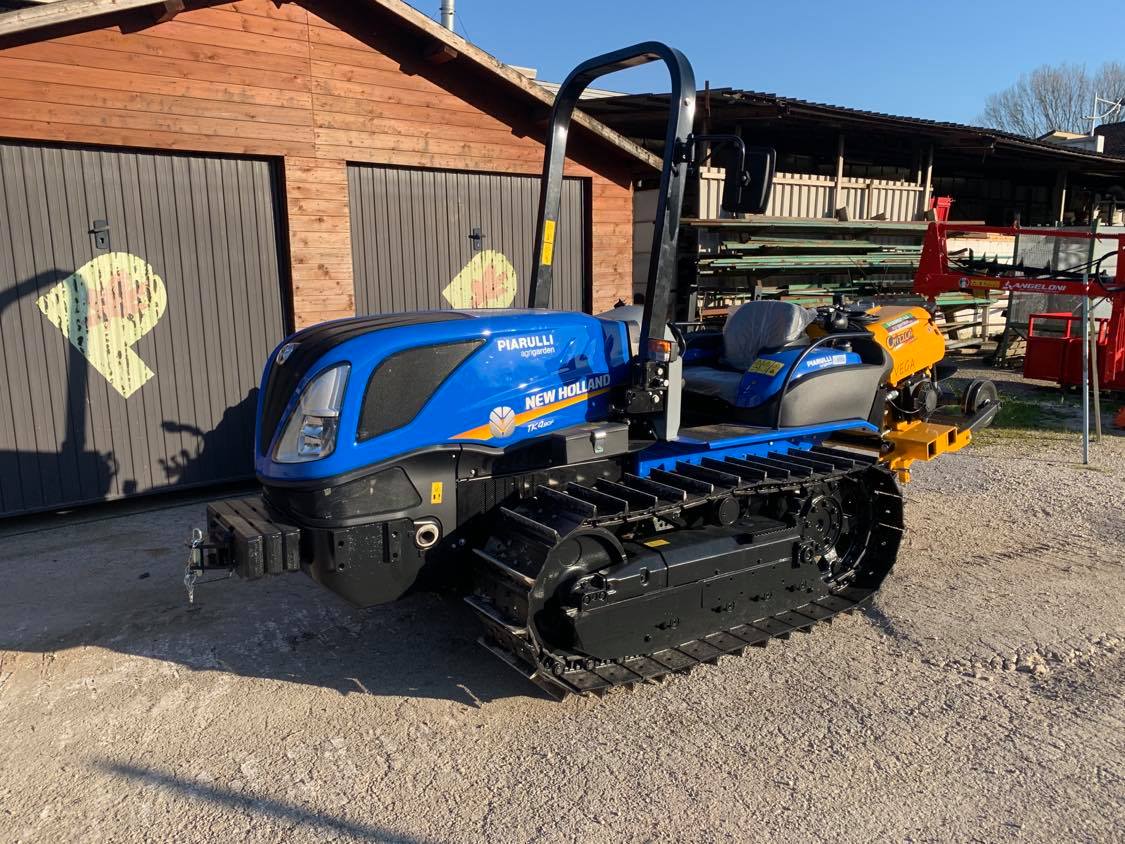

New Holland TK4.80F
New Holland TK4.80F — TK4 Series · 74 hp. Reference specifications; pending source verification.
The New Holland TK4.80F is a tractor with a rating of 74 hp, positioning it in the middle of its class in terms of power output. It was manufactured in 2018 and features a diesel liquid-cooled engine, which drives a tracked undercarriage through an 8-speed gearbox. This model is suitable for tasks covering areas of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
74 hp
Catalogue coverage
Variants represented
2
Richest spec table
29 rows
Recorded power
74 hp
Transmissions
8-speed shuttle
Production years
2018-2018
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerNew Holland (a part of CNH)Reference
Agricultural Crawler tractorReference
Original price was $79,848 in 2018Reference
DrivecrawlerReference
Two-post ROPS.Reference
Engine
dieselReference
Engine (gross)55.2 kWReference
liquid-cooledReference
EmissionsInterim Tier IVReference
Power (gross)55.2 kWReference
Rated RPM2300Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed shuttleReference
16-speed creeperReference
TypeshuttleReference
Gears8 forward and reverseReference
TypecreeperReference
Gears16 forward and 8 reverseReference
PTO & Hydraulics
PTO (claimed)48.5 kWReference
Rear valvesup to 3Reference
Pump flow35.6 lpmReference
Rear PTO Type540/540EReference
Dimensions
Wheelbase134 cmReference
43.3-inch tracksReference
Width139 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
New Holland TK4.80F Tracks
Width109 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
