Tractor · 1999Unverified

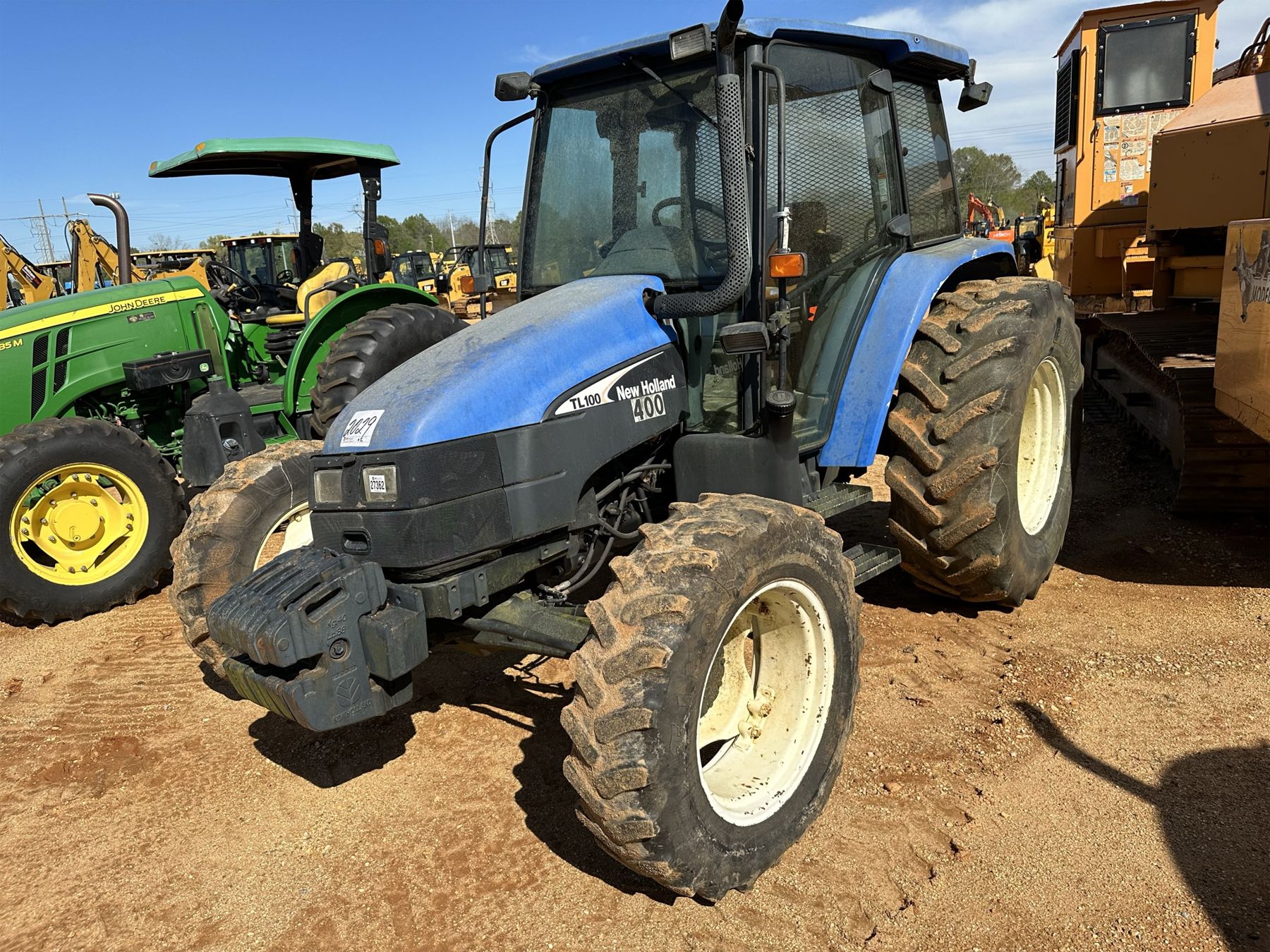

New Holland TL100
New Holland TL100 — TL Series · 83 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
83 hp
Max power
41.6 kW
Weight
6834 to 8795 pounds
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Utility tractorReference
Built in Jesi, ItalyReference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Differential lockmechanical rearReference
Power steeringReference
Differential hydraulic wet disc brakesReference
Two-post folding ROPS. Cab optional with air-conditioning.Reference
Engine
Iveco 3.9L 4-cyl dieselReference
Fuel tank126.8 LReference
Engine70.8 kWReference
Drawbar (tested)41.6 kWReference
Iveco 8045Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement3.9 LReference
Bore/Stroke104 x 115 mmReference
Power70.8 kWReference
Air cleanerdual paper elementsReference
Compression16.5:1Reference
Rated RPM2500Reference
Starter volts12Reference
Power at rated engine speed62.0 kWReference
Max power41.6 kWReference
Transmission
12-speed mechnical shuttleReference
24-speed two-speed power shiftReference
24-speed power shuttleReference
TransmissionSynchro CommandReference
Typemechnical shuttleReference
Gears12 forward and reverseReference
Available with creeper ranges providing 20 forward and 8 reverse speeds.Reference
Typetwo-speed power shiftReference
Gears24 forward and 12 reverseReference
Typepower shuttleReference
Gears24 forward and reverseReference
Four synchronized gears in three ranges with two-speed push-button power shift and power shuttle.Reference
PTO & Hydraulics
PTO (claimed)61.1 kWReference
PTO (tested)62.0 kWReference
Typeopen centerReference
Valves2 or 3Reference
Pump flow54.9 lpmReference
Total flow75.7 lpmReference
Steering flow20.8 lpmReference
Rear TypeIIReference
Rear lift3583 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2199Reference
Engine RPM1000@2381Reference
Power at rated PTO speed61.1 kWReference
Dimensions
2WD Wheelbase234 cmReference
4WD Wheelbase231 cmReference
Weight6834 to 8795 poundsReference
Front tire10.00-16Reference
2WD Rear tire600/65R-34Reference
2WD Standard tires (ag)Front: 10.00-16. Rear: 600/65R-34Reference
4WD Standard tires (ag)Front: 480/65R-24. Rear: 600/65R-34Reference
2WD Length391 cmReference
4WD Length406 cmReference
ROPS Width235 cmReference
Cab Width201 cmReference
Height (ROPS)267 cmReference
Height (Folded ROPS)240 cmReference
Height (cab)278 cmReference
Clearance (front axle)29 cmReference
Front tread140 to 216 cmReference
Rear tread141 to 220 cmReference
2WD ROPS Shipping3099 kgReference
4WD ROPS Shipping3400 kgReference
2WD Cab Shipping3299 kgReference
4WD Cab Shipping3600 kgReference
2WD Operating3690 kgReference
4WD Operating3989 kgReference
Ballasted4740 kgReference
New Holland TL100 attachments
front-end loaderReference
TL100 Serial Numbers
Location:Serial number stamped on the front axle support under the tractor hood.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
New Holland 52LA loaderReference
New Holland 52LA MSL loaderReference
Test results
Diesel 24-speed 4WDAugust 1999 - December 1999, Link: OCED Tractor Test 1916 fileReference
PTO performanceReference
Fuel use18.9 l/hourReference
Fuel use18.2 l/hourReference
Drawbar performanceReference
Fuel use17.4 l/hourReference
Gear 3ML used for power test.Reference
Max pull4320 kgReference
Gear 1MH used for pull test.Reference
Speeds
With 30KPH option and 600/65-34 rear tires. Reverse speeds are 10% slower than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
