Tractor · 2007Unverified

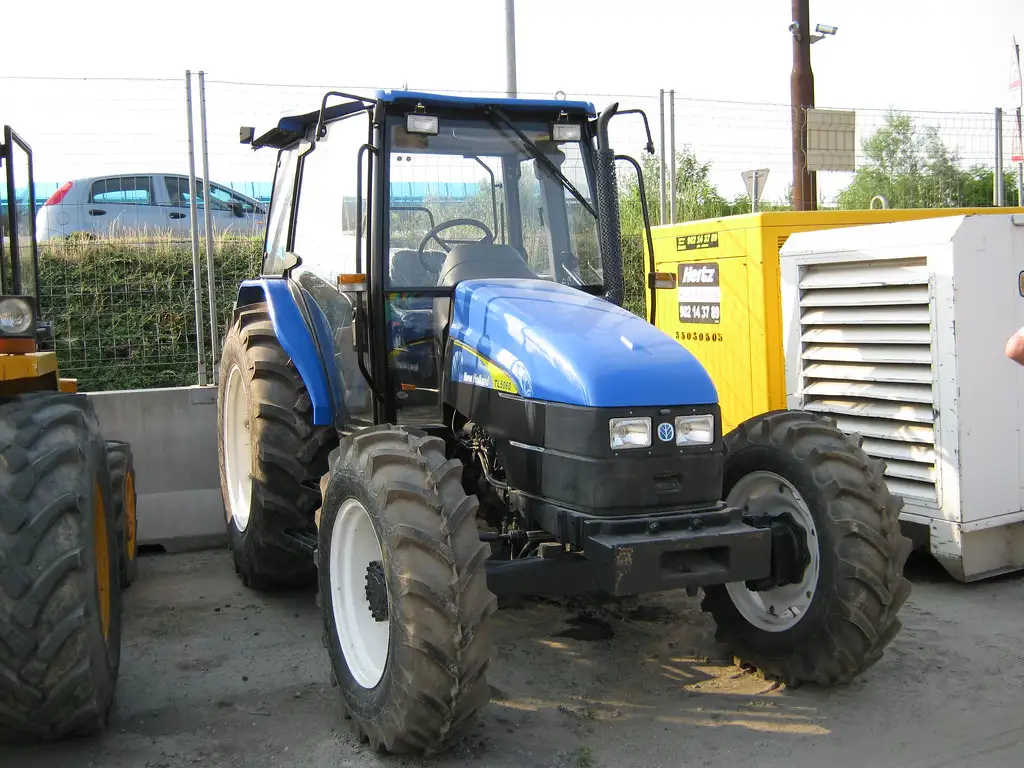

New Holland TL5050

Name: New Holland TL5050
Brand: New Holland

New Holland TL5050 — TL5000 Series · 80 hp. Reference specifications; pending source verification.

The New Holland TL5050 is a tractor with an 80 hp rated output, placing it in the middle of its class in terms of power. This model was manufactured from 2007 to 2011. It features a 4-cylinder turbocharged diesel liquid-cooled engine with mechanical front-wheel drive and a hydrostatic transmission. The listed weight range is 7022 to 8488 pounds, with an operating capacity of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

80 hp

Max power

90 hp

Weight

7022 to 8488 pounds

Catalogue coverage

Variants represented

Richest spec table

87 rows

Recorded power

80 hp

Transmissions

12-speed

Production years

2007-2011

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Utility tractorReference

Built in Shanghai, ChinaReference

Drive4x2 2WDReference

Drive4x4 MFWD 4WD (optional)Reference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

Open operator station. Optional ROPS. Optional cab with heat and air-conditioning.Reference

Engine

Weifang-Deutz 4.2L 4-cyl dieselReference

Fuel tank127.2 LReference

Engine67.1 kWReference

Weifang-Deutz TD 226B-4Reference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.2 LReference

Bore/Stroke105 x 120 mmReference

EmissionsTier 1Reference

Power67.1 kWReference

Fuel systemmechanical pumpReference

Air cleanerdry elementReference

Rated RPM2500Reference

Torque333.0 NmReference

Torque RPM1400Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders4 CylinderReference

Rated engine speed2,500 RPMReference

Emissions complianceTier 1Reference

Engine torque at rated speed111.4 kgReference

Bore and stroke4.134x4.724 inchesReference

Cooling systemliquid-cooledReference

Transmission

12-speedReference

TransmissionShuttle CommandReference

Gears12 forward and reverseReference

Clutchdual 305mm discReference

Transmission TypePower ShuttleReference

forward and reverse optionsShuttle Command- 12F and 12RReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)59.7 kWReference

Valves1 to 3Reference

Pump flow45.0 lpmReference

Rear TypeIIReference

Rear lift (at ends)3342 kgReference

Rear lift (at 24"/610mm)2039 kgReference

Rear PTO Type540Reference

Engine RPM540@2199Reference

Dimensions

2WD Wheelbase243 cmReference

4WD Wheelbase241 cmReference

Weight7022 to 8488 poundsReference

Front tire7.50-16Reference

Rear tire16.9-34 (2WD)Reference

Standard tires (ag)Front: 7.50-16. Rear: 16.9-34 (2WD)Reference

Standard tires (ag)Front: 13.6-24. Rear: 16.9-34 (4WD)Reference

Length391 cmReference

Height (exhaust)254 cmReference

2WD Clearance (front axle)48 cmReference

4WD Clearance (front axle)44 cmReference

2WD3185 kgReference

2WD cab3516 kgReference

4WD3600 kgReference

4WD cab3850 kgReference

Electrical

GroundnegativeReference

Battery volts12Reference

Battery AH120Reference

General

Make & ModelNew HollandReference

Rollover protective structureOpen operator station. Optional ROPSReference

Country of manufacturerChinaReference

Capacities

Capacity253.6 ciReference

Power

Max Power90 hpReference

PTO

PTO Power80 hpReference

Rear PTO RPM540 RPMReference

Engine Speed on Rear PTO speed540@2,199 RPMReference

Steering & brakes

Brakeshydraulic wet discReference

Steering typehydrostatic powerReference

Hydraulics

Remote Valves1 to 3 ValvesReference

Rear Hitch category (SAE designation)Category IIReference

Rear Hitch maximum lift capacity3,342.1 kgReference

Dimensions & weight

Wheelbase243.8 cmReference

Overall Height254 cmReference

Overall Length391.4 cmReference

Front axle clearance48 cmReference

Overall weight3,600.2 kgReference

Wheels & tyres

Rear Wheel Type16.9-34Reference

Front Wheel Type7.50-16Reference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
