Tractor · 2006Unverified

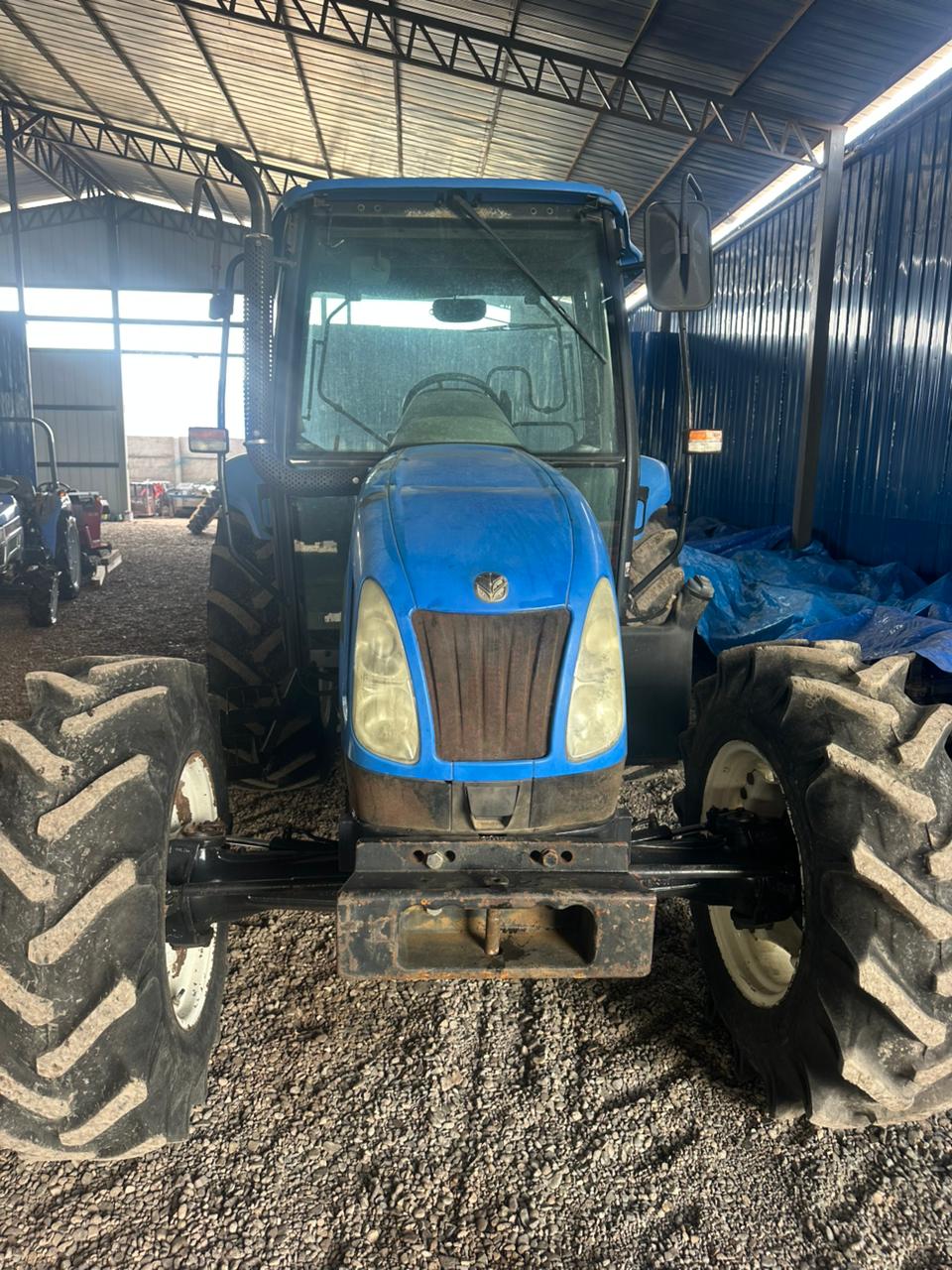

New Holland TL60E Exitus
New Holland TL60E Exitus — Model year 2006-20122013-2023 · 61 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
61 hp
Weight
6349 to 7011 pounds
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Built in Curitiba, BrazilReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post ROPS.Reference
Engine
MWM-International 2.9L 3-cyl dieselReference
Fuel tank98.8 LReference
Engine45.5 kWReference
MWM-InternationalReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke102 x 120 mmReference
Power45.5 kWReference
Air cleanerdual stage dryReference
Compression16.6:1Reference
Rated RPM2400Reference
Torque196.1 NmReference
Torque RPM1400Reference
Firing order1-3-2Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speedReference
Gears12 forward and 4 reverseReference
Clutchmechanical dry discReference
Four gears (1-4) in three ranges (I, II, III) plus reverse range.Reference
PTO & Hydraulics
Typeopen centerReference
Pressure190.2 barReference
Pump flow44.5 lpmReference
Rear TypeIIReference
Rear lift (at 24"/610mm)2760 kgReference
Rear PTOindependentReference
ClutchmechnicalReference
Rear PTO Type540 (1.375)Reference
Dimensions
2WD Wheelbase215 cmReference
4WD Wheelbase234 cmReference
Weight6349 to 7011 poundsReference
Front tire7.5x16Reference
2WD Rear tire18.4x30Reference
2WD Standard tires (ag)Front: 7.5x16. Rear: 18.4x30Reference
4WD Standard tires (ag)Front: 12.4x24. Rear: 18.4x30Reference
2WD Length370 cmReference
4WD Length402 cmReference
Height (ROPS)254 cmReference
Height (exhaust)270 cmReference
2WD Shipping weight2879 kgReference
4WD Shipping weight3180 kgReference
2WD Clearance (front axle)50 cmReference
4WD Clearance (front axle)41 cmReference
Electrical
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
