Tractor · 2002Unverified

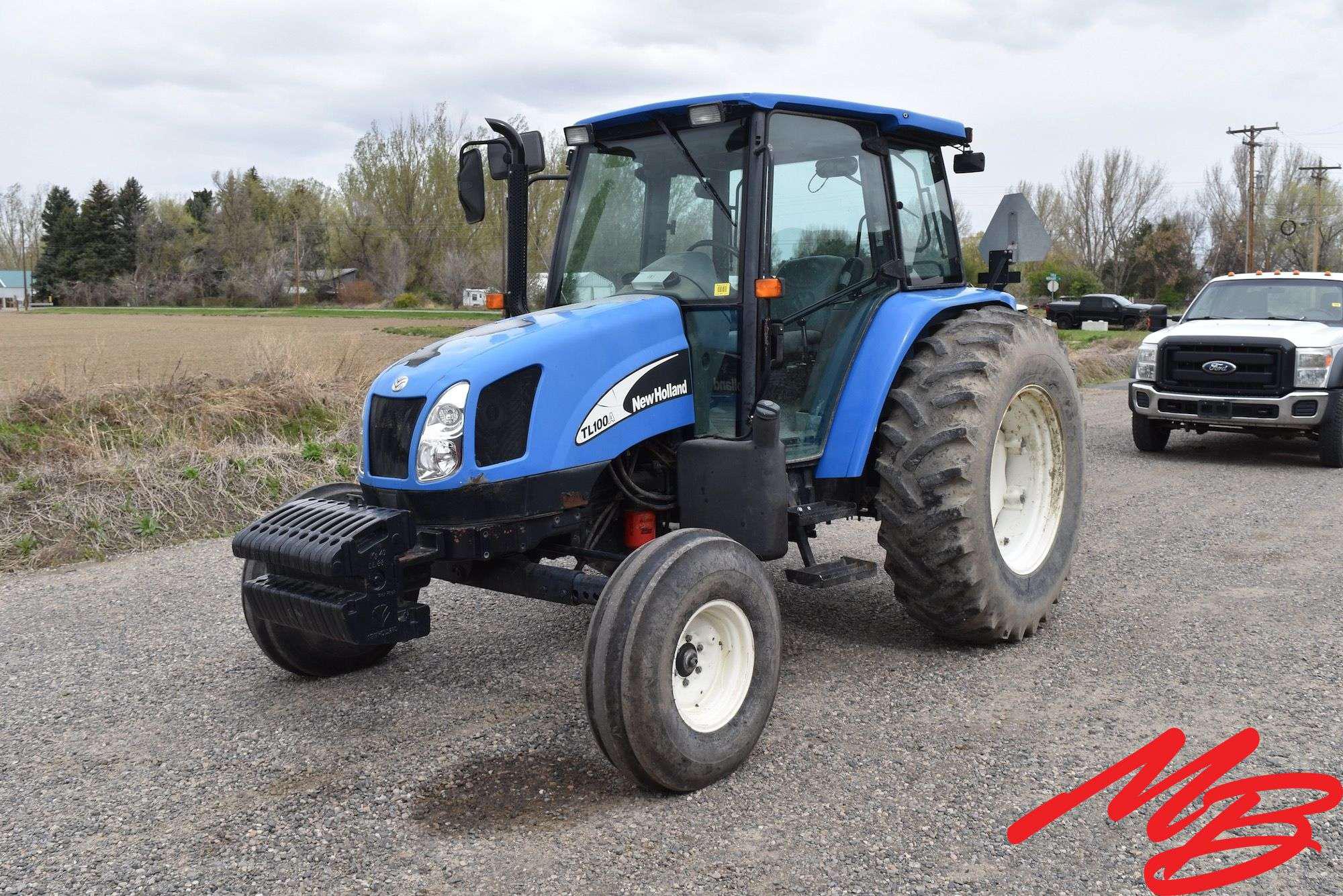

New Holland TL65E Exitus
New Holland TL65E Exitus — TL Exitus Series · 64 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
64 hp
Weight
5644 to 6393 pounds
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Built in Curitiba, BrazilReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post ROPS.Reference
Engine
Iveco 3.6L 4-cyl dieselReference
Fuel tank98.8 LReference
Engine47.7 kWReference
IvecoReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.6 LReference
Bore/Stroke100 x 115 mmReference
Power47.7 kWReference
StarterelectricReference
Starter volts12Reference
Transmission
12-speedReference
Gears12 forward and 4 reverseReference
Clutchmechanical dry discReference
Four gears (1-4) in three ranges (I, II, III) plus reverse range.Reference
PTO & Hydraulics
Typeopen centerReference
Pump flow32.6 lpmReference
Rear TypeIIReference
Rear lift (at 24"/610mm)2760 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Weight5644 to 6393 poundsReference
Front tire7.5x16Reference
2WD Rear tire16.9x30Reference
2WD Standard tires (ag)Front: 7.5x16. Rear: 16.9x30Reference
4WD Standard tires (ag)Front: 12.4x24. Rear: 18.4x30Reference
2WD Shipping weight2560 kgReference
4WD Shipping weight2899 kgReference
Electrical
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
