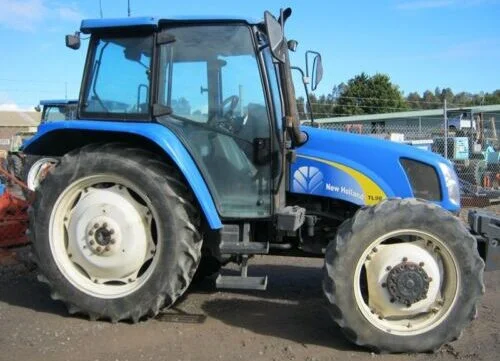

New Holland TL70A

Name: New Holland TL70A
Brand: New Holland

New Holland TL70A — TL-A Series · 72 hp. Reference specifications; pending source verification.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

72 hp

Weight

7826 to 8488 pounds

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Utility tractorReference

Two- or four-wheel driveReference

Differential lockelectro-hydraulicReference

Steeringhydrostatic powerReference

Wet disc brakesReference

Trailer brakeshydraulicReference

Cab standard. Air-conditioning optional.Reference

Engine

NEF 4.5L 4-cyl dieselReference

Fuel tank104.8 LReference

Fuel tank127.2 LReference

Engine (gross)53.7 kWReference

NEFReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.5 LReference

Bore/Stroke104 x 132 mmReference

EmissionsTier IIReference

Rated Power (gross)53.7 kWReference

Rated RPM2500Reference

Torque280.0 NmReference

Torque RPM1400Reference

StarterelectricReference

Starter volts12Reference

Transmission

12-speedReference

24-speedReference

TransmissionShuttle CommandReference

Gears12 forward and reverseReference

Mechanical shuttle. Optional creeper doubles forward speeds to 24. Available in 30 kph and 40 kph verions.Reference

TransmissionDual CommandReference

Gears24 forward and 12 reverseReference

Four gears in three ranges with two-speed power shift. Available in both 30 kph and 40 kph versions.Reference

TransmissionDual Command PowershuttleReference

Gears24 forward and reverseReference

Power shuttle adds left-hand power reverse to the Dual Command transmission. Optional power clutch button allows gear shifting without using the foot clutch. Available in both 30 kph and 40 kph versions.Reference

PTO & Hydraulics

Typeopen centerReference

Pressure198.0 barReference

Rear valves3Reference

Mid valves2Reference

Pump flow51.1 lpmReference

Pump flow59.0 lpmReference

2WD Steering flow29.9 lpmReference

4WD Steering flow39.4 lpmReference

Rear TypeIIReference

Controlmechanical draft controlReference

Controlelectronic draft control optionalReference

Rear lift4550 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540/540E/1000Reference

Engine RPM540@2199Reference

Engine RPM540E@1715Reference

Engine RPM1000@2382Reference

Dimensions

2WD Wheelbase234 cmReference

4WD Wheelbase231 cmReference

Weight7826 to 8488 poundsReference

Front tire7.50-16Reference

2WD Rear tire16.9R30Reference

2WD Standard tires (ag)Front: 7.50-16. Rear: 16.9R30Reference

4WD Standard tires (ag)Front: 11.2R24. Rear: 16.9R30Reference

Length436 cmReference

Width201 cmReference

Height245 cmReference

2WD Ground clearance37 cmReference

4WD Ground clearance45 cmReference

2WD Front tread140 to 217 cmReference

4WD Front tread132 to 203 cmReference

Rear tread143 to 203 cmReference

2WD Shipping3549 kgReference

4WD Shipping3850 kgReference
