Tractor · 1999Unverified

New Holland TL80

Name: New Holland TL80
Brand: New Holland

New Holland TL80 — TL Series · 68 hp. Reference specifications; pending source verification.

The New Holland TL80 is a tractor with an approximate engine power output of 68 hp, falling within the mid-range of its class. It was manufactured between 1999 and 2004. This tractor features a 4-cylinder turbocharged diesel liquid-cooled engine, coupled with four-wheel drive and a powershift transmission. Its operating weight ranges from 6393 to 8245 pounds, with a maximum operational area of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

68 hp

Max power

50.8 kW

Weight

6393 to 8245 pounds

Catalogue coverage

Variants represented

Richest spec table

100 rows

Recorded power

68 hp

Transmissions

12-speed partially synchronized

Production years

1999-2004

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Utility tractorReference

Built in Jesi, ItalyReference

Two- or four-wheel driveReference

Final drivesplanetaryReference

Differential lockmechanical rearReference

Power steeringReference

Differential hydraulic wet disc brakesReference

Two-post folding ROPS. Cab optional with air-conditioning.Reference

Engine

Iveco 3.9L 4-cyl dieselReference

Fuel tank109.8 LReference

Engine59.7 kWReference

Drawbar (tested)31.7 kWReference

Iveco 8045Reference

turbocharged dieselReference

4-cylinderReference

liquid-cooled inlineReference

Displacement3.9 LReference

Bore/Stroke104 x 115 mmReference

Power59.7 kWReference

Air cleanerdual paper elementsReference

Compression16.5:1Reference

Rated RPM2500Reference

Starter volts12Reference

Max power50.8 kWReference

Power at rated engine speed50.7 kWReference

Max power31.7 kWReference

Transmission

12-speed partially synchronizedReference

12-speed mechnical shuttleReference

24-speed two-speed power shiftReference

24-speed power shuttleReference

Typepartially synchronizedReference

Gears12 forward and 4 reverseReference

Clutch304.8mm dry discReference

Four synchronized gears in three ranges, plus reverse. Tractor must be stopped, and clutch used, to shift range.Reference

TransmissionSynchro CommandReference

Typemechnical shuttleReference

Gears12 forward and reverseReference

Available with creeper ranges providing 20 forward and 8 reverse speeds.Reference

Typetwo-speed power shiftReference

Gears24 forward and 12 reverseReference

Typepower shuttleReference

Gears24 forward and reverseReference

Four synchronized gears in three ranges with two-speed push-button power shift and power shuttle.Reference

PTO & Hydraulics

PTO (claimed)49.2 kWReference

PTO (tested)50.8 kWReference

Typeopen centerReference

Valves2 or 3Reference

Pump flow54.9 lpmReference

Total flow75.7 lpmReference

Steering flow20.8 lpmReference

Rear TypeIIReference

Rear lift2971 kgReference

Rear PTOindependentReference

ClutchmanualReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@2199Reference

Engine RPM1000@2381Reference

Power at rated PTO speed49.2 kWReference

Dimensions

2WD Wheelbase234 cmReference

4WD Wheelbase231 cmReference

Weight6393 to 8245 poundsReference

Front tire10.00-16Reference

2WD Rear tire480/70R-34Reference

2WD Standard tires (ag)Front: 10.00-16. Rear: 480/70R-34Reference

4WD Standard tires (ag)Front: 380/70R-24. Rear: 480/70R-34Reference

2WD Length391 cmReference

4WD Length406 cmReference

ROPS Width235 cmReference

Cab Width201 cmReference

Height (ROPS)267 cmReference

Height (Folded ROPS)240 cmReference

Height (cab)278 cmReference

Clearance (front axle)29 cmReference

Front tread140 to 216 cmReference

Rear tread141 to 220 cmReference

2WD ROPS Shipping2899 kgReference

4WD ROPS Shipping3200 kgReference

2WD Cab Shipping3099 kgReference

4WD Cab Shipping3400 kgReference

Operating3474 kgReference

Operating3739 kgReference

Ballasted4490 kgReference

New Holland TL80 attachments

front-end loaderReference

TL80 Serial Numbers

Location:Serial number stamped on the front axle support under the tractor hood.Reference

Electrical

GroundnegativeReference

Battery volts12Reference

Attachment overview

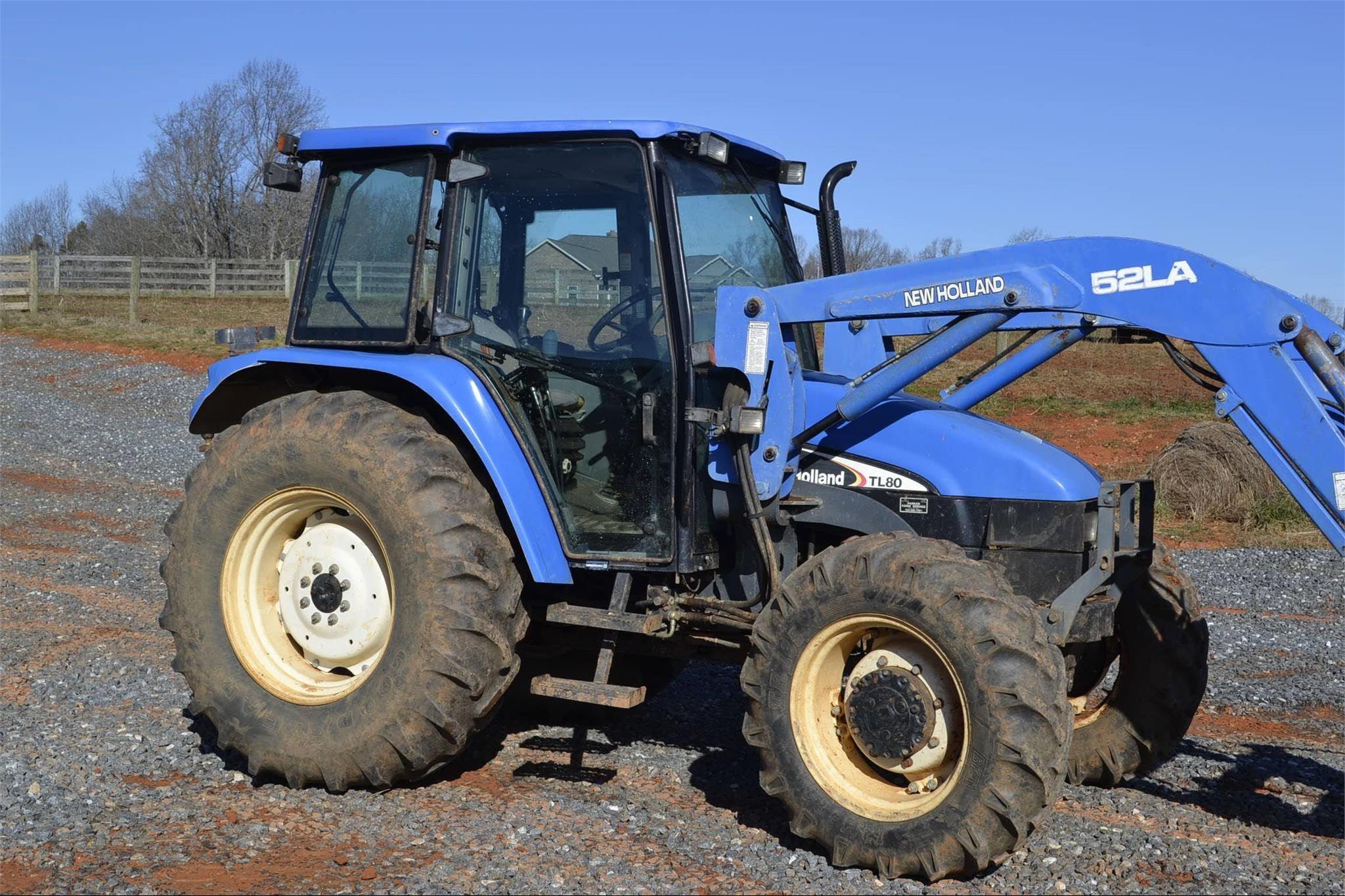

New Holland 52LA loaderReference

New Holland 52LA MSL loaderReference

Test results

Diesel 24-speed 4WDApril 1999 - December 1999, Link: OCED Tractor Test 1911 fileReference

PTO performanceReference

Fuel use15.9 l/hourReference

Fuel use14.8 l/hourReference

Drawbar performanceReference

Fuel use12.9 l/hourReference

Gear 1F Lo used for power test.Reference

Max pull4170 kgReference

Gear 3S Hi used for pull test.Reference

Speeds

With 16.9-30 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
