Tractor · 2004Unverified

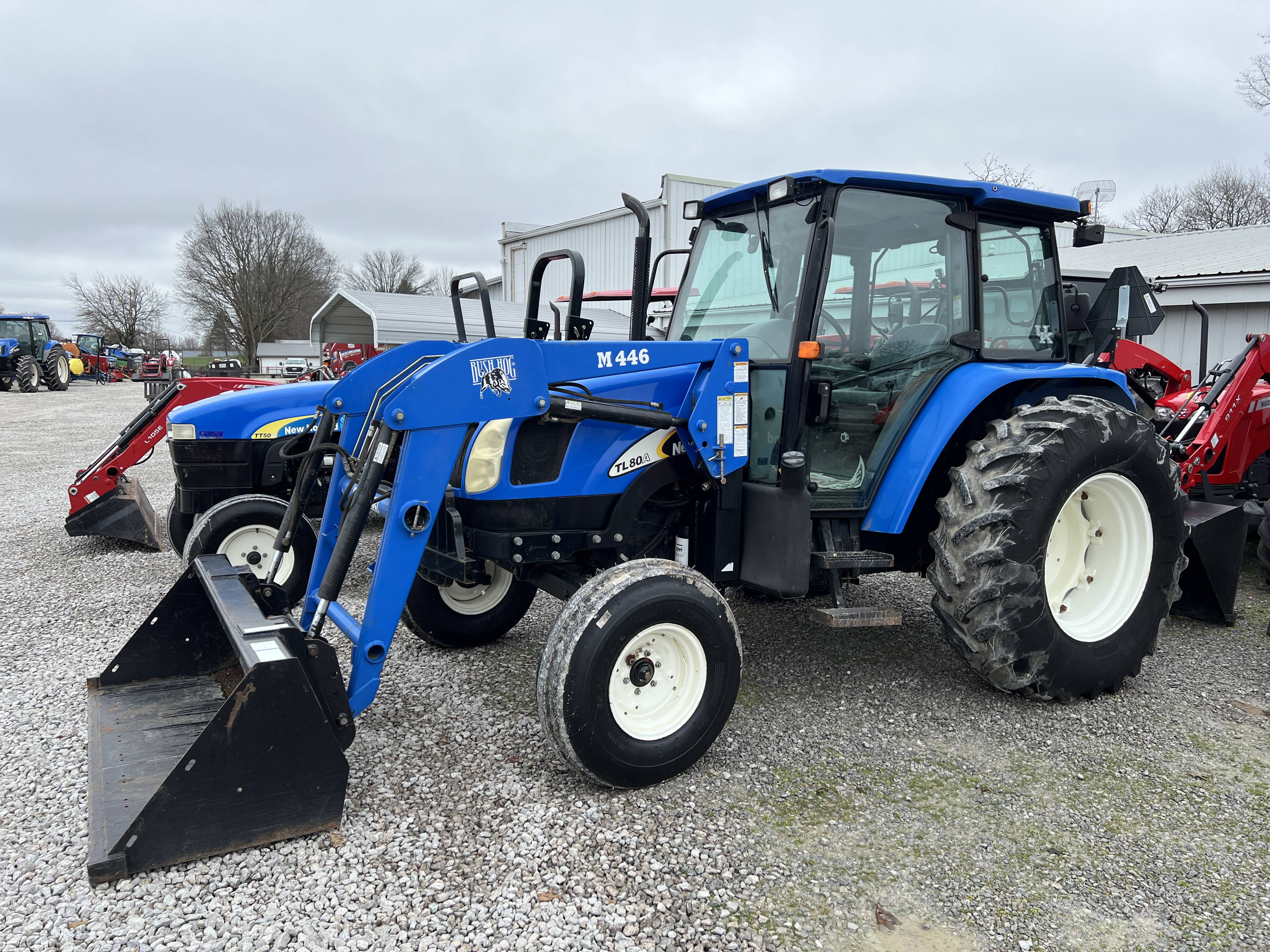

New Holland TL80A
New Holland TL80A — TL-A Series · 80 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
80 hp
Max power
37.0 kW
Weight
6393 to 8665 pounds
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Utility tractorReference
Built in Jesi, ItalyReference
The New Holland TL80A is available in standard and deluxe configurations. The deluxe model features the 24x24 power shift, air-ride seat, electro-hydraulic PTO, and flexible link ends on the three-point hitch.Reference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Differential lockelectro-hydraulic rearReference
Hydrostatic power brakesReference
ROPS. Cab optional.Reference
Engine
CNH Diesel 4.5L 4-cyl dieselReference
Fuel tank126.8 LReference
Engine (gross)59.7 kWReference
Drawbar (tested)37.0 kWReference
CNH Diesel F4CReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke104 x 132 mmReference
Power (gross)59.7 kWReference
Air cleanerdual dry elementReference
Compression17.5:1Reference
Rated RPM2500Reference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Oil capacity9.8 LReference
Coolant capacity12.1 LReference
Coolant capacity14.0 LReference
Power at rated engine speed53.2 kWReference
Max power37.0 kWReference
Transmission
12-speed mechanical shuttleReference
24-speed power shuttleReference
20-speed mechanical shuttleReference
TransmissionSynchro CommandReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
Clutchdry discReference
TransmissionDual CommandReference
Typepower shuttleReference
Gears24 forward and reverseReference
Clutchwet discReference
Gears20 forward and 12 reverseReference
PTO & Hydraulics
PTO (claimed)51.5 kWReference
PTO (tested)53.2 kWReference
Typeopen centerReference
Valves1 to 3Reference
Pump flow54.9 lpmReference
Total flow75.7 lpmReference
Steering flow20.8 lpmReference
Rear TypeIIReference
Controlmechanical lower-link draft controlReference
Rear lift (at ends)0 kgReference
Rear lift (at ends)0 kgReference
Rear lift (at 24"/610mm)2605 kgReference
Rear PTOindependentReference
Standard Clutch12-inch cerametallic dry discReference
Deluxe Clutchwet discsReference
Rear PTO Type540Reference
Power at rated PTO speed53.9 kWReference
Dimensions
Wheelbase234 cmReference
Wheelbase231 cmReference
Weight6393 to 8665 poundsReference
Ag rearhydraulic wet discReference
Width184 cmReference
Width201 cmReference
Front tread142 to 213 cmReference
Rear tread152 to 213 cmReference
Shipping2899 kgReference
Shipping3099 kgReference
Shipping3200 kgReference
Shipping3400 kgReference
Operating3839 kgReference
Operating3930 kgReference
Ballasted4835 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Battery CCA960Reference
Battery volts12Reference
New Holland TL80A Height
ROPS265 cmReference
ROPS213 cmReference
Cab260 cmReference
Exhaust298 cmReference
Test results
Diesel 12-speed 4WDOctober 2004 - December 2004, Link: OCED Tractor Test 2249 fileReference
PTO performanceReference
Fuel use18.5 l/hourReference
Fuel use18.2 l/hourReference
Drawbar performanceReference
Gear 4L used for power test.Reference
Max pull4281 kgReference
Gear 2L used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
