Tractor · 1999Unverified
New Holland TL90
New Holland TL90 — TL Series · 78 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
78 hp
Max power
60.8 kW
Weight
6834 to 8585 pounds
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Utility tractorReference
Built in Jesi, ItalyReference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Differential lockmechanical rearReference
Power steeringReference
Differential hydraulic wet disc brakesReference
Two-post folding ROPS. Cab optional with air-conditioning.Reference
Engine
Iveco 3.9L 4-cyl dieselReference
Fuel tank126.8 LReference
Engine67.1 kWReference
Iveco 8045Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement3.9 LReference
Bore/Stroke104 x 115 mmReference
Power67.1 kWReference
Air cleanerdual paper elementsReference
Compression16.5:1Reference
Rated RPM2500Reference
Starter volts12Reference
Max power60.8 kWReference
Power at rated engine speed58.3 kWReference
Transmission
12-speed mechnical shuttleReference
24-speed two-speed power shiftReference
24-speed power shuttleReference
TransmissionSynchro CommandReference
Typemechnical shuttleReference
Gears12 forward and reverseReference
Available with creeper ranges providing 20 forward and 8 reverse speeds.Reference
Typetwo-speed power shiftReference
Gears24 forward and 12 reverseReference
Typepower shuttleReference
Gears24 forward and reverseReference
Four synchronized gears in three ranges with two-speed push-button power shift and power shuttle.Reference
PTO & Hydraulics
PTO (claimed)56.7 kWReference
PTO (tested)60.8 kWReference
Typeopen centerReference
Valves2 or 3Reference
Pump flow54.9 lpmReference
Total flow75.7 lpmReference
Steering flow20.8 lpmReference
Rear TypeIIReference
Rear lift2971 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2199Reference
Engine RPM1000@2381Reference
Power at rated PTO speed60.6 kWReference
Dimensions
2WD Wheelbase234 cmReference
4WD Wheelbase231 cmReference
Weight6834 to 8585 poundsReference
Front tire10.00-16Reference
2WD Rear tire540/65R-34Reference
2WD Standard tires (ag)Front: 10.00-16. Rear: 540/65R-34Reference
4WD Standard tires (ag)Front: 440/65R24. Rear: 540/65R-34Reference
2WD Length391 cmReference
4WD Length406 cmReference
ROPS Width235 cmReference
Cab Width201 cmReference
Height (ROPS)267 cmReference
Height (Folded ROPS)240 cmReference
Height (cab)278 cmReference
Clearance (front axle)29 cmReference
Front tread140 to 216 cmReference
Rear tread141 to 220 cmReference
2WD ROPS Shipping3099 kgReference
4WD ROPS Shipping3400 kgReference
2WD Cab Shipping3299 kgReference
4WD Cab Shipping3600 kgReference
Operating3626 kgReference
Operating3894 kgReference
Ballasted4570 kgReference

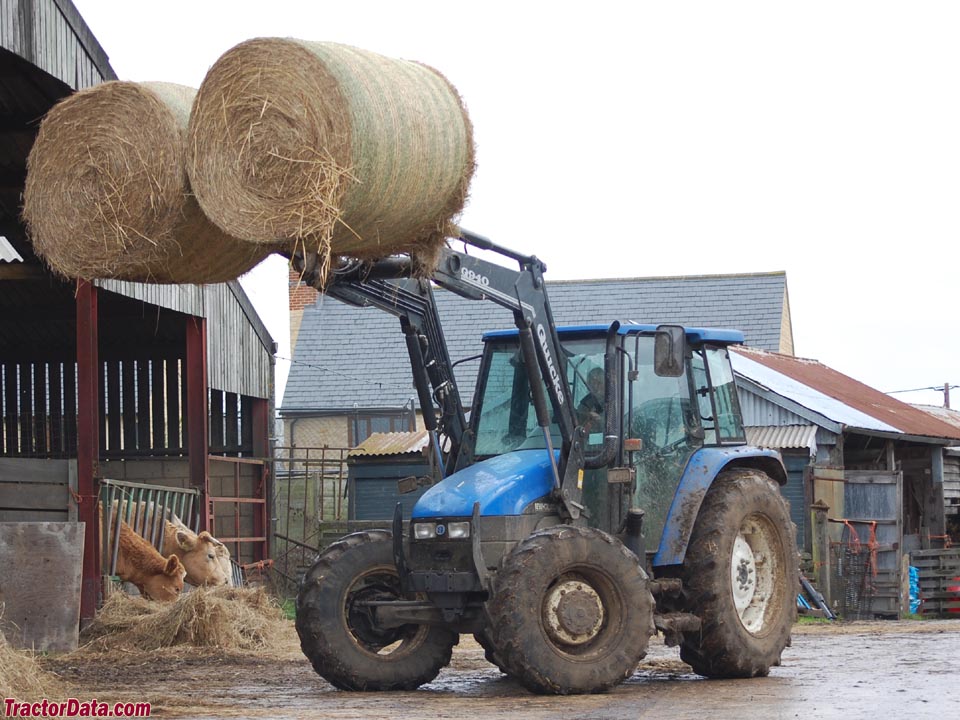

New Holland TL90 attachments
front-end loaderReference
TL90 Serial Numbers
Location:Serial number stamped on the front axle support under the tractor hood.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
New Holland 52LA loaderReference
New Holland 52LA MSL loaderReference
Test results
Diesel 24-speed 4WDJuly 1 - December 1, 1999Link: OCED Tractor Test 1914 fileReference
PTO performanceReference
Fuel use17.4 l/hourReference
Fuel use18.2 l/hourReference
Drawbar performanceReference
Max pull4211 kgReference
Gear 3S Hi used for pull test.Reference
Speeds
With 30KPH option and 600/65-34 rear tires. Reverse speeds are 10% slower than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
