Tractor · 2004Unverified

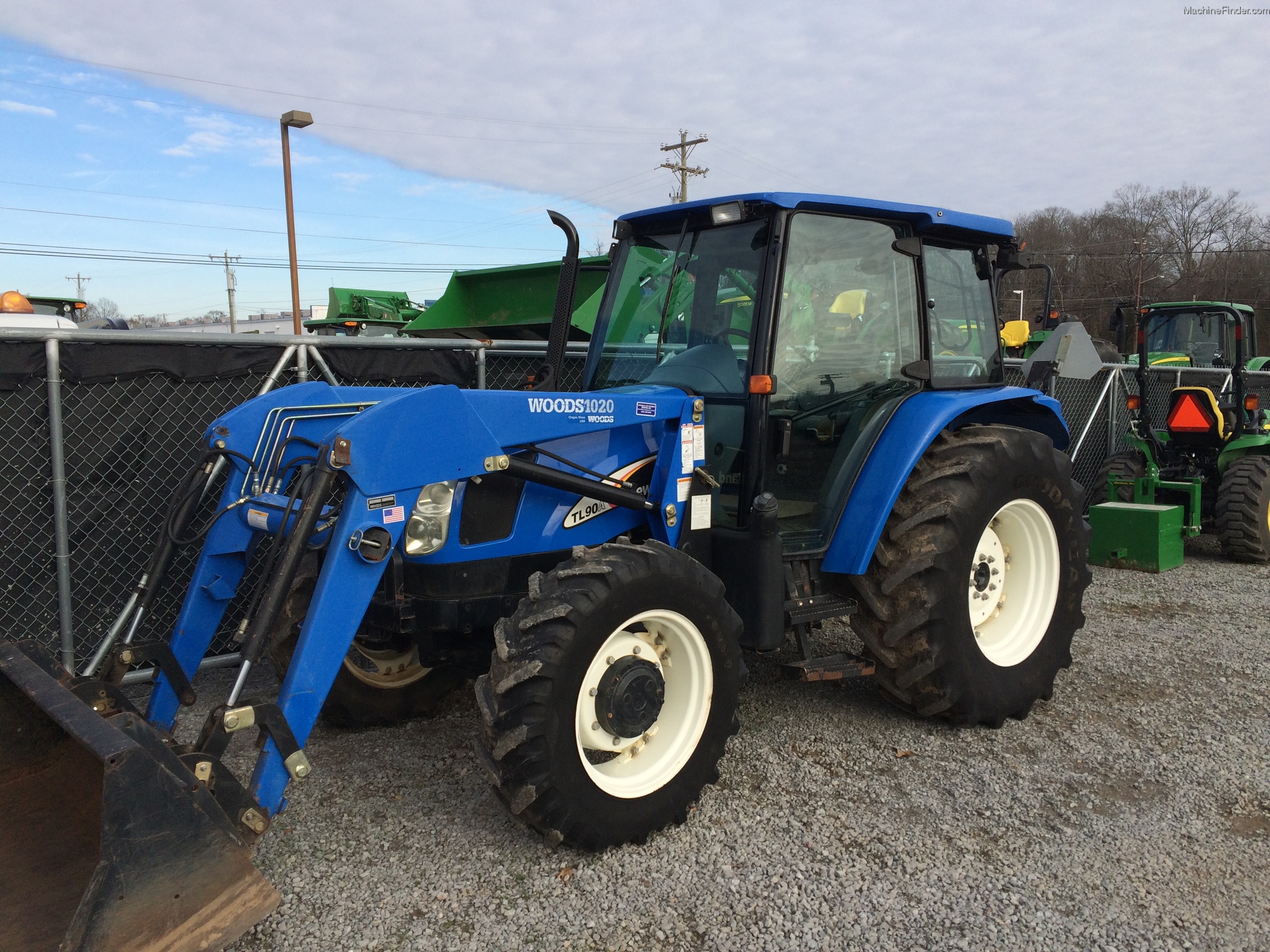

New Holland TL90A

Name: New Holland TL90A
Brand: New Holland

New Holland TL90A — TL-A Series · 90 hp. Reference specifications; pending source verification.

The New Holland TL90A is a tractor with a rated output of 90 hp, positioning it towards the middle of its class in terms of power. It was manufactured between 2004 and 2007. The tractor is powered by a 4-cylinder turbocharged diesel liquid-cooled engine, transmitting power through four-wheel drive via a hydrostatic transmission. Its listed weight ranges from 6834 to 8665 pounds.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

90 hp

Max power

37.9 kW

Weight

6834 to 8665 pounds

Catalogue coverage

Variants represented

Richest spec table

92 rows

Recorded power

90 hp

Transmissions

12-speed mechanical shuttle

Production years

2004-2007

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Utility tractorReference

Built in Jesi, ItalyReference

The New Holland TL90A is available in standard and deluxe configurations. The deluxe model features the 24x24 power shift, air-ride seat, electro-hydraulic PTO, and flexible link ends on the three-point hitch.Reference

Two- or four-wheel driveReference

Differential lockmechanical rearReference

Differential lockelectro-hydraulic rearReference

Hydrostatic power brakesReference

ROPS. Cab optional.Reference

Engine

CNH Diesel 4.5L 4-cyl dieselReference

Fuel tank126.8 LReference

Engine (gross)67.1 kWReference

Drawbar (tested)37.9 kWReference

CNH DieselReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.5 LReference

Bore/Stroke104 x 132 mmReference

Power (gross)67.1 kWReference

Air cleanerdual dry elementReference

Compression17.5:1Reference

Rated RPM2500Reference

Torque RPM1400Reference

StarterelectricReference

Starter volts12Reference

Oil capacity9.8 LReference

Coolant capacity12.1 LReference

Coolant capacity14.0 LReference

Power at rated engine speed61.8 kWReference

Max power37.9 kWReference

Transmission

12-speed mechanical shuttleReference

24-speed power shuttleReference

20-speed mechanical shuttleReference

TransmissionSynchro CommandReference

Typemechanical shuttleReference

Gears12 forward and reverseReference

Clutchdry discReference

TransmissionDual CommandReference

Typepower shuttleReference

Gears24 forward and reverseReference

Clutchwet discReference

Gears20 forward and 12 reverseReference

PTO & Hydraulics

PTO (claimed)57.4 kWReference

PTO (tested)61.8 kWReference

Typeopen centerReference

Valves1 to 3Reference

Pump flow54.9 lpmReference

Total flow75.7 lpmReference

Steering flow20.8 lpmReference

Rear TypeIIReference

Controlmechanical lower-link draft controlReference

Rear lift (at ends)0 kgReference

Rear lift (at 24"/610mm)2605 kgReference

Rear PTOindependentReference

Standard Clutch12-inch cerametallic dry discReference

Deluxe Clutchwet discsReference

Rear PTO Type540/1000Reference

Power at rated PTO speed62.3 kWReference

Dimensions

Wheelbase234 cmReference

Wheelbase231 cmReference

Weight6834 to 8665 poundsReference

Ag rearhydraulic wet discReference

Width184 cmReference

Width201 cmReference

Front tread142 to 213 cmReference

Rear tread152 to 213 cmReference

Shipping3099 kgReference

Shipping3299 kgReference

Shipping3395 kgReference

Shipping3599 kgReference

Operating3848 kgReference

Operating3930 kgReference

Ballasted4835 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps120Reference

Battery CCA960Reference

Battery volts12Reference

New Holland TL90A Height

ROPS265 cmReference

ROPS213 cmReference

Cab260 cmReference

Exhaust298 cmReference

Test results

Diesel 12-speed 4WDOctober 2004 - December 2004, Link: OCED Tractor Test 2248 fileReference

PTO performanceReference

Fuel use20.1 l/hourReference

Fuel use19.7 l/hourReference

Drawbar performanceReference

Gear 2M used for power test.Reference

Max pull4599 kgReference

Gear 1L used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
