Tractor · 2002Unverified

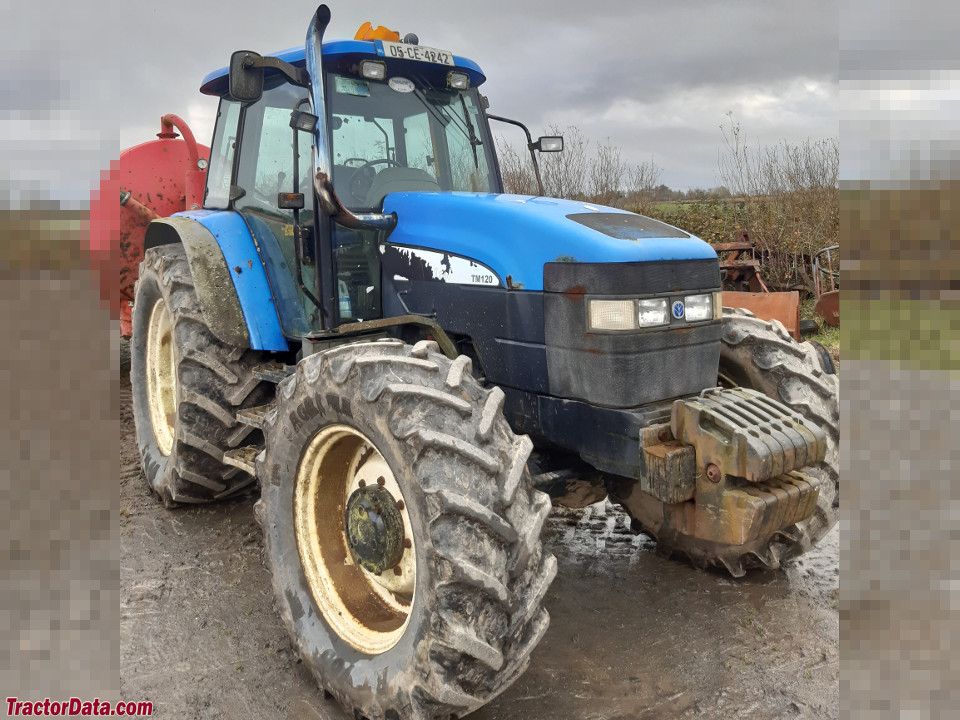

New Holland TM120
New Holland TM120 — TM Series · 101 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
101 hp
Max power
78.2 kW
Weight
11283 to 11859 pounds
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Row-Crop tractorReference
Built in Basildon, EnglandReference
Two- or four-wheel driveReference
Differential lockelectro-hydraulicReference
Power steeringReference
Differential hydraulic wet disc brakesReference
Cab standard with heat and air-conditioning. Optional heated air-ride seat.Reference
Variants
MXM120similar CaseIH modelReference
Engine
CNH 7.5L 6-cyl dieselReference
Engine89.5 kWReference
Drawbar (tested)61.9 kWReference
CNH GenesisReference
turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement7.5 LReference
Bore/Stroke112 x 127 mmReference
Power89.5 kWReference
Air cleanerdual paper elements with aspiratorReference
Compression17.0:1Reference
Rated RPM2200Reference
Idle RPM800-2375Reference
Torque RPM1400Reference
Firing order1-5-3-6-2-4Reference
Starter volts12Reference
Oil capacity18.9 LReference
Coolant capacity25.4 LReference
Max power78.2 kWReference
Power at rated engine speed75.1 kWReference
Max power61.9 kWReference
Transmission
24-speed partially synchronizedReference
20-speed partially synchronizedReference
18-speed six-speed power shiftReference
18-speed full power shiftReference
TransmissionDual CommandReference
Typepartially synchronizedReference
Gears24 forward and 12 reverseReference
Four synchronized gears (1-4) in three ranges (A-C) with power shuttle and two-speed push button power shift. Shifts between ranges B/C are synchronized. Optional creeper ranges provides a total of 48 forward gears.Reference
TransmissionShuttle CommandReference
Gears20 forward and 16 reverseReference
Five synchronized gears (1-5) in three ranges (A-D) with mechanical shuttle. Range shift from B to A is not synchronized. Optional creeper ranges provides a total of 40 forward gears.Reference
TransmissionRange CommandReference
Typesix-speed power shiftReference
Gears18 forward and 6 reverseReference
Clutchelectro-hydraulic wet discReference
Six power shift gears in three ranges with power shuttle. Available in 30 KPH (17-speed) and 40 KPH (18-speed versions).Reference
TransmissionPower CommandReference
Typefull power shiftReference
Push-button power shift with power shuttle. Available in 30 KPH (17-speed) and 40 KPH (18-speed versions). Optional creeper range provides an addition 10 forward and 6 reverse gears.Reference
PTO & Hydraulics
PTO (claimed)70.8 kWReference
PTO (tested)78.2 kWReference
Hydraulic system73.1 LReference
Hydraulic system89.3 LReference
Typeclosed center load sensing (CCLS)Reference
Capacity73.1 LReference
Capacity89.3 LReference
Pressure189.6 barReference
Rear valves4Reference
Mid valves2 to 4Reference
Pump flow106.0 lpmReference
Total flow166.5 lpmReference
Steering flow60.6 lpmReference
Rear TypeIIReference
Controlelectronic lower-link draft controlReference
Rear lift (at ends)3690 kgReference
Rear lift (at ends)4457 kgReference
Front HitchIIReference
Front lift3269 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/1000Reference
Engine RPM540@1970Reference
Engine RPM1000@2120Reference
Power at rated PTO speed77.6 kWReference
Capacities
Fuel285.0 LReference
Max capacity8501 kgReference
Dimensions
Wheelbase272 cmReference
Weight11283 to 11859 poundsReference
Front tire11.00-16Reference
2WD Rear tire18.4R38Reference
2WD Standard tires (ag)Front: 11.00-16. Rear: 18.4R38Reference
4WD Standard tires (ag)Front: 14.9R28. Rear: 18.4R38Reference
Length471 cmReference
Width201 cmReference
Height282 cmReference
Ground clearance40 cmReference
Front axle2WDReference
Front axle4WDReference
Front axleSuperSteer 4WDReference
Front axleTerraGlide suspensionReference
Flange rear axleReference
Bar rear axle2489 mmReference
Bar rear axle2844 mmReference
2WD Front tread154 to 225 cmReference
4WD Front tread155 to 226 cmReference
Flange Rear tread152 to 223 cmReference
Rear tread152 to 243 cmReference
Rear tread152 to 254 cmReference
2WD Shipping5117 kgReference
4WD Shipping5379 kgReference
Operating5366 kgReference
2WD Max front axle3500 kgReference
4WD Max front axle3800 kgReference
Max rear axle6500 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Battery CCA1300Reference
Battery volts12Reference
Test results
Diesel Range Command 4WDDecember 1, 2002 - March 1, 2003Link: OCED Tractor Test 2085 fileReference
PTO performanceReference
Fuel use24.2 l/hourReference
Fuel use25.7 l/hourReference
Fuel use25.4 l/hourReference
Drawbar performanceReference
Gear 9 used for power test.Reference
Max pull5588 kgReference
Gear 1 used for pull test.Reference
Speeds
With 40 KPH option and 18.4R38 rear tres.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
