Tractor · 2000Unverified

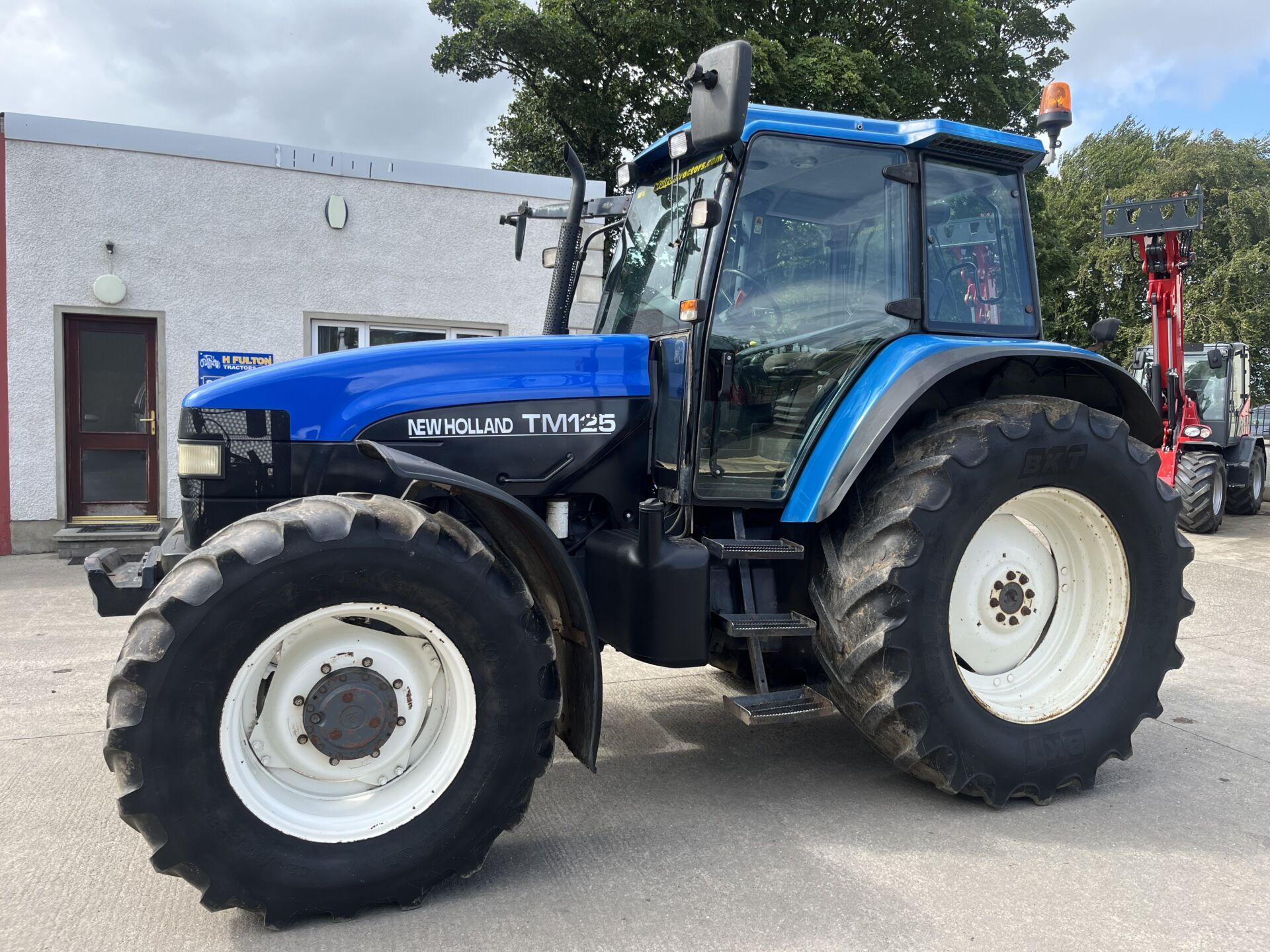

New Holland TM125

Name: New Holland TM125
Brand: New Holland

New Holland TM125 — TM Series · 106 hp. Reference specifications; pending source verification.

The New Holland TM125 is a tractor with an engine rating of 106 hp, positioning it in the middle of its class for power. Manufactured from 2000 to 2002, it features a 6-cylinder turbocharged diesel liquid-cooled engine, which transmits power to four-wheel drive via a powershift transmission. The listed weight of the tractor is between 10252 and 11765 pounds. It is designed for agricultural applications, covering areas of approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

106 hp

Max power

82.2 kW

Weight

10252 to 11765 pounds

Catalogue coverage

Variants represented

Richest spec table

118 rows

Recorded power

106 hp

Transmissions

18-speed power shift

Production years

2000-2002

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Row-Crop tractorReference

Built in Basildon, EnglandReference

Two- or four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab standard.Reference

Engine

New Holland 7.5L 6-cyl dieselReference

Engine93.2 kWReference

Drawbar (tested)65.0 kWReference

New HollandReference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement7.5 LReference

Bore/Stroke112 x 127 mmReference

Power93.2 kWReference

Air cleanerdual dry elementReference

Compression17.5:1Reference

Rated RPM2200Reference

Operating RPM1500-2200Reference

Firing order1-5-3-6-2-4Reference

StarterelectricReference

Starter volts12Reference

Coolant capacity25.5 LReference

Oil capacity18.9 LReference

Max power82.2 kWReference

Power at rated engine speed78.7 kWReference

Max power65.0 kWReference

Transmission

18-speed power shiftReference

24-speed two-speed power shiftReference

TransmissionRange CommandReference

Typepower shiftReference

Gears18 forward and 6 reverseReference

Clutchelectro-hydraulic wet discReference

Six power shift gears (1-6) in three ranges (A, B, C) with power shuttle. Push-button control for gear and range shifts. Left-hand shuttle lever.Reference

TransmissionDual CommandReference

Typetwo-speed power shiftReference

Gears24 forward and 12 reverseReference

Four gears (1-4) in three ranges (A, B, C) with two-speed push-button power shift.Reference

PTO & Hydraulics

PTO (claimed)74.6 kWReference

PTO (tested)82.2 kWReference

Hydraulic system89.9 LReference

Typeclosed-center load sensing (CCLS)Reference

Capacity89.9 LReference

Pressure189.6 barReference

Rear valves4 (max)Reference

Mid valves4 (max)Reference

Pump flow106.0 lpmReference

Steering flow58.7 lpmReference

Rear TypeIIReference

Controlelectronic lower-link draft sensingReference

Rear lift3957 kgReference

Front HitchIIReference

Front lift3269 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type540/1000Reference

Rear PTO Type540/540E/1000Reference

Engine RPM540@1970Reference

Engine RPM540E@1546Reference

Engine RPM1000@2120Reference

Power at rated PTO speed81.8 kWReference

Capacities

Fuel219.5 LReference

Dimensions

2WD Wheelbase274 cmReference

4WD Wheelbase272 cmReference

SuperSteer Wheelbase288 cmReference

Terraglide Wheelbase278 cmReference

Weight10252 to 11765 poundsReference

Front tire480/70R-28Reference

Rear tire580/70R-38Reference

Standard tires (ag)Front: 480/70R-28. Rear: 580/70R-38Reference

2WD Length458 cmReference

4WD Length471 cmReference

Terraglide Length477 cmReference

SuperSteer Length487 cmReference

Width201 cmReference

Clearance (front axle)41 cmReference

Clearance (drawbar)25 cmReference

Front axle2WDReference

Front axle4WDReference

Front axleSuperSteer 4WDReference

Front axle0 mmReference

Flange rear axleReference

Bar rear axle2489 mmReference

Bar rear axle2844 mmReference

2WD Front tread154 to 218 cmReference

4WD Front tread155 to 226 cmReference

Rear tread152 to 223 cmReference

Rear tread152 to 230 cmReference

Rear tread154 to 255 cmReference

Rear tread154 to 290 cmReference

2WD Shipping4650 kgReference

4WD Shipping5049 kgReference

Operating5336 kgReference

New Holland TM125 attachments

front-end loaderReference

TM125 Serial Numbers

200013443BReference

2001155247BReference

2002173895BReference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps120Reference

Batteries2Reference

Battery CCA900Reference

Battery volts12Reference

New Holland TM125 Height

Cab288 cmReference

Cab299 cmReference

Exhaust302 cmReference

Test results

Diesel 18-speed 4WDFebruary 2000 - May 2000, Link: OCED Tractor Test 1918 fileReference

PTO performanceReference

Fuel use25.0 l/hourReference

Fuel use25.4 l/hourReference

Drawbar performanceReference

Gear 2B used for power test.Reference

Max pull5384 kgReference

Gear 1A used for pull test.Reference

Speeds

With 520/70R-38 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
