Tractor · 2002Unverified

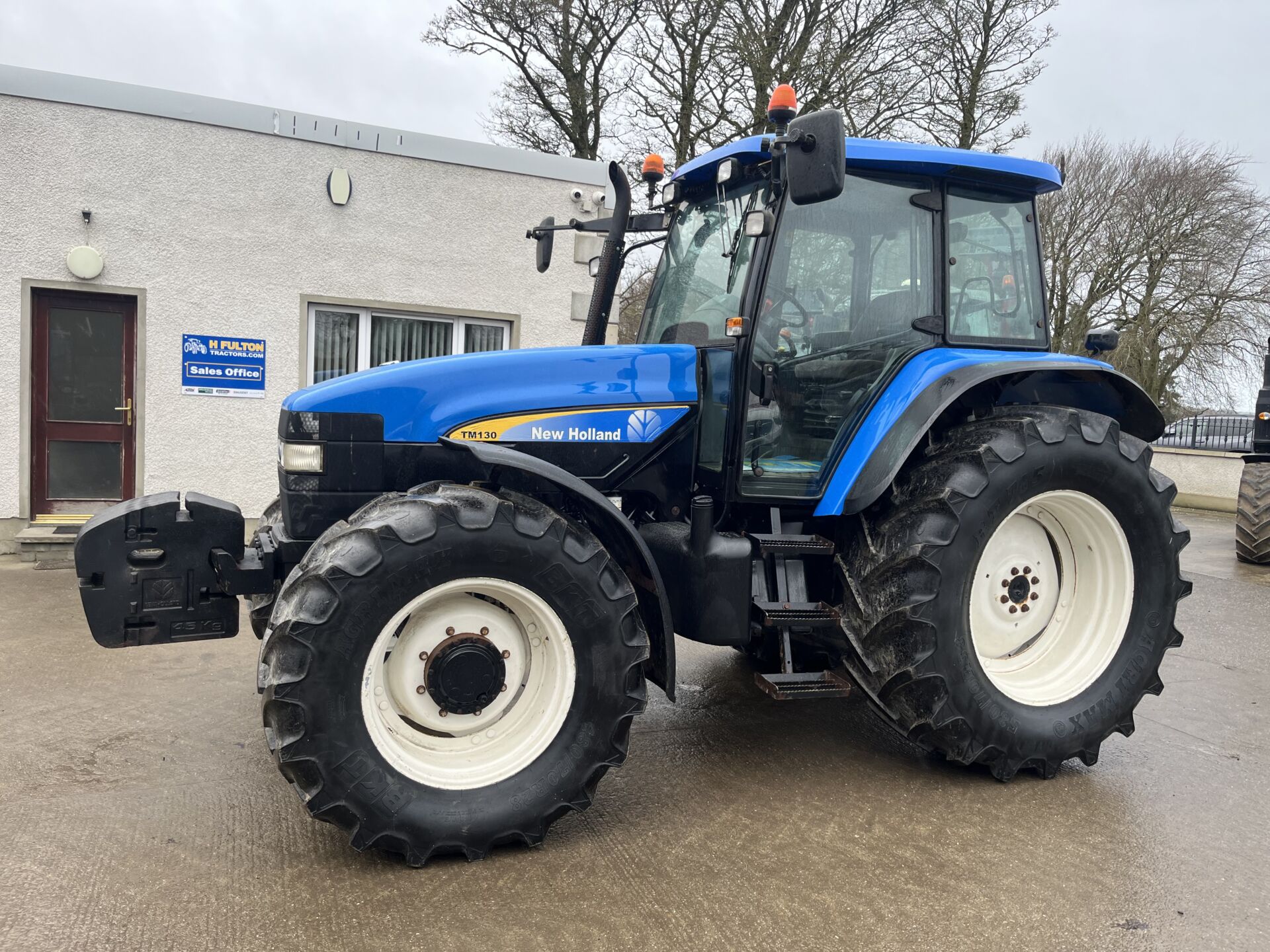

New Holland TM130

Name: New Holland TM130
Brand: New Holland

New Holland TM130 — TM Series · 113 hp. Reference specifications; pending source verification.

The New Holland TM130 is a tractor with a rated output of 113 hp, situating it in the middle of its class in terms of power. Produced from 2002 to 2007, the TM130 is powered by a 6-cylinder turbocharged diesel liquid-cooled engine, driving through four-wheel drive with a powershift transmission. Its listed weight ranges from 11283 to 11915 pounds, and it is suitable for jobs spanning approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

113 hp

Max power

70.9 kW

Weight

11283 to 11915 pounds

Catalogue coverage

Variants represented

Richest spec table

118 rows

Recorded power

113 hp

Transmissions

24-speed partially synchronized

Production years

2002-2007

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Row-Crop tractorReference

Built in Basildon, EnglandReference

Two- or four-wheel driveReference

Differential lockelectro-hydraulicReference

Power steeringReference

Differential hydraulic wet disc brakesReference

Cab standard with heat and air-conditioning. Optional heated air-ride seat.Reference

Variants

MXM130similar CaseIH modelReference

Engine

CNH 7.5L 6-cyl dieselReference

Engine96.9 kWReference

Drawbar (tested)70.9 kWReference

CNH GenesisReference

turbocharged dieselReference

6-cylinderReference

liquid-cooled inlineReference

Displacement7.5 LReference

Bore/Stroke112 x 127 mmReference

Power96.9 kWReference

Air cleanerdual paper elements with aspiratorReference

Compression17.0:1Reference

Rated RPM2200Reference

Idle RPM800-2375Reference

Torque RPM1400Reference

Firing order1-5-3-6-2-4Reference

Starter volts12Reference

Oil capacity18.9 LReference

Coolant capacity25.4 LReference

Power at rated engine speed84.5 kWReference

Max power70.9 kWReference

Transmission

24-speed partially synchronizedReference

20-speed partially synchronizedReference

18-speed six-speed power shiftReference

18-speed full power shiftReference

TransmissionDual CommandReference

Typepartially synchronizedReference

Gears24 forward and 12 reverseReference

Four synchronized gears (1-4) in three ranges (A-C) with power shuttle and two-speed push button power shift. Shifts between ranges B/C are synchronized. Optional creeper ranges provides a total of 48 forward gears.Reference

TransmissionShuttle CommandReference

Gears20 forward and 16 reverseReference

Five synchronized gears (1-5) in three ranges (A-D) with mechanical shuttle. Range shift from B to A is not synchronized. Optional creeper ranges provides a total of 40 forward gears.Reference

TransmissionRange CommandReference

Typesix-speed power shiftReference

Gears18 forward and 6 reverseReference

Clutchelectro-hydraulic wet discReference

Six power shift gears in three ranges with power shuttle. Available in 30 KPH (17-speed) and 40 KPH (18-speed versions).Reference

TransmissionPower CommandReference

Typefull power shiftReference

Push-button power shift with power shuttle. Available in 30 KPH (17-speed) and 40 KPH (18-speed versions). Optional creeper range provides an addition 10 forward and 6 reverse gears.Reference

PTO & Hydraulics

PTO (claimed)78.3 kWReference

PTO (tested)84.5 kWReference

Hydraulic system73.1 LReference

Hydraulic system89.3 LReference

Typeclosed center load sensing (CCLS)Reference

Capacity73.1 LReference

Capacity89.3 LReference

Pressure189.6 barReference

Rear valves4Reference

Mid valves2 to 4Reference

Pump flow106.0 lpmReference

Total flow166.5 lpmReference

Steering flow60.6 lpmReference

Rear TypeIIReference

Controlelectronic lower-link draft controlReference

Rear lift (at ends)3690 kgReference

Rear lift (at ends)4457 kgReference

Front HitchIIReference

Front lift3269 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type540/1000Reference

Engine RPM540@1970Reference

Engine RPM1000@2120Reference

Power at rated PTO speed84.1 kWReference

Capacities

Fuel285.0 LReference

Max capacity8501 kgReference

Dimensions

Wheelbase272 cmReference

Weight11283 to 11915 poundsReference

Front tire11.00-16Reference

2WD Rear tire18.4R38Reference

2WD Standard tires (ag)Front: 11.00-16. Rear: 18.4R38Reference

4WD Standard tires (ag)Front: 14.9R28. Rear: 18.4R38Reference

Length471 cmReference

Width201 cmReference

Height282 cmReference

Ground clearance40 cmReference

Front axle2WDReference

Front axle4WDReference

Front axleSuperSteer 4WDReference

Front axleTerraGlide suspensionReference

Flange rear axleReference

Bar rear axle2489 mmReference

Bar rear axle2844 mmReference

2WD Front tread154 to 225 cmReference

4WD Front tread155 to 226 cmReference

Flange Rear tread152 to 223 cmReference

Rear tread152 to 243 cmReference

Rear tread152 to 254 cmReference

2WD Shipping5117 kgReference

4WD Shipping5379 kgReference

Operating5404 kgReference

2WD Max front axle3500 kgReference

4WD Max front axle3800 kgReference

Max rear axle6500 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps120Reference

Battery CCA1300Reference

Battery volts12Reference

Test results

Diesel Range Command 4WDDecember 1, 2002 - March 1, 2003Link: OCED Tractor Test 2087 fileReference

PTO performanceReference

Fuel use27.3 l/hourReference

Fuel use26.5 l/hourReference

Drawbar performanceReference

Gear 8 used for power test.Reference

Max pull5692 kgReference

Gear 1 used for pull test.Reference

Speeds

With 40 KPH option and 18.4R38 rear tres.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
