Tractor · 2000Unverified

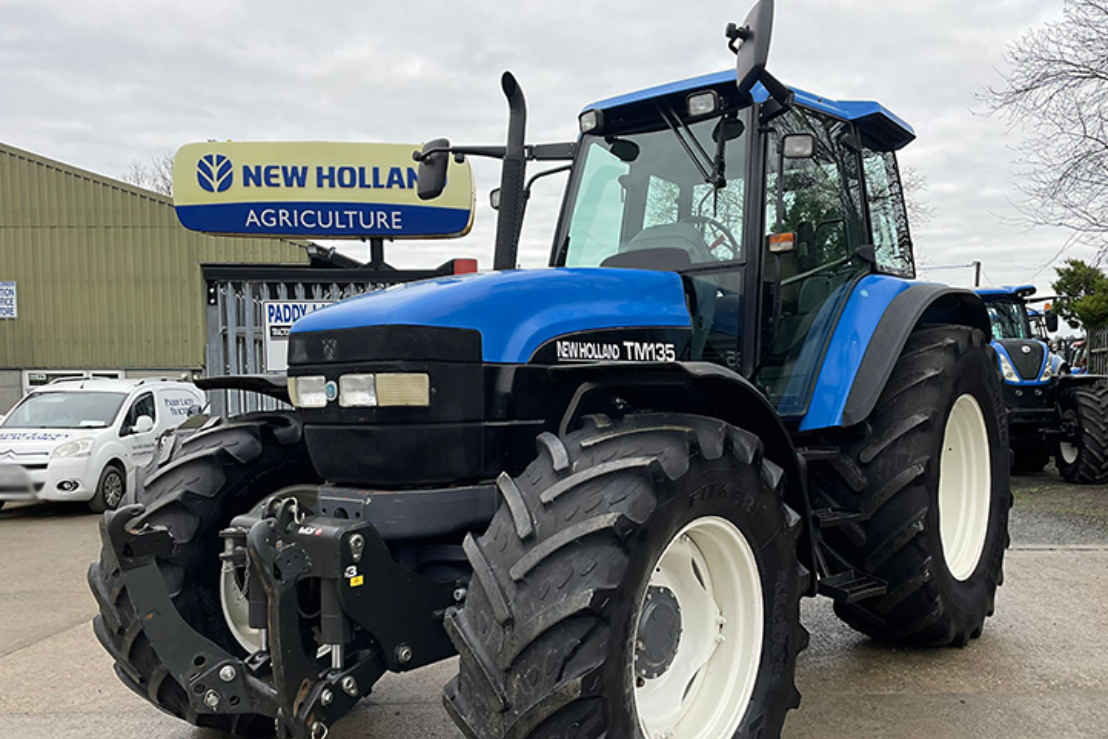

New Holland TM135

Name: New Holland TM135
Brand: New Holland

New Holland TM135 — TM Series · 115 hp. Reference specifications; pending source verification.

The New Holland TM135 is a tractor with a rated output of 115 hp, placing it in the middle of its class in terms of power. Produced from 2000 to 2002, it features a 6-cylinder turbocharged diesel liquid-cooled engine, which drives four-wheel drive via a powershift transmission. Weighing between 10472 pounds and 13515 pounds, the TM135 is designed for use on plots ranging from approximately 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

115 hp

Max power

88.5 kW

Weight

10472 to 13515 pounds

Catalogue coverage

Variants represented

Richest spec table

119 rows

Recorded power

115 hp

Transmissions

18-speed power shift

Production years

2000-2002

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Row-Crop tractorReference

Built in Basildon, EnglandReference

Two- or four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab standard.Reference

Engine

New Holland 7.5L 6-cyl dieselReference

Engine100.7 kWReference

Drawbar (tested)73.2 kWReference

New HollandReference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement7.5 LReference

Bore/Stroke112 x 127 mmReference

Power100.7 kWReference

Air cleanerdual dry elementReference

Compression17.5:1Reference

Rated RPM2200Reference

Operating RPM1500-2200Reference

Firing order1-5-3-6-2-4Reference

StarterelectricReference

Starter volts12Reference

Coolant capacity25.5 LReference

Oil capacity18.9 LReference

Max power88.5 kWReference

Power at rated engine speed85.7 kWReference

Max power73.2 kWReference

Transmission

18-speed power shiftReference

24-speed two-speed power shiftReference

TransmissionRange CommandReference

Typepower shiftReference

Gears18 forward and 6 reverseReference

Clutchelectro-hydraulic wet discReference

Six power shift gears (1-6) in three ranges (A, B, C) with power shuttle. Push-button control for gear and range shifts. Left-hand shuttle lever.Reference

TransmissionDual CommandReference

Typetwo-speed power shiftReference

Gears24 forward and 12 reverseReference

Four gears (1-4) in three ranges (A, B, C) with two-speed push-button power shift. Dual Command was available on the two-wheel drive TM135.Reference

PTO & Hydraulics

PTO (claimed)82.0 kWReference

PTO (tested)88.5 kWReference

Hydraulic system89.9 LReference

Typeclosed-center load sensing (CCLS)Reference

Capacity89.9 LReference

Pressure189.6 barReference

Rear valves4 (max)Reference

Mid valves4 (max)Reference

Pump flow106.0 lpmReference

Steering flow58.7 lpmReference

Rear TypeIIReference

Controlelectronic lower-link draft sensingReference

Rear lift5302 kgReference

Front HitchIIReference

Front lift3269 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type540/1000Reference

Rear PTO Type540/540E/1000Reference

Engine RPM540@1970Reference

Engine RPM540E@1546Reference

Engine RPM1000@2120Reference

Power at rated PTO speed88.0 kWReference

Capacities

Fuel219.5 LReference

Dimensions

2WD Wheelbase274 cmReference

4WD Wheelbase272 cmReference

SuperSteer Wheelbase288 cmReference

Terraglide Wheelbase278 cmReference

Weight10472 to 13515 poundsReference

Front tire480/70R-28Reference

Rear tire580/70R-38Reference

Standard tires (ag)Front: 480/70R-28. Rear: 580/70R-38Reference

2WD Length458 cmReference

4WD Length471 cmReference

Terraglide Length477 cmReference

SuperSteer Length487 cmReference

Width201 cmReference

Clearance (front axle)41 cmReference

Clearance (drawbar)25 cmReference

Front axle2WDReference

Front axle4WDReference

Front axleSuperSteer 4WDReference

Front axle0 mmReference

Flange rear axleReference

Bar rear axle2489 mmReference

Bar rear axle2844 mmReference

2WD Front tread154 to 218 cmReference

4WD Front tread155 to 226 cmReference

Rear tread152 to 223 cmReference

Rear tread152 to 230 cmReference

Rear tread154 to 255 cmReference

Rear tread154 to 290 cmReference

2WD Shipping4750 kgReference

4WD Shipping5150 kgReference

Operating6130 kgReference

New Holland TM135 attachments

front-end loaderReference

TM135 Serial Numbers

200013443BReference

2001155247BReference

2002173895BReference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps120Reference

Batteries2Reference

Battery CCA900Reference

Battery volts12Reference

New Holland TM135 Height

Cab288 cmReference

Cab299 cmReference

Exhaust302 cmReference

Test results

Diesel 18-speed 4WDMarch 2000 - June 2000, Link: OCED Tractor Test 1919 fileReference

PTO performanceReference

Fuel use27.3 l/hourReference

Fuel use28.0 l/hourReference

Fuel use27.6 l/hourReference

Drawbar performanceReference

Gear 2B used for power test.Reference

Max pull6066 kgReference

Gear 1A used for pull test.Reference

Speeds

With 580/70R-38 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
