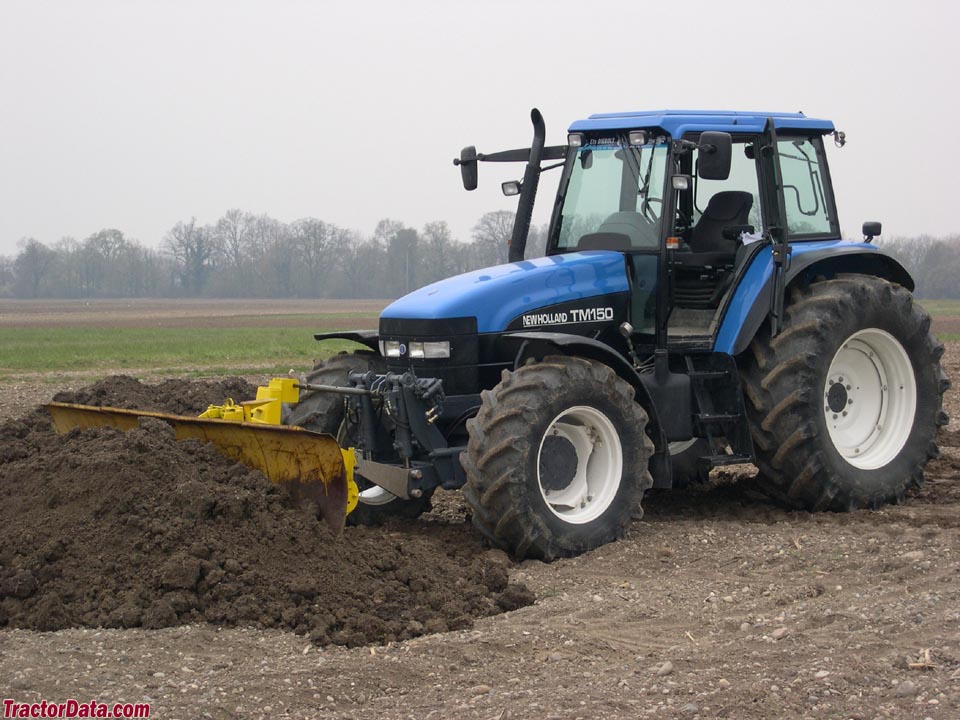

New Holland TM150
New Holland TM150 — TM Series · 124 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
124 hp
Max power
97.6 kW
Weight
10472 to 13960 pounds
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Row-Crop tractorReference
Built in Basildon, EnglandReference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard.Reference
Engine
New Holland 7.5L 6-cyl dieselReference
Engine111.9 kWReference
Drawbar (tested)78.3 kWReference
New HollandReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.5 LReference
Bore/Stroke112 x 127 mmReference
Power111.9 kWReference
Air cleanerdual dry elementReference
Compression17.5:1Reference
Rated RPM2200Reference
Operating RPM1500-2200Reference
Firing order1-5-3-6-2-4Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity26.0 LReference
Oil capacity18.9 LReference
Max power97.6 kWReference
Power at rated engine speed92.5 kWReference
Max power78.3 kWReference
Transmission
18-speed power shiftReference
18-speed full power shiftReference
TransmissionRange CommandReference
Typepower shiftReference
Gears18 forward and 6 reverseReference
Clutchelectro-hydraulic wet discReference
Six power shift gears (1-6) in three ranges (A, B, C) with power shuttle. Push-button control for gear and range shifts. Left-hand shuttle lever.Reference
TransmissionPower CommandReference
Typefull power shiftReference
Power Command adds automatic, programmable, shifting to the six-gear, three-range transmission.Reference
PTO & Hydraulics
PTO (claimed)89.5 kWReference
PTO (tested)97.6 kWReference
Hydraulic system100.3 LReference
Typeclosed-center load sensing (CCLS)Reference
Capacity100.3 LReference
Pressure189.6 barReference
Rear valves4 (max)Reference
Mid valves4 (max)Reference
Pump flow106.0 lpmReference
Steering flow58.7 lpmReference
Rear TypeIIReference
Controlelectronic lower-link draft sensingReference
Rear lift5302 kgReference
Front HitchIIReference
Front lift3269 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/1000Reference
Rear PTO Type540/540E/1000Reference
Engine RPM540@1970Reference
Engine RPM540E@1546Reference
Engine RPM1000@2120Reference
Power at rated PTO speed94.5 kWReference
Capacities
Fuel321.7 LReference
Dimensions
2WD Wheelbase274 cmReference
4WD Wheelbase272 cmReference
SuperSteer Wheelbase288 cmReference
Terraglide Wheelbase278 cmReference
Weight10472 to 13960 poundsReference
Front tire480/70R-28Reference
Rear tire580/70R-38Reference
Standard tires (ag)Front: 480/70R-28. Rear: 580/70R-38Reference
2WD Length458 cmReference
4WD Length471 cmReference
Terraglide Length477 cmReference
SuperSteer Length487 cmReference
Width201 cmReference
Clearance (front axle)41 cmReference
Clearance (drawbar)25 cmReference
Front axle2WDReference
Front axle4WDReference
Front axleSuperSteer 4WDReference
Front axle0 mmReference
Flange rear axleReference
Bar rear axle2489 mmReference
Bar rear axle2844 mmReference
2WD Front tread154 to 218 cmReference
4WD Front tread155 to 226 cmReference
Rear tread152 to 223 cmReference
Rear tread152 to 230 cmReference
Rear tread154 to 255 cmReference
Rear tread154 to 290 cmReference
2WD Shipping4750 kgReference
4WD Shipping5249 kgReference
Operating6332 kgReference
New Holland TM150 attachments
front-end loaderReference
TM150 Serial Numbers
200013443BReference
2001155247BReference
2002173895BReference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Batteries2Reference
Battery CCA900Reference
Battery volts12Reference
New Holland TM150 Height
Cab288 cmReference
Cab299 cmReference
Exhaust302 cmReference
Test results
Diesel 18-speed 4WDFebruary 2000 - April 2000, Link: OCED Tractor Test 1920 fileReference
PTO performanceReference
Fuel use28.0 l/hourReference
Fuel use30.3 l/hourReference
Fuel use29.9 l/hourReference
Drawbar performanceReference
Gear 2B used for power test.Reference
Max pull6545 kgReference
Gear 1A used for pull test.Reference
Speeds
With 580/70R-38 rear tires.Reference
