Tractor · 2000Unverified

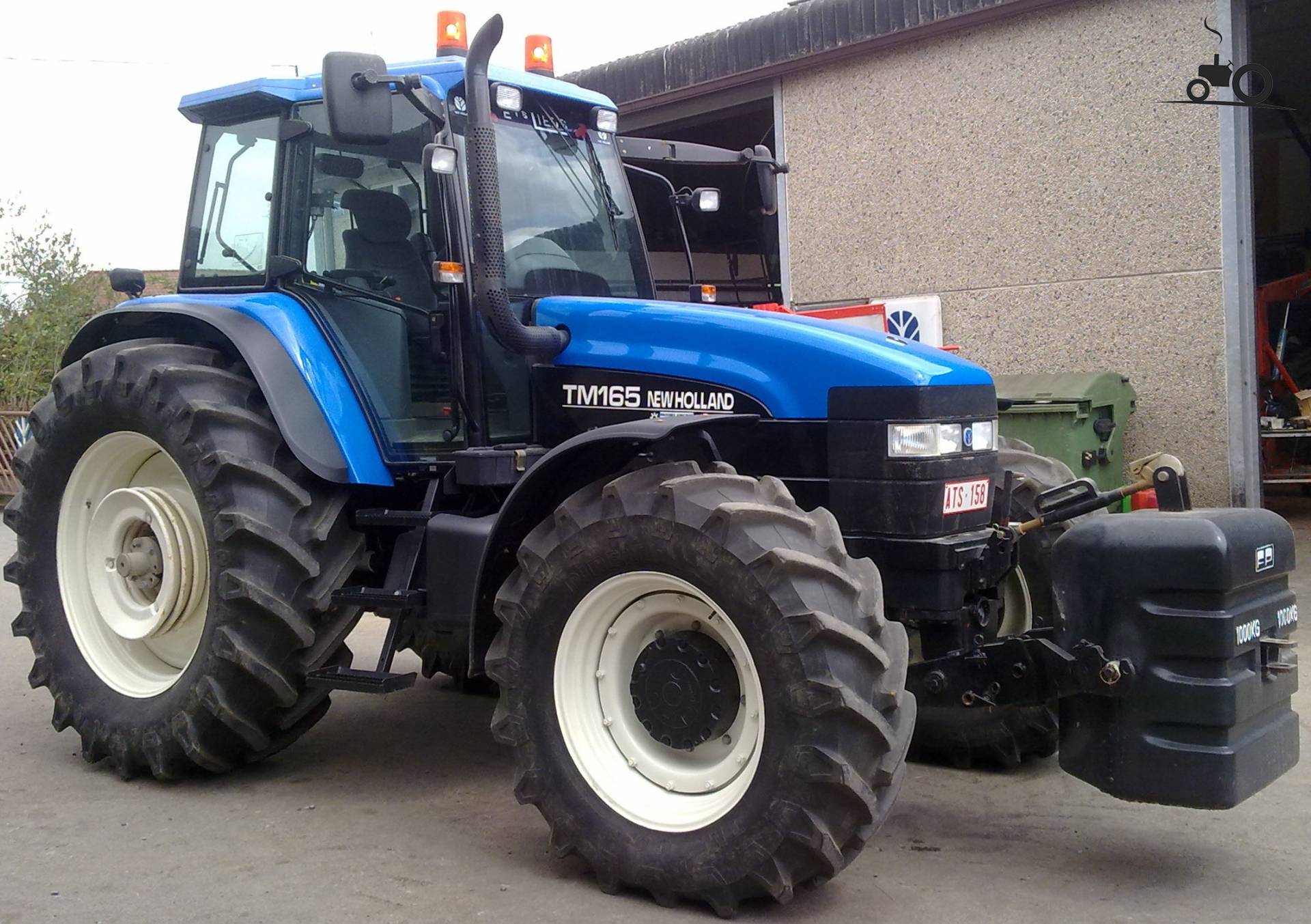

New Holland TM165
New Holland TM165 — TM Series · 144 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
144 hp
Max power
110.6 kW
Weight
11023 to 14455 pounds
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Row-Crop tractorReference
Built in Basildon, EnglandReference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard.Reference
Engine
New Holland 7.5L 6-cyl dieselReference
Engine123.0 kWReference
Drawbar (tested)93.2 kWReference
New HollandReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.5 LReference
Bore/Stroke112 x 127 mmReference
Power123.0 kWReference
Air cleanerdual dry elementReference
Compression17.5:1Reference
Rated RPM2300Reference
Operating RPM1500-2200Reference
Firing order1-5-3-6-2-4Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity26.0 LReference
Oil capacity18.9 LReference
Max power110.6 kWReference
Power at rated engine speed107.0 kWReference
Max power93.2 kWReference
Transmission
18-speed power shiftReference
18-speed full power shiftReference
TransmissionRange CommandReference
Typepower shiftReference
Gears18 forward and 6 reverseReference
Clutchelectro-hydraulic wet discReference
Six power shift gears (1-6) in three ranges (A, B, C) with power shuttle. Push-button control for gear and range shifts. Left-hand shuttle lever.Reference
TransmissionPower CommandReference
Typefull power shiftReference
Power Command adds automatic, programmable, shifting to the six-gear, three-range transmission.Reference
PTO & Hydraulics
PTO (claimed)100.7 kWReference
PTO (tested)110.6 kWReference
Hydraulic system100.3 LReference
Typeclosed-center load sensing (CCLS)Reference
Capacity100.3 LReference
Pressure189.6 barReference
Rear valves4 (max)Reference
Mid valves4 (max)Reference
Pump flow106.0 lpmReference
Steering flow62.1 lpmReference
Rear TypeIII/IIReference
Controlelectronic lower-link draft sensingReference
Rear lift5302 kgReference
Front HitchIIReference
Front lift3269 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/1000Reference
Rear PTO Type540/540E/1000Reference
Engine RPM540@1970Reference
Engine RPM540E@1546Reference
Engine RPM1000@2120Reference
Power at rated PTO speed110.2 kWReference
Capacities
Fuel321.7 LReference
Dimensions
2WD Wheelbase274 cmReference
4WD Wheelbase272 cmReference
SuperSteer Wheelbase288 cmReference
Terraglide Wheelbase278 cmReference
Weight11023 to 14455 poundsReference
Front tire480/70R-28Reference
Rear tire580/70R-38Reference
Standard tires (ag)Front: 480/70R-28. Rear: 580/70R-38Reference
2WD Length458 cmReference
4WD Length471 cmReference
Terraglide Length477 cmReference
SuperSteer Length487 cmReference
Width201 cmReference
Clearance (front axle)41 cmReference
Clearance (drawbar)25 cmReference
Front axle2WDReference
Front axle4WDReference
Front axleSuperSteer 4WDReference
Front axle0 mmReference
Flange rear axleReference
Bar rear axle2489 mmReference
Bar rear axle2844 mmReference
2WD Front tread154 to 218 cmReference
4WD Front tread155 to 226 cmReference
Rear tread152 to 223 cmReference
Rear tread152 to 230 cmReference
Rear tread154 to 255 cmReference
Rear tread154 to 290 cmReference
2WD Shipping5000 kgReference
4WD Shipping5499 kgReference
Operating6556 kgReference
New Holland TM165 attachments
front-end loaderReference
TM165 Serial Numbers
200013443BReference
2001155247BReference
2002173895BReference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Batteries2Reference
Battery CCA900Reference
Battery volts12Reference
New Holland TM165 Height
Cab288 cmReference
Cab299 cmReference
Exhaust302 cmReference
Test results
Diesel 18-speed 4WDFebruary 2000 - April 2000, Link: OCED Tractor Test 1909 fileReference
PTO performanceReference
Fuel use34.8 l/hourReference
Fuel use35.2 l/hourReference
Fuel use0.4 l/hourReference
Drawbar performanceReference
Fuel use35.6 l/hourReference
Gear 3B used for power test.Reference
Max pull6629 kgReference
Gear 1A used for pull test.Reference
Speeds
With 580/70R-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
