Tractor · 2002Unverified

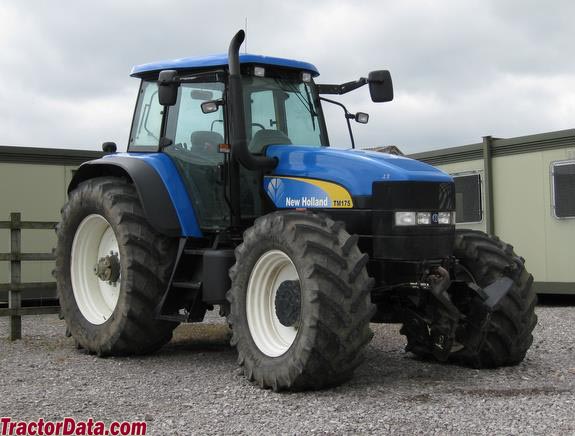

New Holland TM175

Name: New Holland TM175
Brand: New Holland

New Holland TM175 — TM Series · 151 hp. Reference specifications; pending source verification.

The New Holland TM175 is a tractor model with a rated power of 151 hp, categorising it at the more powerful end of its class. It was produced from 2002 to 2007. The tractor features a 6-cylinder turbocharged diesel liquid-cooled engine, paired with a four-wheel drive system and a powershift transmission. Its operating weight ranges from 15360 to 15795 pounds.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

151 hp

Max power

119.9 kW

Weight

15360 to 15795 pounds

Catalogue coverage

Variants represented

Richest spec table

95 rows

Recorded power

151 hp

Transmissions

19-speed full power shift

Production years

2002-2007

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Row-Crop tractorReference

Built in Basildon, EnglandReference

Four-wheel driveReference

Differential lockelectro-hydraulicReference

Power steeringReference

Differential hydraulic wet disc brakesReference

Cab standard with heat and air-conditioning. Optional heated air-ride seat.Reference

Variants

MXM175similar CaseIH modelReference

Engine

CNH 7.5L 6-cyl dieselReference

Engine130.5 kWReference

Drawbar (tested)92.2 kWReference

CNH GenesisReference

turbocharged dieselReference

6-cylinderReference

liquid-cooled inlineReference

Displacement7.5 LReference

Bore/Stroke112 x 127 mmReference

Power130.5 kWReference

Air cleanerdual paper elements with aspiratorReference

Compression17.0:1Reference

Rated RPM2200Reference

Idle RPM800-2375Reference

Torque RPM1400Reference

Firing order1-5-3-6-2-4Reference

Starter volts12Reference

Oil capacity18.9 LReference

Coolant capacity26.1 LReference

Max power119.9 kWReference

Power at rated engine speed112.8 kWReference

Max power92.2 kWReference

Transmission

19-speed full power shiftReference

TransmissionPower CommandReference

Typefull power shiftReference

Gears19 forward and 6 reverseReference

Clutchelectro-hydraulic wet discReference

Push-button power shift with power shuttle. Available in 30 KPH (18-speed) and 40 KPH (19-speed versions). Optional creeper range provides an addition 10 forward and 6 reverse gears.Reference

PTO & Hydraulics

PTO (claimed)108.1 kWReference

PTO (tested)119.9 kWReference

Hydraulic system99.9 LReference

Typeclosed center load sensing (CCLS)Reference

Capacity99.9 LReference

Pressure189.6 barReference

Rear valves4Reference

Mid valves2 to 4Reference

Pump flow120.0 lpmReference

Total flow184.3 lpmReference

Steering flow64.3 lpmReference

Rear TypeII/IIINReference

Controlelectronic lower-link draft controlReference

Rear lift (at ends)7938 kgReference

Front HitchIIReference

Front lift3269 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type540/1000Reference

Power at rated PTO speed115.0 kWReference

Capacities

Fuel397.8 LReference

Max capacity11999 kgReference

Dimensions

Wheelbase281 cmReference

Weight15360 to 15795 poundsReference

Front tire14.9R30Reference

Rear tire20.8R42Reference

Standard tires (ag)Front: 14.9R30. Rear: 20.8R42Reference

Length481 cmReference

Width201 cmReference

Height288 cmReference

Ground clearance45 cmReference

Front axle4WDReference

Front axleSuperSteer 4WDReference

Front axleTerraGlide suspensionReference

Bar rear axle2489 mmReference

Bar rear axle2844 mmReference

Bar rear axle3022 mmReference

2WD Front tread154 to 225 cmReference

4WD Front tread155 to 226 cmReference

Rear tread152 to 243 cmReference

Rear tread152 to 254 cmReference

Rear tread152 to 299 cmReference

Shipping6967 kgReference

Operating7164 kgReference

Max front axle5199 kgReference

Max rear axle9499 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps120Reference

Battery CCA1300Reference

Battery volts12Reference

Test results

Diesel 19-speed 4WDSeptember 1, 2003 - April 1, 2004Link: OCED Tractor Test 2142 fileReference

PTO performanceReference

Fuel use34.1 l/hourReference

Fuel use36.0 l/hourReference

Fuel use35.6 l/hourReference

Drawbar performanceReference

Gear 9 used for power test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
