Tractor · 2002Unverified

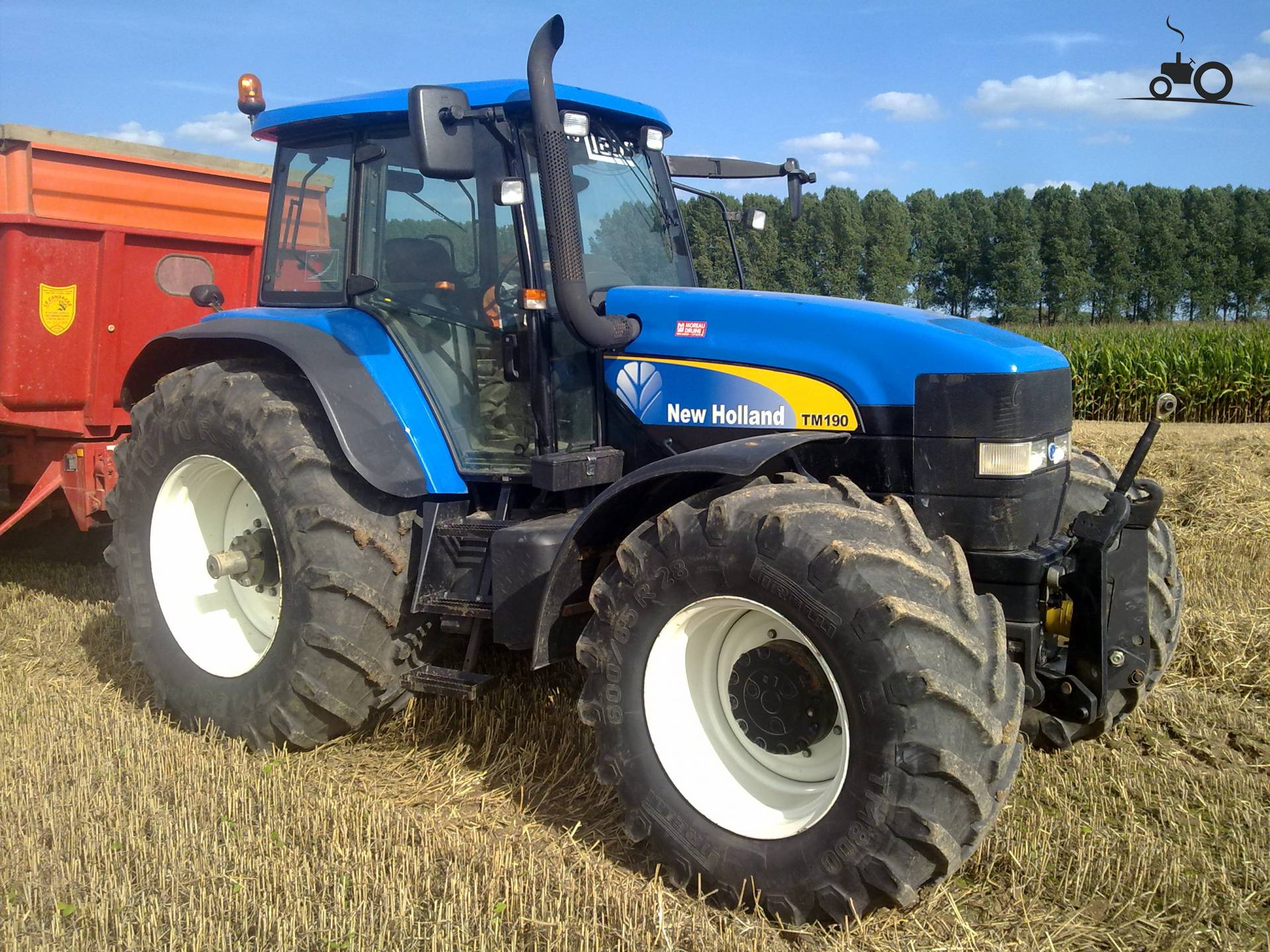

New Holland TM190
New Holland TM190 — TM Series · 164 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
164 hp
Max power
128.3 kW
Weight
15360 to 17470 pounds
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Row-Crop tractorReference
Built in Basildon, EnglandReference
Four-wheel driveReference
Differential lockelectro-hydraulicReference
Power steeringReference
Differential hydraulic wet disc brakesReference
Cab standard with heat and air-conditioning. Optional heated air-ride seat.Reference
Variants
MXM190similar CaseIH modelReference
Engine
CNH 7.5L 6-cyl dieselReference
Engine141.7 kWReference
Drawbar (tested)102.6 kWReference
CNH GenesisReference
turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement7.5 LReference
Bore/Stroke112 x 127 mmReference
Power141.7 kWReference
Air cleanerdual paper elements with aspiratorReference
Compression17.0:1Reference
Rated RPM2200Reference
Idle RPM800-2375Reference
Torque RPM1400Reference
Firing order1-5-3-6-2-4Reference
Starter volts12Reference
Oil capacity18.9 LReference
Coolant capacity26.1 LReference
Max power128.3 kWReference
Power at rated engine speed122.0 kWReference
Max power102.6 kWReference
Transmission
19-speed full power shiftReference
TransmissionPower CommandReference
Typefull power shiftReference
Gears19 forward and 6 reverseReference
Clutchelectro-hydraulic wet discReference
Push-button power shift with power shuttle. Available in 30 KPH (18-speed) and 40 KPH (19-speed versions). Optional creeper range provides an addition 10 forward and 6 reverse gears.Reference
PTO & Hydraulics
PTO (claimed)119.3 kWReference
PTO (tested)128.3 kWReference
Hydraulic system99.9 LReference
Typeclosed center load sensing (CCLS)Reference
Capacity99.9 LReference
Pressure189.6 barReference
Rear valves4Reference
Mid valves2 to 4Reference
Pump flow120.0 lpmReference
Total flow184.3 lpmReference
Steering flow64.3 lpmReference
Rear TypeII/IIINReference
Controlelectronic lower-link draft controlReference
Rear lift (at ends)7938 kgReference
Front HitchIIReference
Front lift3269 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/1000Reference
Power at rated PTO speed124.8 kWReference
Capacities
Fuel397.8 LReference
Max capacity11999 kgReference
Dimensions
Wheelbase281 cmReference
Weight15360 to 17470 poundsReference
Front tire14.9R30Reference
Rear tire20.8R42Reference
Standard tires (ag)Front: 14.9R30. Rear: 20.8R42Reference
Length481 cmReference
Width201 cmReference
Height288 cmReference
Ground clearance45 cmReference
Front axle4WDReference
Front axleSuperSteer 4WDReference
Front axleTerraGlide suspensionReference
Bar rear axle2489 mmReference
Bar rear axle2844 mmReference
Bar rear axle3022 mmReference
2WD Front tread154 to 225 cmReference
4WD Front tread155 to 226 cmReference
Rear tread152 to 243 cmReference
Rear tread152 to 254 cmReference
Rear tread152 to 299 cmReference
Shipping6967 kgReference
Operating7924 kgReference
Max front axle5199 kgReference
Max rear axle9499 kgReference
TM190 Serial Numbers
Location:Serial number decal on the right side of the radiator support column.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Battery CCA1300Reference
Battery volts12Reference
Test results
Diesel 19-speed 4WDNovember 1, 2003 - April 1, 2004Link: OCED Tractor Test 2144 fileReference
PTO performanceReference
Fuel use36.7 l/hourReference
Fuel use38.2 l/hourReference
Fuel use38.6 l/hourReference
Drawbar performanceReference
Fuel use39.4 l/hourReference
Gear 9 used for power test.Reference
Max pull7922 kgReference
Gear 2 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
